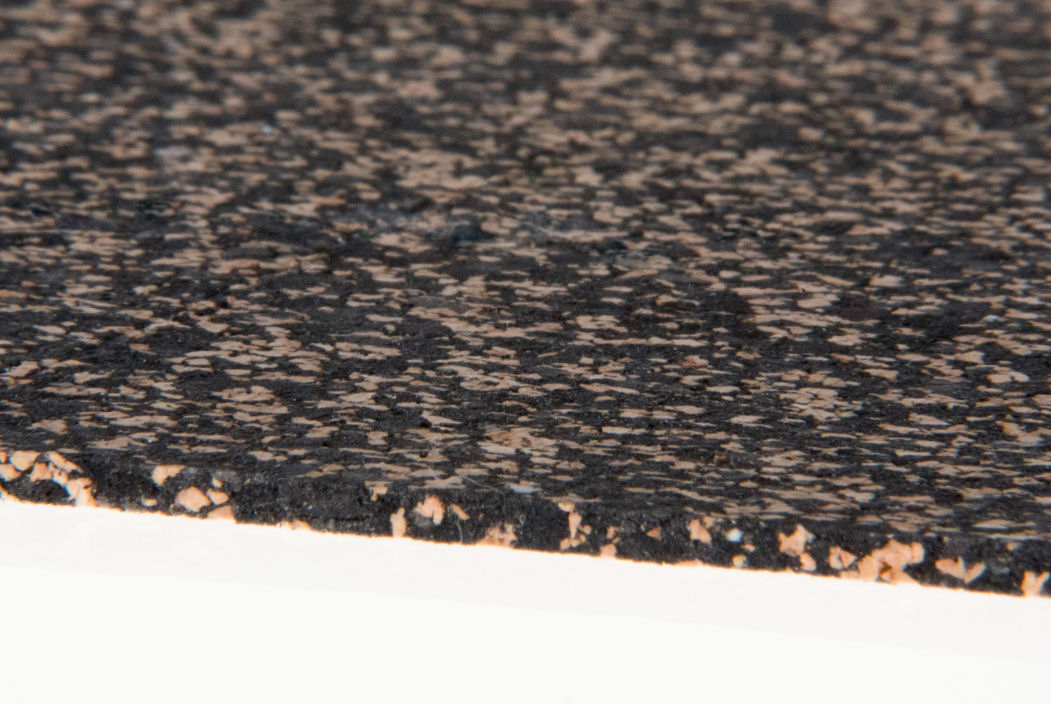

ProBase® Vinyl
Specifically Designed For Use Under Both Dry Back And Glue Down LVP/LVT, Sheet Vinyl, Carpet And Carpet Tile Flooring.
ProBase Vinyl contains zero rubber so plasticize migration will not occur and is made entirely of polyurethane foam and cork. ProBase Vinyl is age resistant for decades for durability under point loads and at only 3mm but will add excellent acoustic improvement to the floor assembly.
ProBase Vinyl Benefits
- Offers long term performance without collapse or bottoming out
- Suitable for both new construction & renovations
- Quick & Easy installation
- Resistant to aging & deformation

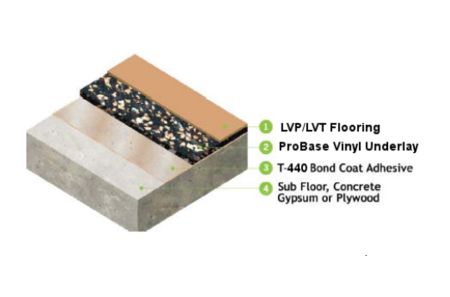

Installation Layer Details
Specifications:
| Material: | Polyurethane foam/cork |
| Roll Size: | 39" x 65' x 6" (213 sq ft roll) |
| Thickness: | 3mm |
| Weight Per Roll: | 65lbs |
| Density: (ASTM D-792) | 45 lbs./ cubic ft |
| Hardness A Shore Durometer: | 54-64 |
| Temperature Resistance: | -40 -- 110 C |
| Sound Reduction: | ∆IIC 22 |
Downloads
Acoustic Test Reports
- ProBase Vinyl 3mm 6 Inch Slab IIC - 50 (238.6 KiB)
- ProBase Vinyl 3mm 6 Inch Slab STC - 52 (244.2 KiB)
- ProBase Vinyl 3mm 6 Inch Slab ΔIIC - 22 (434.1 KiB)
- ProBase Vinyl 3mm 8 Inch Slab IIC - 53 (242.1 KiB)
- ProBase Vinyl 3mm 8 Inch Slab STC - 50 (243.8 KiB)
- ProBase Vinyl 3mm 8 Inch Slab ΔIIC - 26 (435.1 KiB)
