Acoustical Wall Panels

Sound Seal Acoustical Wall Panels are your solution for areas that require noise reduction and are available in a variety of models for various applications. Choose the size and style best suited for your application.

Features:

  • Excellent acoustical performance
  • Highly customizable
  • Class A fire rated per ASTM E-84

Available Colors:

Our panels can be manufactured in any of the many attractive acoustic fabrics offered in the industry, including but not limited to premium fabrics offered by Guilford of Maine, Designtex, and Maharam. We can also use any factory tested and approved C.O.M. fabric.

Productivity Icon

Applications

Our Acoustical Wall Panels are the solution for areas that require noise reduction and are available in a variety of models for various applications. Choose the size and style best suited for your application.

Sizing Icon

Sizing

Our Acoustical panels are available in a variety of standard and custom sizes. Review your options below or reach out to our sales team for a consultation.

Easy Install Icon

Easy Install

Most panels can be installed using one of three mounting methods: Rotofast Snap-on anchors, Impaling clips or 2-part mechanical clips.

Contain Noise Icon

Acoustical Performance

Our Acoustical Wall Panels can offer up to an NRC of 1.05, helping improve interior acoustics while improving the aesthetics of your space.

Available Acoustical Wall Panels

acoustical soundproofing wall panel

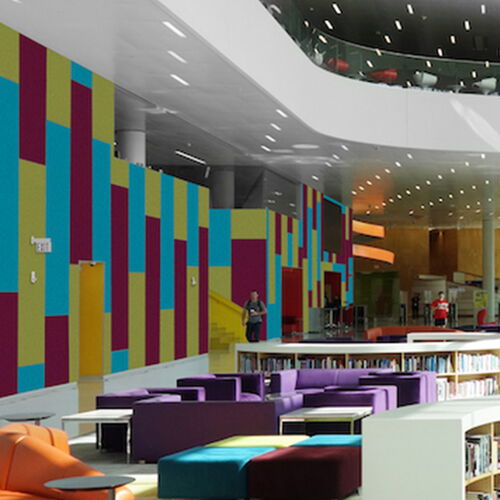

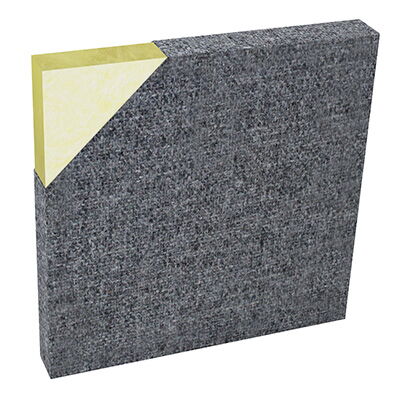

S-2000 Acoustical Wall Panel
acoustical soundproofing wall panel

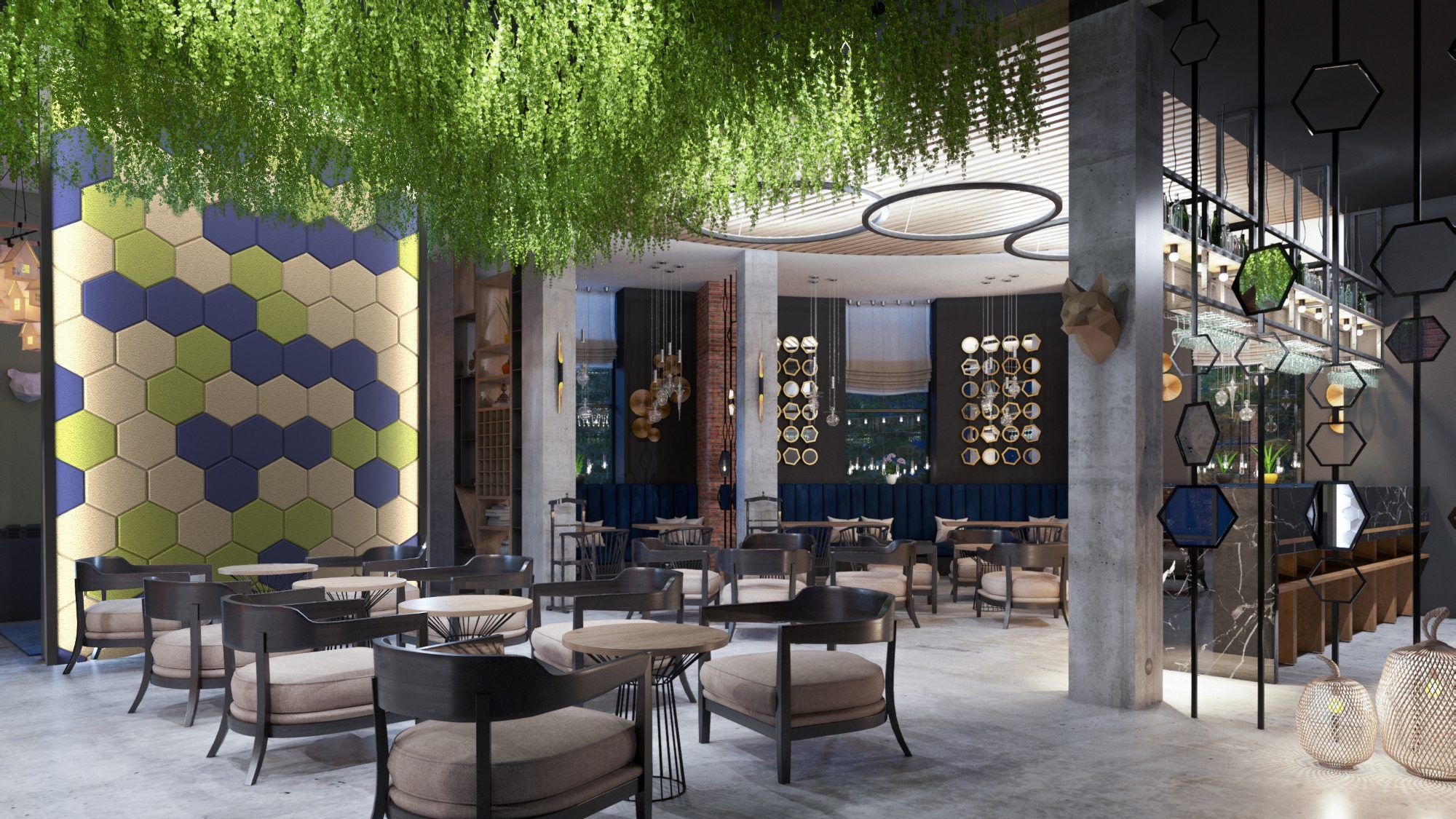

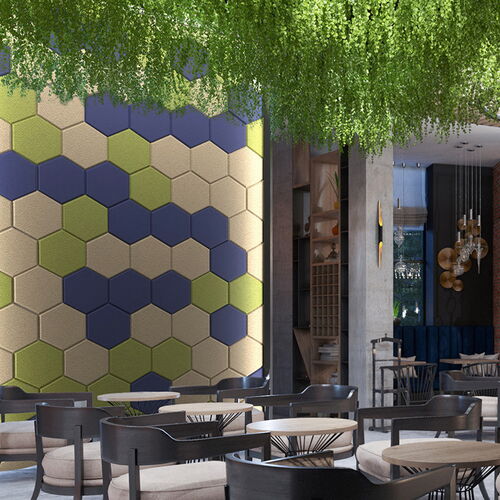

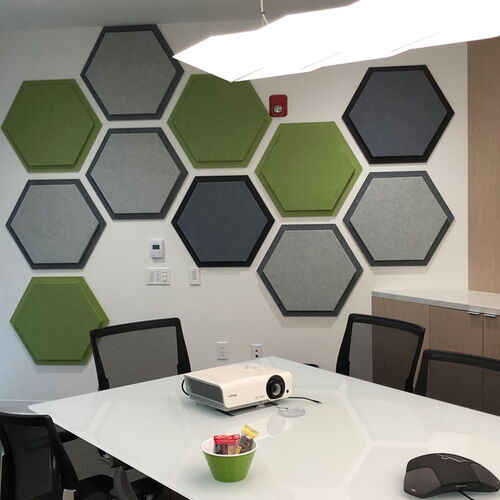

Hexagon Acoustical Wall Panel

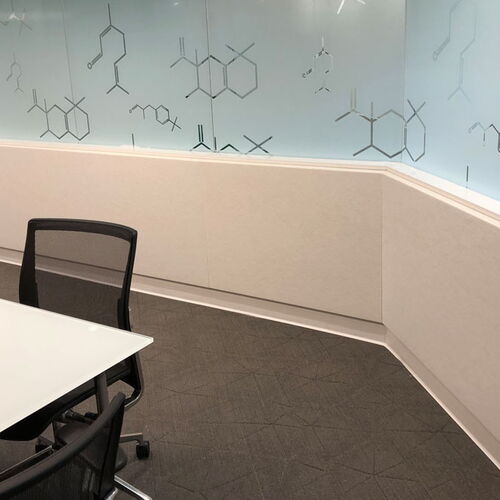

acoustical soundproofing wall panel
Acoustical Wall Panel For Offices

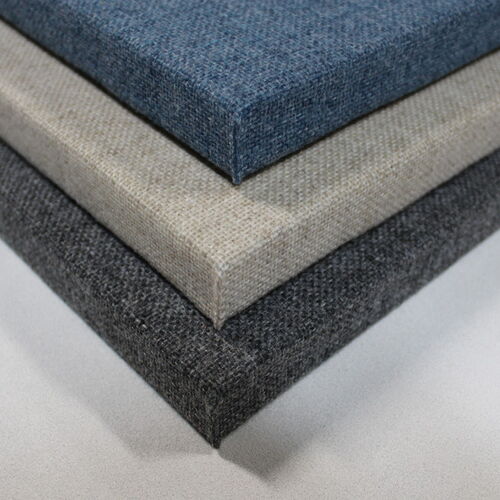

Acoustical Wall Panel fabrics
S-2000 Acoustical Wall Panel Fabrics

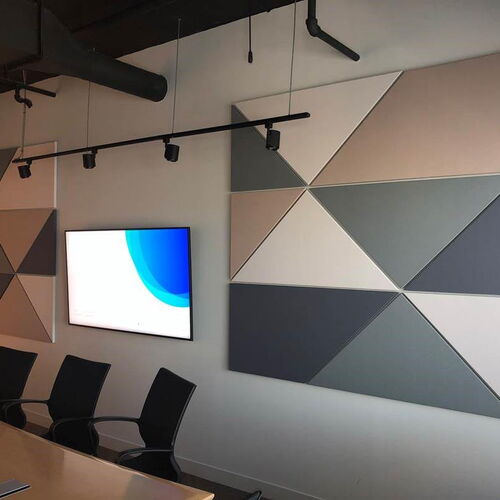

Acoustical Wall Panel custom
Custom Shaped Wall Panels

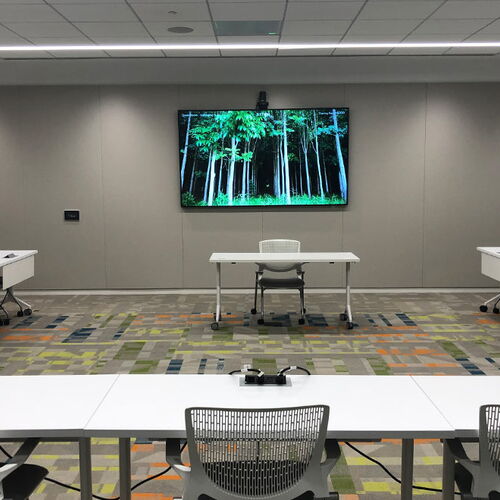

Soundproof Conference Room
Training Rooms

S-2000 Standard Panels

  • High-quality, economical, multi-purpose panels that are customizable.
  • NRC rating: .75 - 1.00
  • Fire Rating: Class A per ASTM E-84
  • ½” to 4” thicknesses | Standard sizes up to 4’ x 10’
  • Square, Bevel, Radius or Miter edge
  • Mounting options: Rotofast Snap-on anchors, Impaling clips or 2-part mechanical clips

Data Sheet S-2000 Standard Panels Info

high impact acoustical wall panel

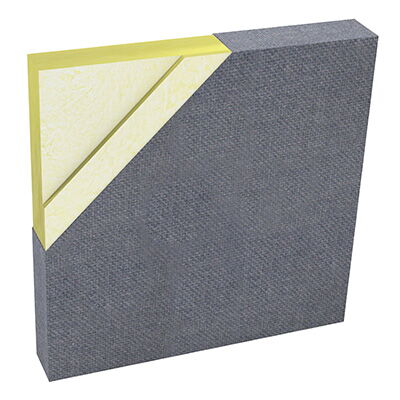

S-2100 High Impact Acoustical Wall Panel

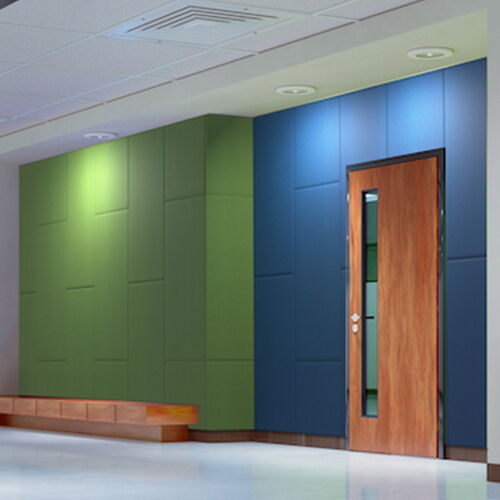

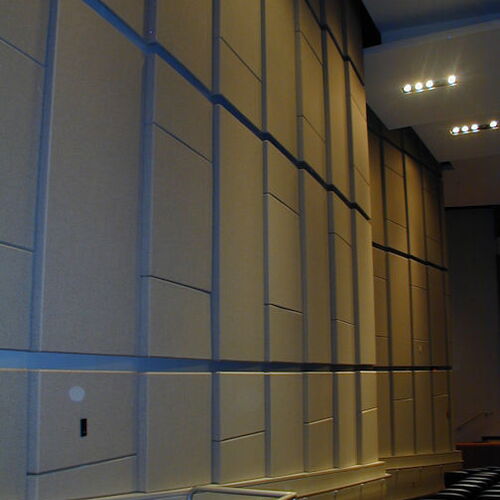

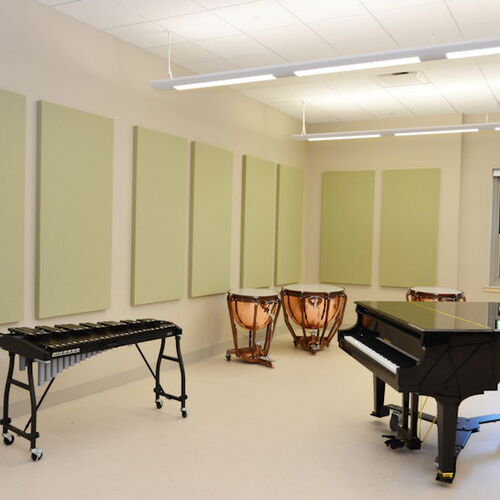

acoustical wall panel installed
S-2100 Application
acoustical wall panel fabrics
Acoustical Wall Panel Fabrics

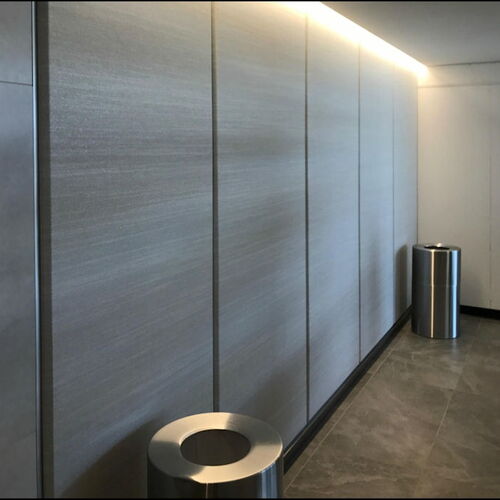

acoustical wall panel installed
S-2100 Application
acoustical wall panel installed
S-2100 Application

S-2100 High Impact Panels

  • Ideal for environments that need superior acoustics and resilience.
  • NRC rating: .80 – 1.05
  • Fire Rating: Class A per ASTM E-84
  • 5/8" to 4-1/8" thicknesses | Standard sizes up to 4’ x 10’
  • Square, Bevel, Radius or Miter edge
  • Mounting options: Rotofast Snap-on anchors, Impaling clips or 2-part mechanical clips

Data Sheet S-2100 High Impact Panels Info

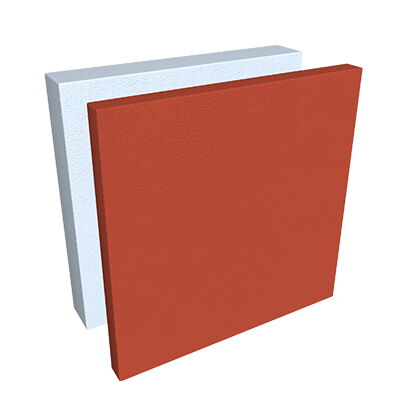

acoustic paintable panels
acoustic paintable panels

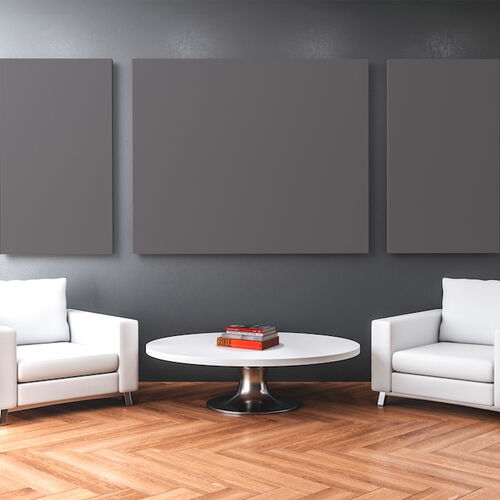

chroma paintable acoustical panels
chroma paintable acoustical panels
chroma paintable acoustical panels

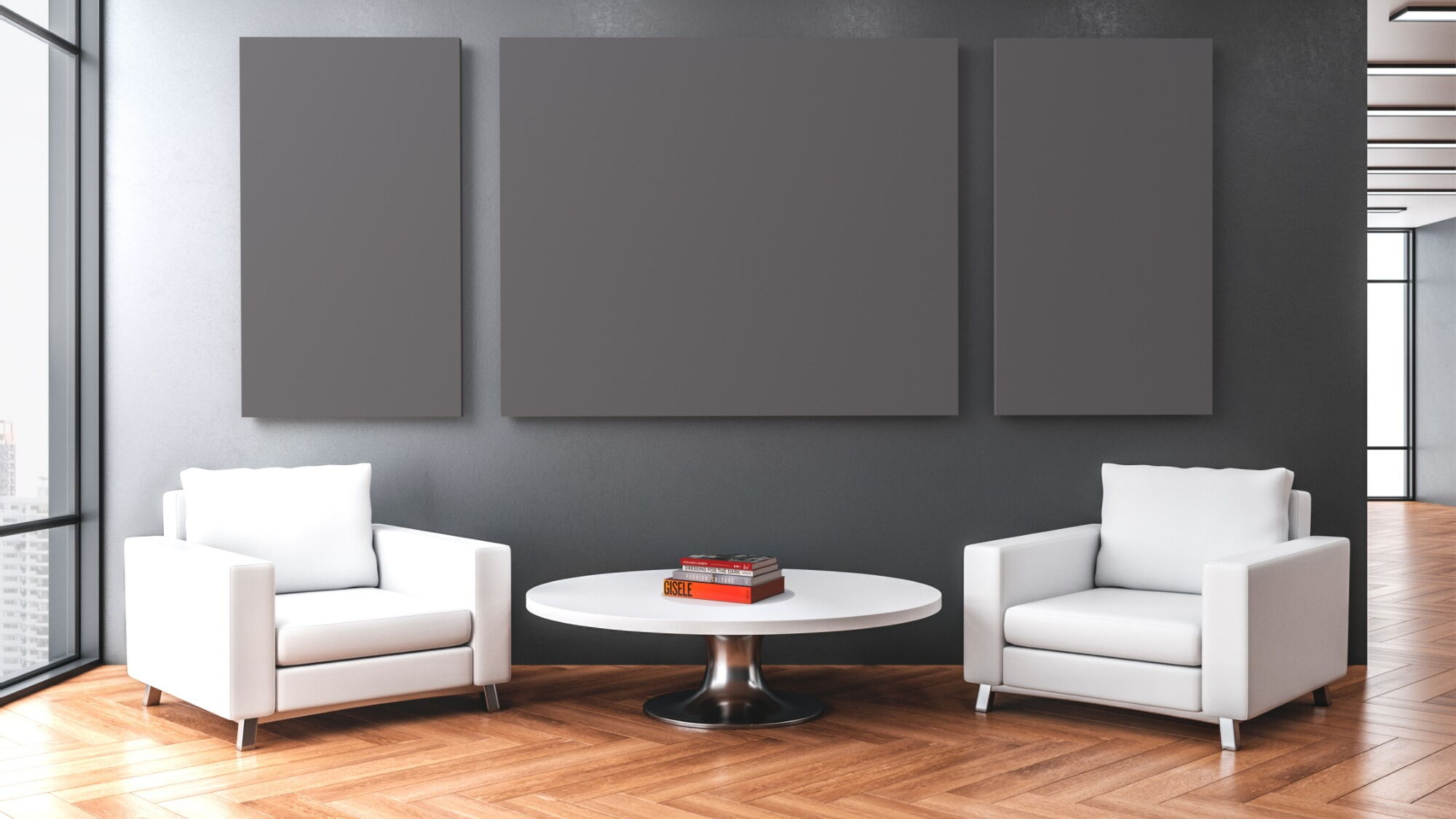

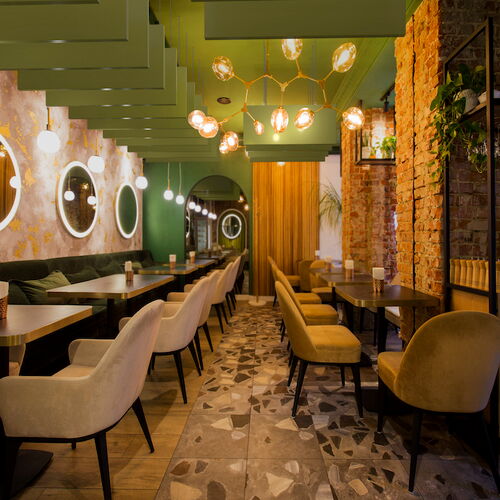

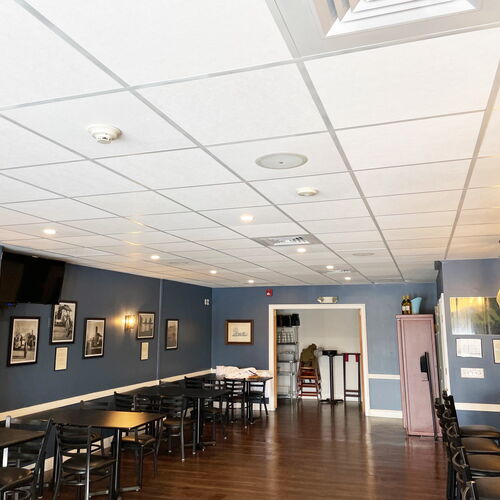

Chroma® Paintable Panels

  • Features a transparent, paintable finish that blends in with drywall.
  • NRC rating: .75 - 1.00
  • Fire Rating: Class A per ASTM E-84
  • 1” or 2” thickness | Standard sizes up to 4’ x 10’
  • Square edge detail
  • Mounting options: Rotofast Snap-on anchors, Impaling clips or 2-part mechanical clips

Data Sheet Chroma® Paintable Panels Info

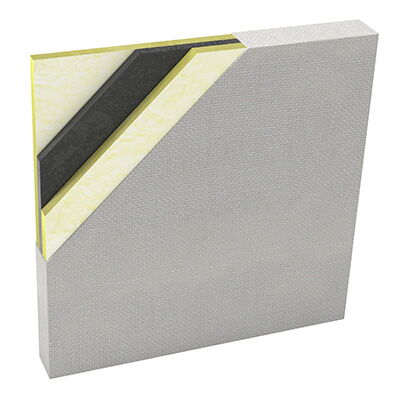

sound barrier acoustical wall panel

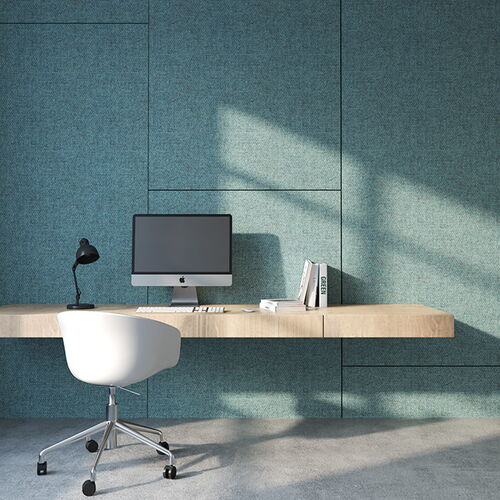

S-2500 Sound Barrier Acoustical Wall Panel
acoustical wall panel fabrics
Acoustical Wall Panel Fabrics

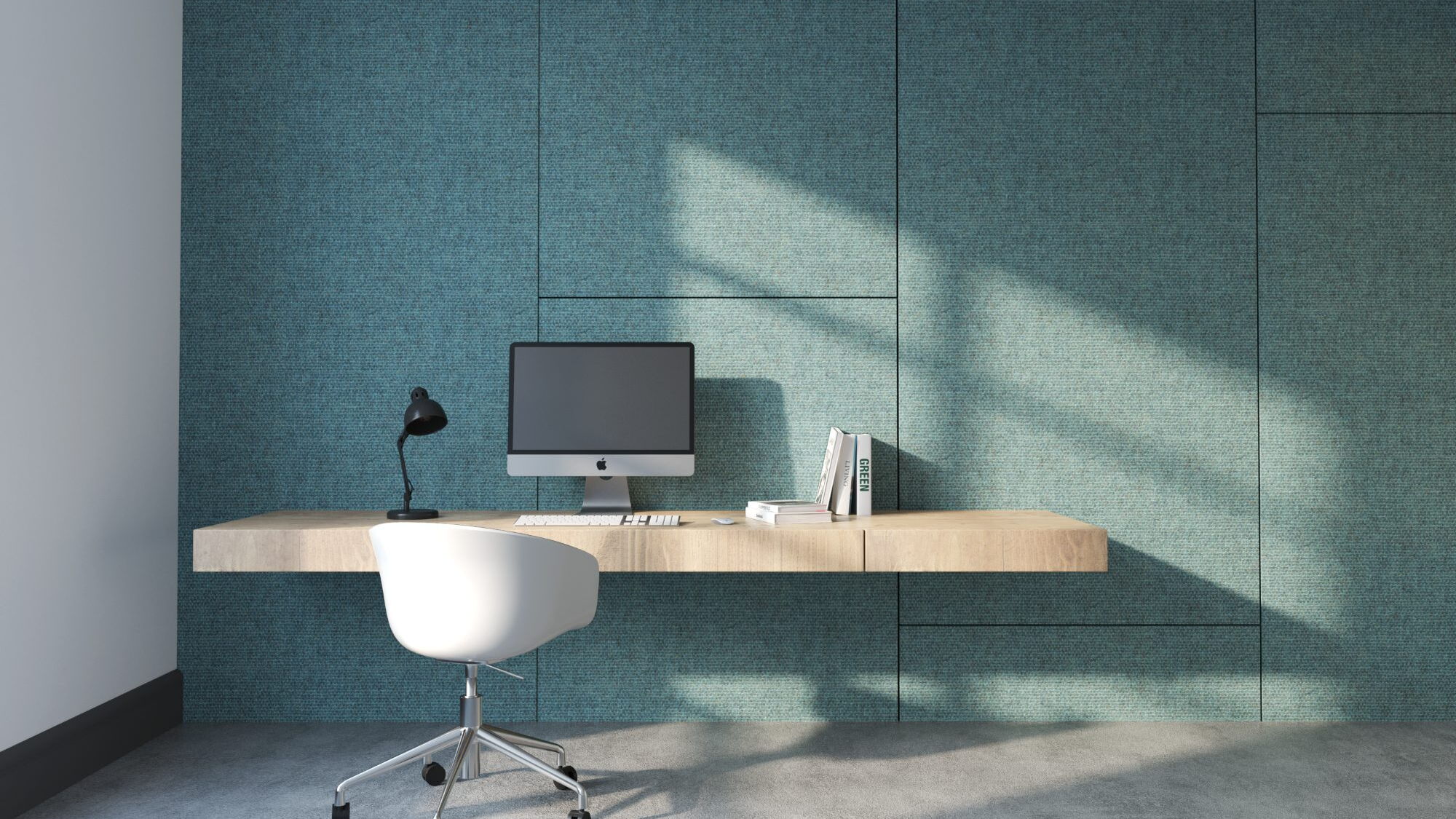

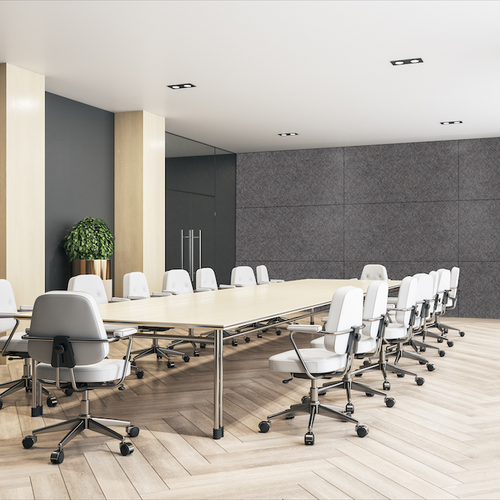

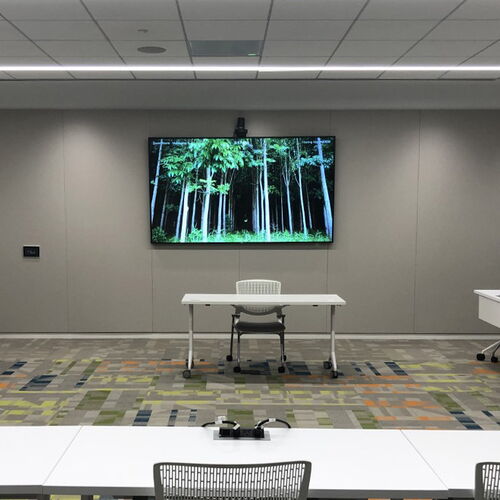

S-2500 Sound Barrier Panels

  • The addition of a mass loaded vinyl septum makes this NRC and STC rated.
  • NRC rating: .80 | STC: 25
  • Fire Rating: Class A per ASTM E-84
  • 1-1/8" & 2-1/8" thicknesses | Standard sizes up to 4’ x 10’
  • Square, Bevel, Radius or Miter edge
  • Mounting Options: Rotofast Snap-on anchors, Impaling clips or 2-part mechanical clips

Data Sheet S-2500 Sound Barrier Panels Info

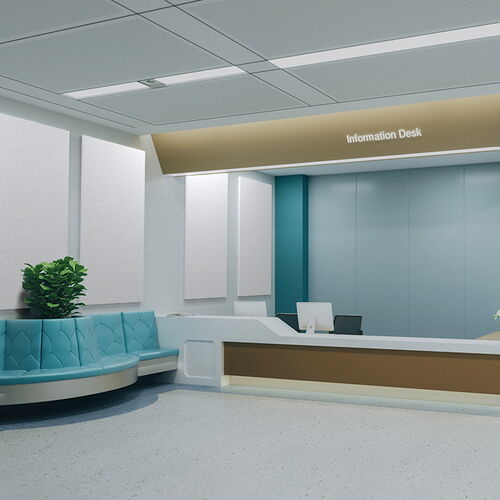

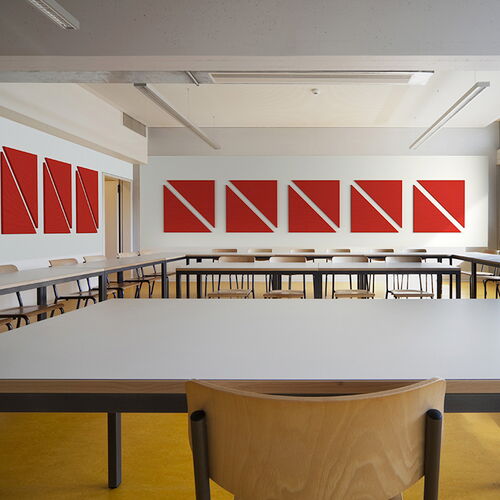

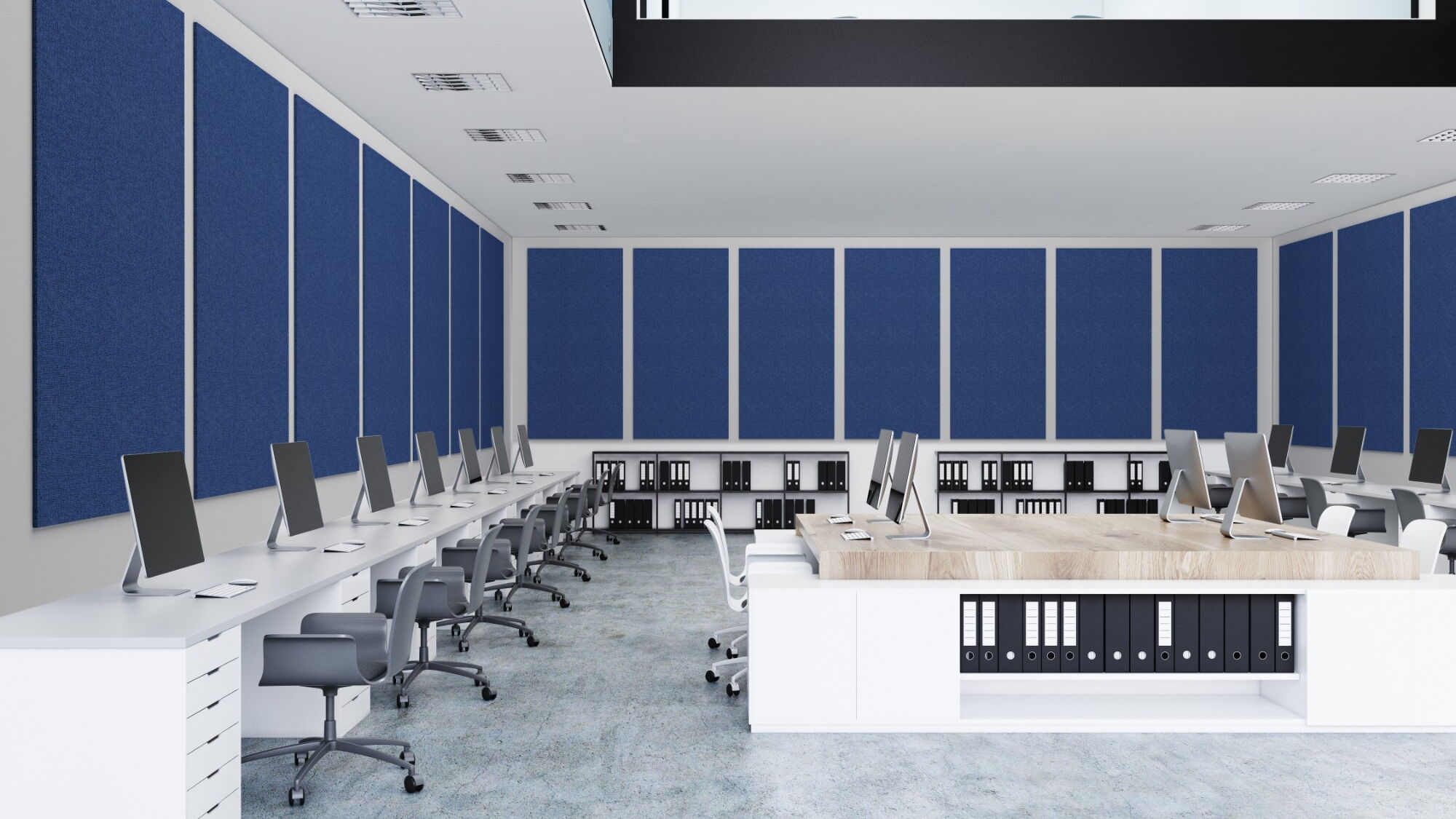

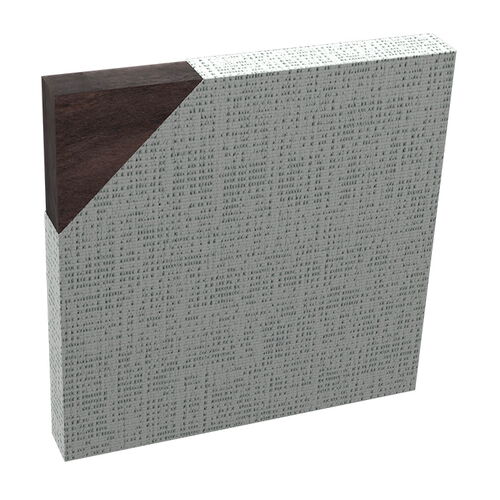

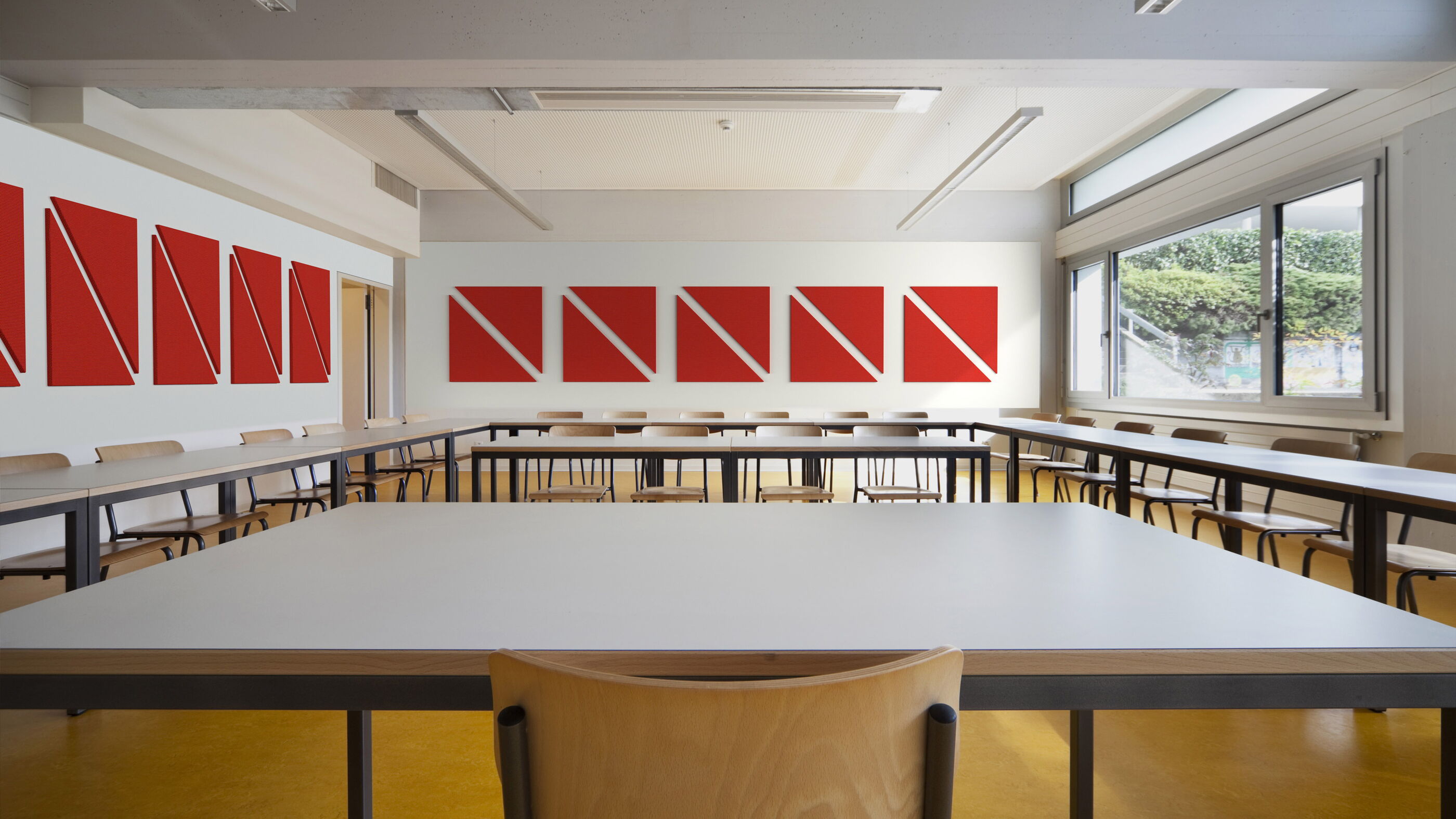

BioCore™

  • Manufactured with ECOSE® Technology & 60% recycled content.
  • NRC rating .75
  • Fire Rating: Class A per ASTM E-84
  • 1” thickness | Standard sizes up to 4’ x 10’
  • Square, Bevel, Radius or Miter edge
  • Mounting options: Rotofast Snap-on anchors, Impaling clips or 2-part mechanical clips

Data Sheet BioCore™ Info

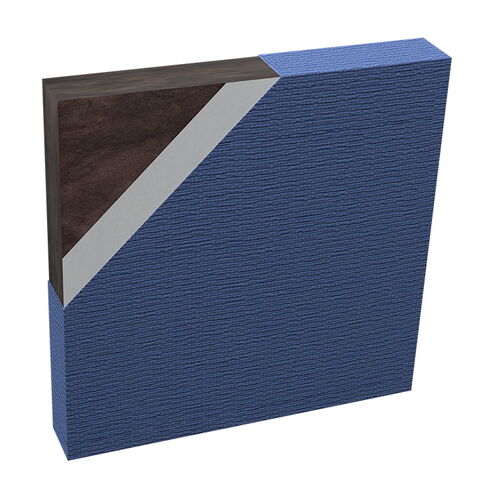

BioCore™ High Impact

  • Includes an additional 1/8" thick high-density layer for tackability.
  • NRC rating .85
  • Fire Rating: Class A per ASTM E-84
  • 1 1/8” thickness | Standard sizes up to 4’ x 10’
  • Square, Bevel, Radius or Miter edge
  • Mounting options: Rotofast Snap-on anchors, Impaling clips or 2-part mechanical clips

Data Sheet BioCore™ High Impact Info

restaurant acoustical wall panels

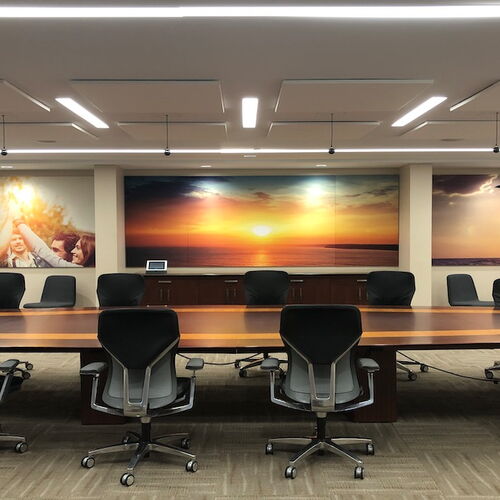

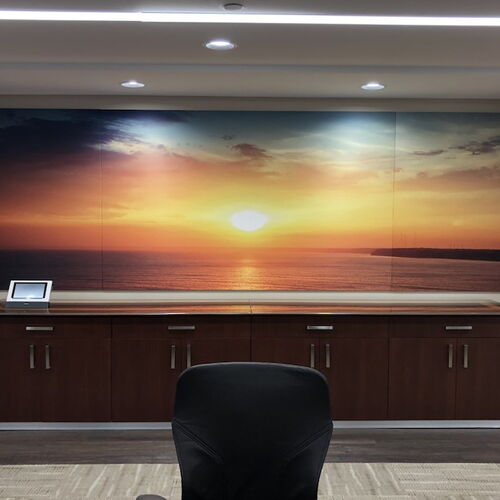

Custom Art Acoustic Panel
Inspire Art Panel
Custom Art Acoustic Panel

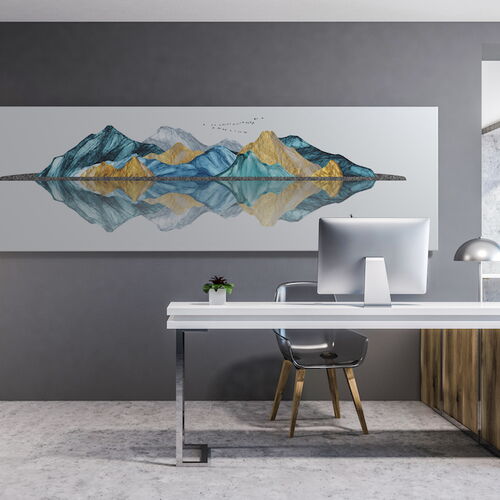

Inspire Art in Office

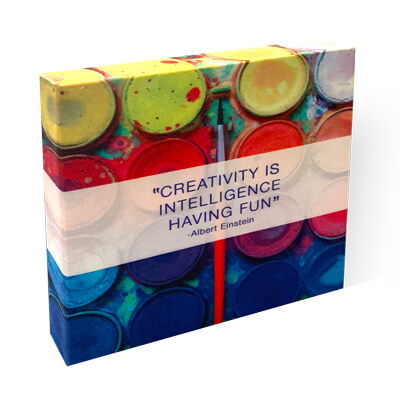

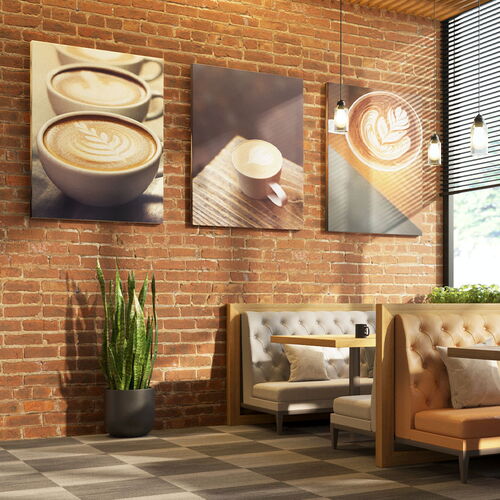

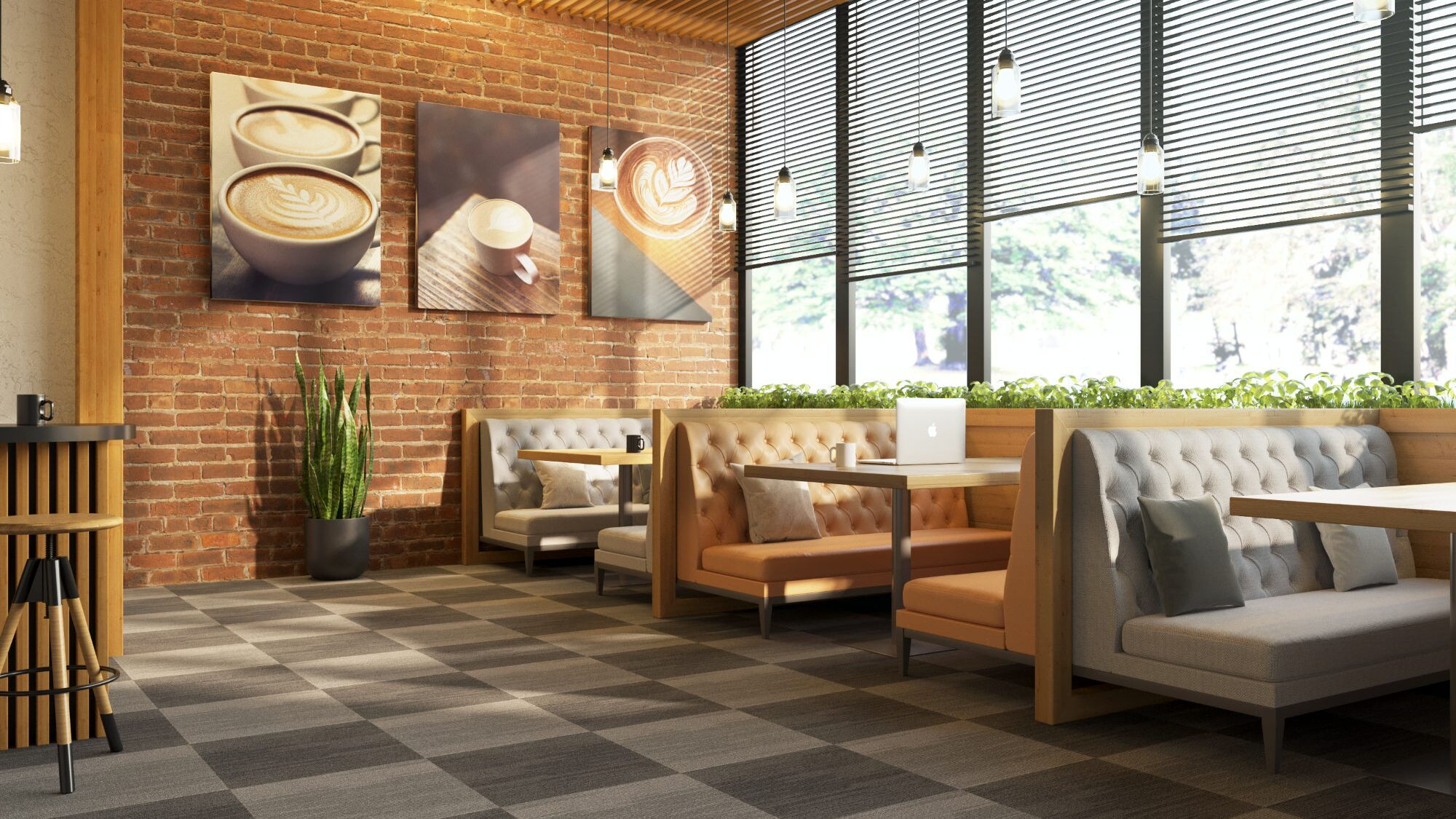

Inspire Art Printed Panels

  • Add your logo or custom art on these premium acoustic panels.
  • NRC rating .75
  • 1/2", 1" or 2" thickness | Maximum size of 4’ X 10’
  • Square, Bevel, Radius or Miter edge
  • Mounting options: Rotofast Snap-on anchors, Impaling clips or 2-part mechanical clips

Data Sheet Inspire Art Printed Panels Info

acoustic reflective wall panel

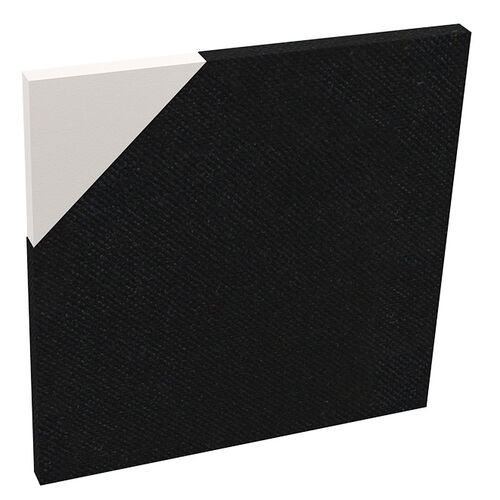

S-3000 Acoustical Wall Panel
soundproof panel fabrics

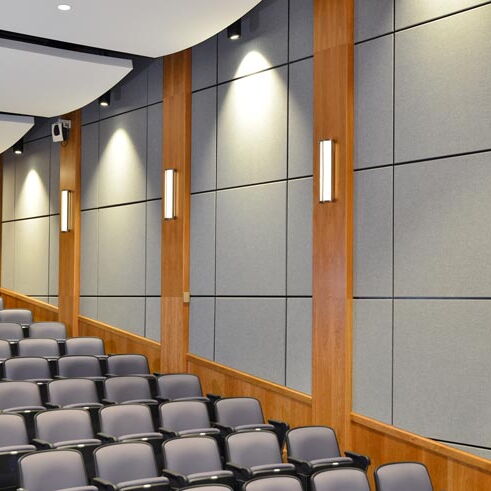

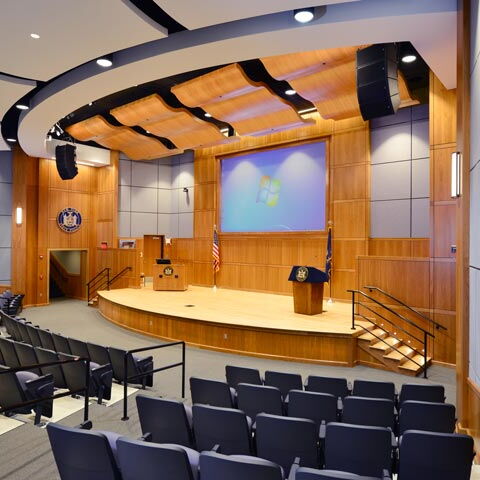

S-3000 at NY State Police Academy
soundproof panel fabrics
S-3000 at NY State Police Academy
soundproof panel fabrics
Acoustical Wall Panel Fabrics

S-3000 Reflective Panels

  • Ideal for auditoriums, concert halls and houses of worship.
  • Fire Rating: Class A per ASTM E-84
  • 12mm & 19mm thicknesses | Standard sizes up to 4’ x 10’
  • Square edge detail
  • Mounting option: Nail clips & Adhesive

Data Sheet S-3000 Reflective Panels Info

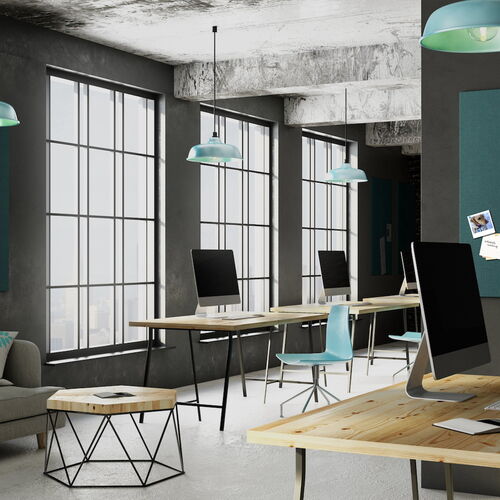

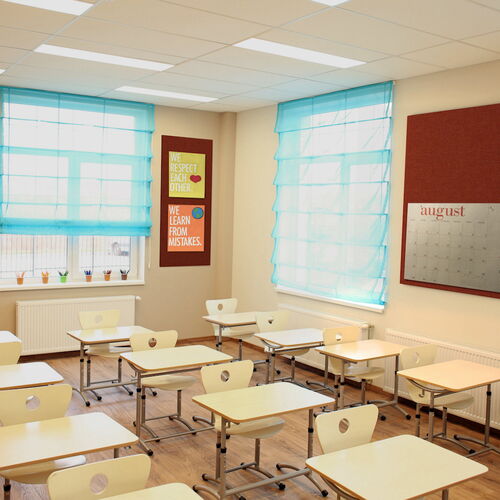

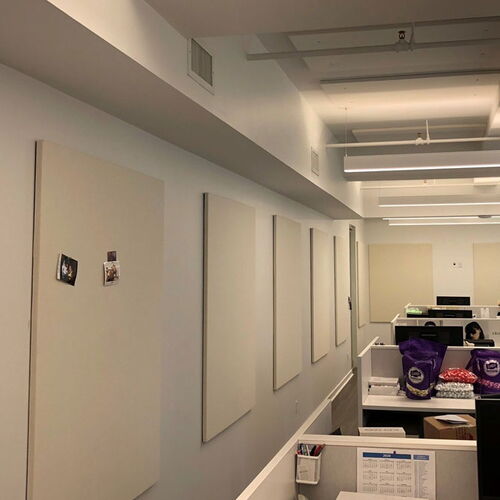

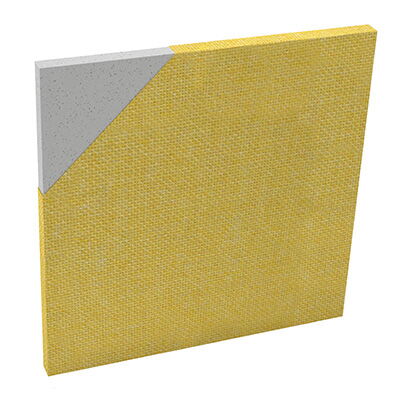

S-3100 Tackable Wall Panels

  • Manufactured with ECOSE® Technology & 60% recycled content.
  • NRC rating .75
  • Fire Rating: Class A per ASTM E-84
  • 1” thickness | Standard sizes up to 4’ x 10’
  • Square, Bevel, Radius or Miter edge
  • Mounting options: Rotofast Snap-on anchors, Impaling clips or 2-part mechanical clips

Data Sheet S-3100 Tackable Wall Panels Info

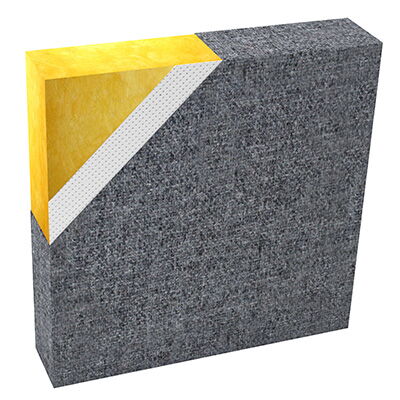

s4000 soundproof high impact wall panel

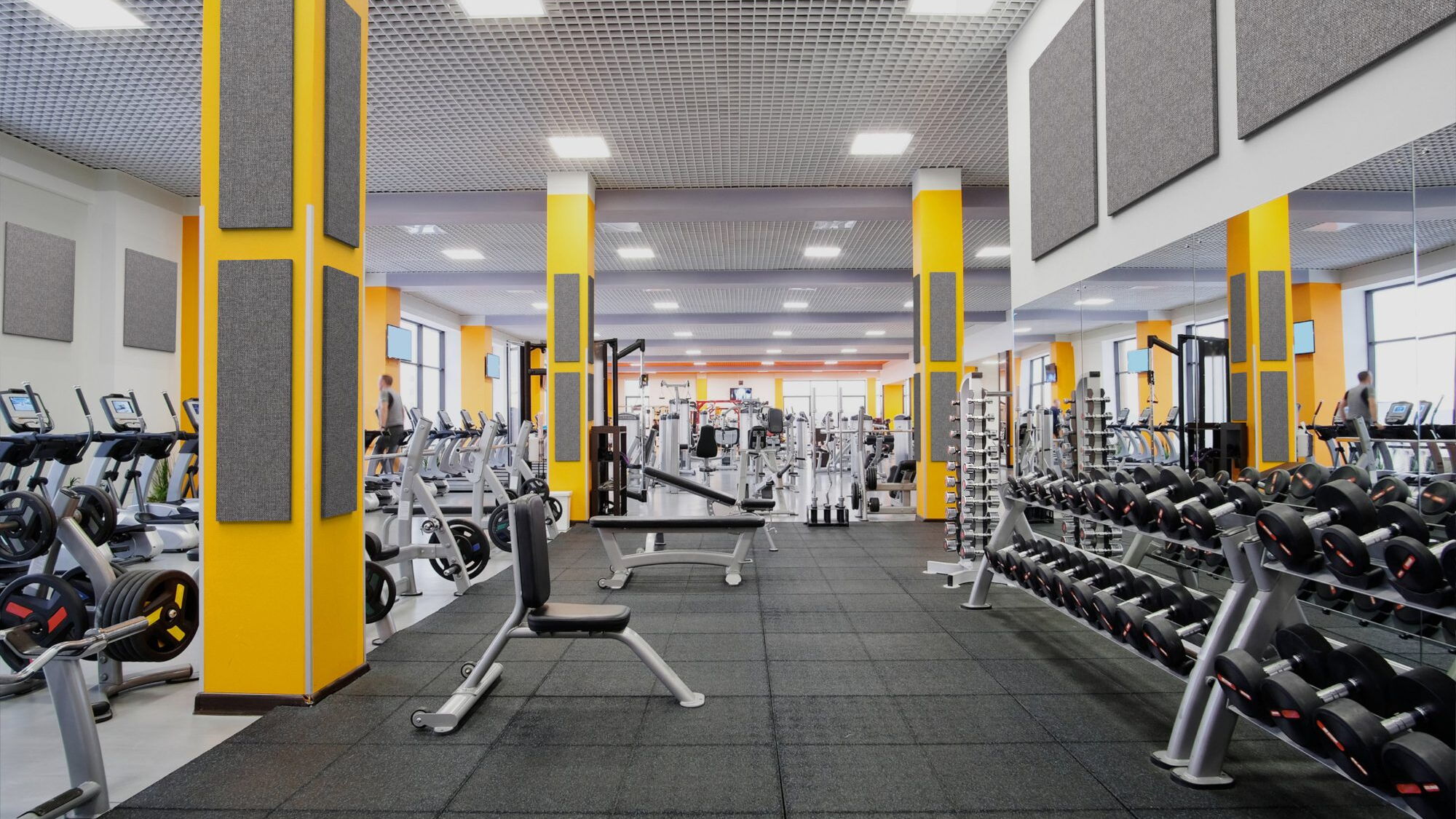

S-4000 High Abuse Wall Panel

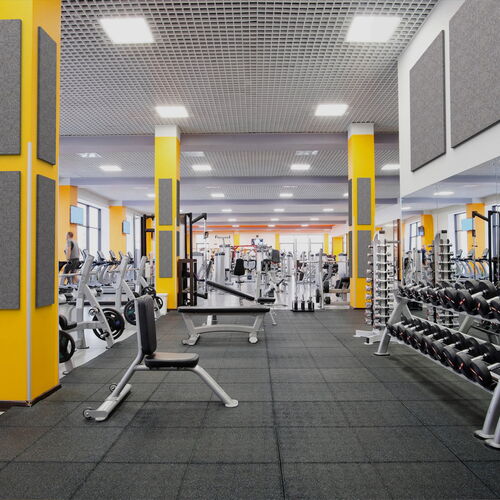

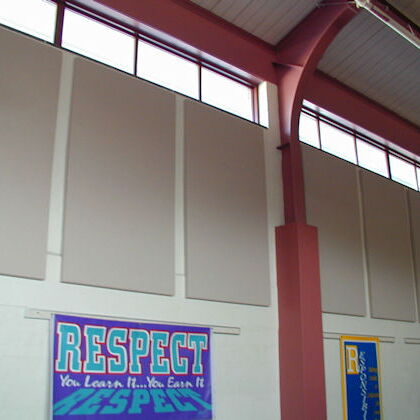

S-4000 High Abuse Panels

  • As the name implies, S-4000 High Abuse Panels are highly durable.
  • NRC rating: .80 – 1.05
  • Fire Rating: Class A per ASTM E-84
  • 9/16” to 4-1/16” thicknesses | Standard sizes up to 4’ x 10’
  • Square edge detail
  • Mounting options: Rotofast Snap-on anchors, Impaling clips or 2-part mechanical clips

Data Sheet S-4000 High Abuse Panels Info

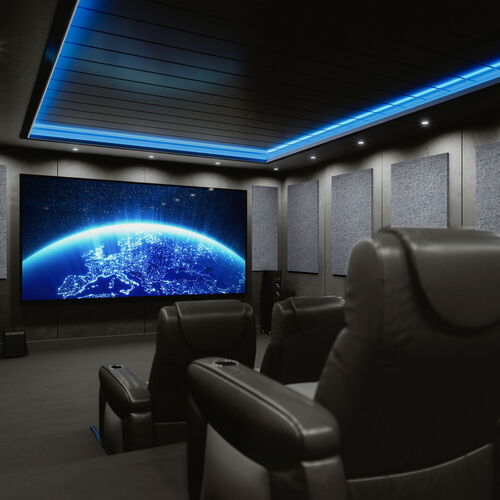

acoustical wall panel theater
S-4200 Application In Theater

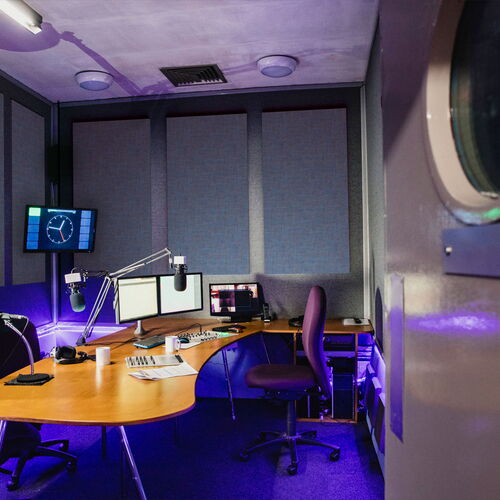

acoustical wall panel recording studio
S-4200 Application In Recording Studio

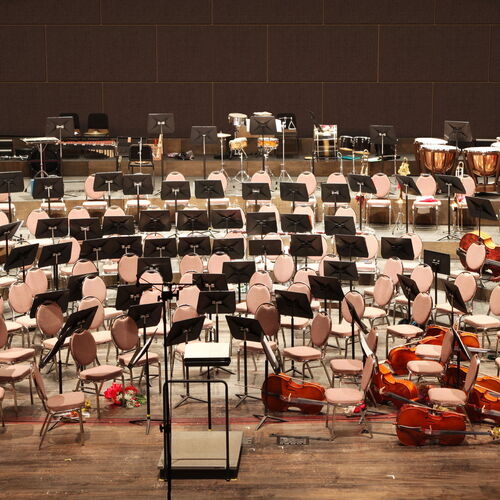

acoustical wall panel orchestra
S-4200 Application In Orchestra

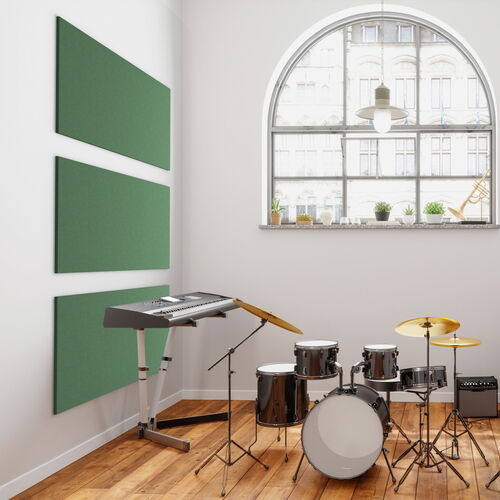

acoustical wall panel music room
S-4200 Application In Music Room

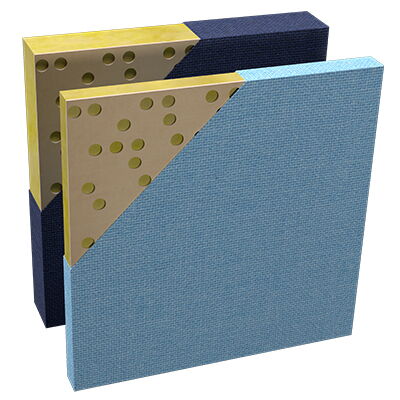

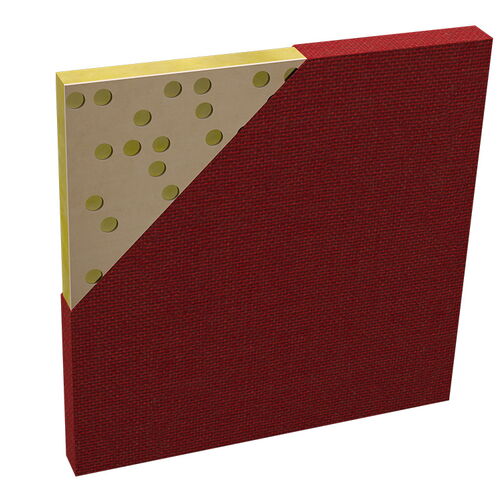

S-4200 Tuned Absorbers

  • Scatter sound throughout a space and offer excellent sound absorption.
  • NRC rating: .85 – 1.00
  • Fire Rating: Class A per ASTM E-84
  • 1-1/8”, 2-1/8”, 3-1/8 & 4-1/8” thicknesses | Standard sizes up to 4’ x 10’
  • Square, Bevel, Radius or Miter edge
  • Mounting options: Rotofast Snap-on anchors, Impaling clips or 2-part mechanical clips

Data Sheet S-4200 Tuned Absorbers Info

Aerial Wall Baffles

  • The perfect solution to reverberation issues for large outdoor spaces.
  • NRC rating: .70
  • Fire Rating: Class B per ASTM E-84
  • 2” thickness | Standard sizes up to 4’ x 10’
  • Stitched with TENARA® thread
  • Mounting option: Stainless steel grommets

Data Sheet Aerial Wall Baffles Info

Polyester Acoustical Board (PAB)

  • A sustainable sound absorber for both wall and ceiling applications.
  • NRC rating: .70
  • Fire Rating: Class A per ASTM E-84
  • 1" thickness | 48” x 96”
  • Square edge
  • Mounting options: Mounting hardware available upon request (all hardware to be field installed)

Data Sheet Polyester Acoustical Board (PAB) Info

PET acoustics

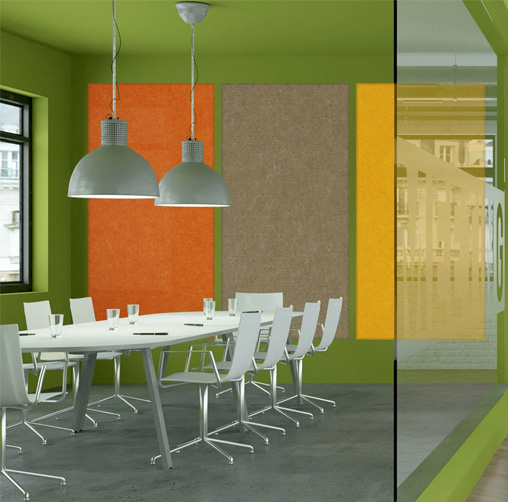

Plex-Board

Plex-Board™

  • Recycled and recyclable; resistant to mold, mildew and bacteria.
  • NRC rating: .30 – .55
  • Fire Rating: Class A per ASTM E-84
  • 9mm or 18mm thicknesses | 48” x 96”
  • Square edges
  • Mounting options: Construction panel adhesive, Carpet glue or Nail clips with adhesive

Data Sheet Plex-Board™ Info

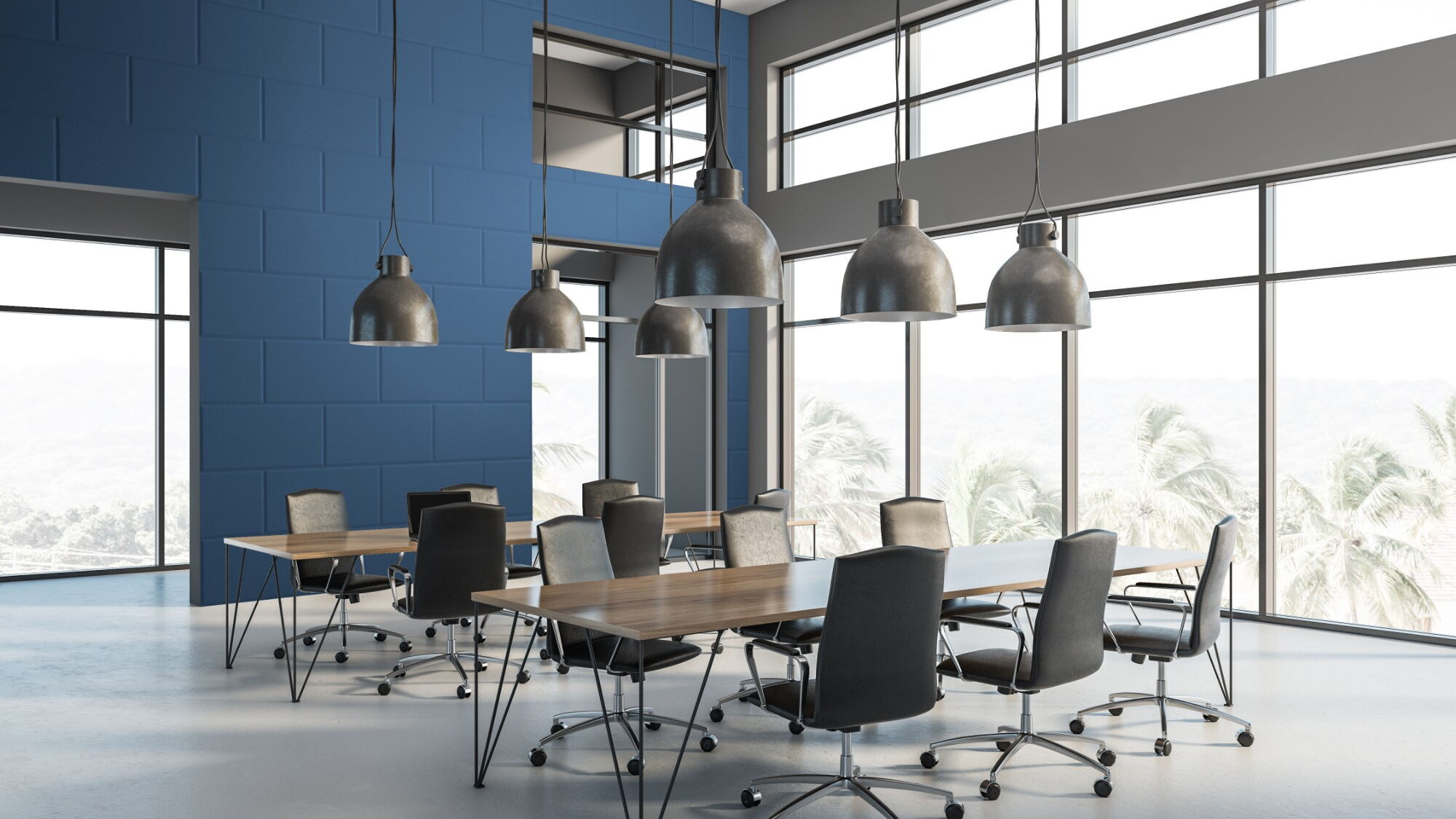

Tetrix™

  • A beautifully crafted solution to meet any acoustical needs.
  • NRC rating: .30
  • Fire Rating: Class A per ASTM E-84
  • 9mm thick | 23-1/2”x 23-1/2” or 23-1/2”x 47”
  • Chamfered edges
  • Mounting options: Construction panel adhesive, Carpet glue or Nail clips with adhesive

Data Sheet Tetrix™ Info

Tri-Hex™

  • Designed to fit tightly together, making it easy to create geometric patterns.
  • NRC rating: .45
  • Fire Rating: Class A per ASTM E-84
  • 5/8" thickness | 13” x 15”
  • Square edges
  • Mounting options: Construction panel adhesive or Carpet glue

Data Sheet Tri-Hex™ Info

Decibel Examples

When trying to enclose a piece a machinery, most people will know they want it "quieter," but can't put into acoustical terms the end result (or decibel reduction) they want to achieve. With our audio examples, you can actually hear the decibel differences compared to static pink noise.

Decibel Icon

Pink Noise

An example of a randomized static pink noise. Pink noise uses deeper sounds and lower sound waves.

Decibel Icon

3 dB

Just perceptible. 3dB reduction has a 18% reduction in the perceived volume and yet is just barely perceptible to the human ear.

Decibel Icon

6 dB

Noticeable. 6dB reduction has a 34% reduction in the perceived volume and is very noticeable to the human ear.

Decibel Icon

10 dB

Double/Halving. 10dB reduction has a 50% reduction in the perceived volume and sounds half as loud to the human ear.

Decibel Icon

20 dB

Much more/less. 20dB reduction has a 75% reduction in the perceived volume and most noticeable to the human ear.

Hate Waiting? Us Too.

Get It Fast! Ask Our Team How To Expedite Your Order
*Select products. Applies to in-stock fabric orders, only.

Learn More

Case Studies

Boston’s Big Dig

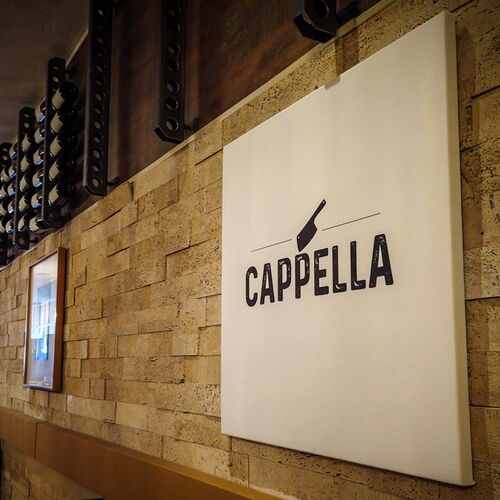

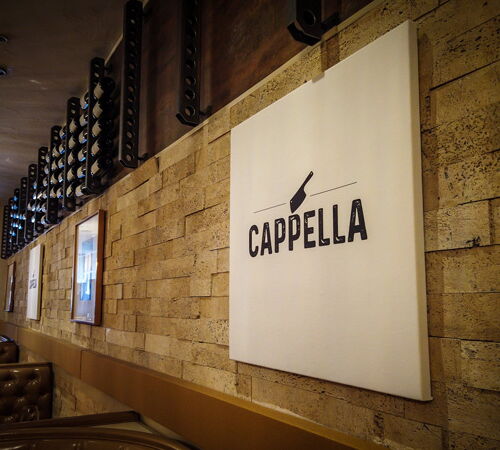

Capella Restaurant

Inspire Art printed panels are a focal point, and have made a direct and immediate impact on the overall customer experience at this trendy restaurant.

Full Case Study

Portland Museum of Art

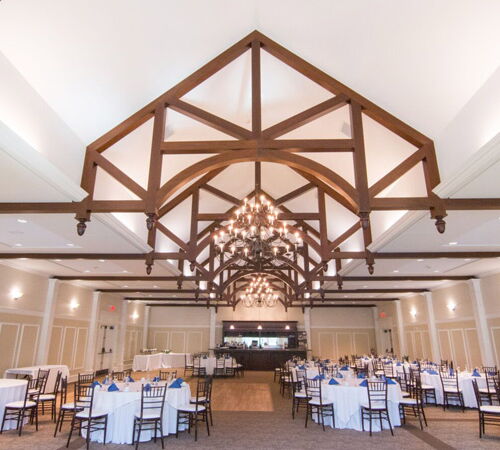

The Mansion At Bald Hill

On the first weekend following the installation of S-2000 panels, a wedding planner remarked about how fantastic the room sound calling it an overnight improvement.

Full Case Study

Portland Museum of Art

Grand Hyatt

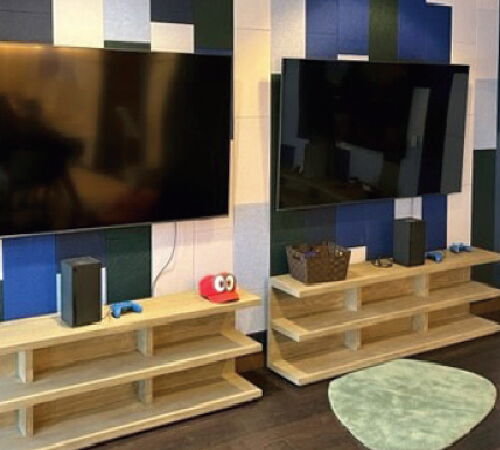

Poly-Coustix Tetrix Air panels helped to transform two dining rooms and a recreational room into cozy and contemporary spaces.

Full Case Study

Ford Motor Company

Lee Bank

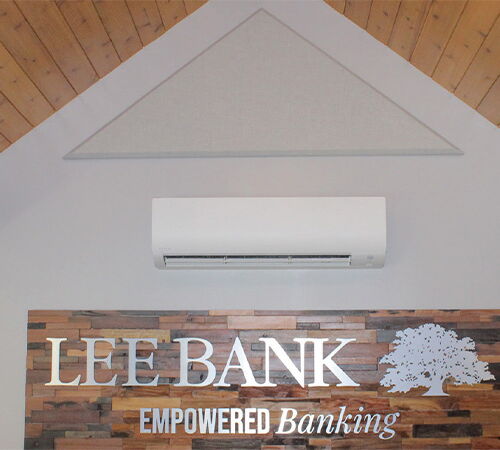

Sound Quality S-2000 panels help Lee Bank fulfill its mission of maintaining private, face-to-face customer interactions.
