Acoustic Pipe & Duct Wrap

Sound Seal's HVAC duct lagging product line is designed to offer significant reduction of radiated noise from HVAC duct casings. The reinforced foil-faced exterior serves as a protective jacket for indoor or outdoor applications. The lagging can be applied to rectangular or round duct and pipe systems.

Features of LAG Pipe & Duct Wrap:

  • Thin and lightweight material
  • Easy installation
  • Foil facing acts as a protective jacket

Features of LAG Pipe & Duct Wrap with Acoustic Installation:

  • Added benefit of a noise barrier/sound absorber
  • Added acoustic performance
Listen to Decibel Examples | Case Studies
Productivity Icon

Applications

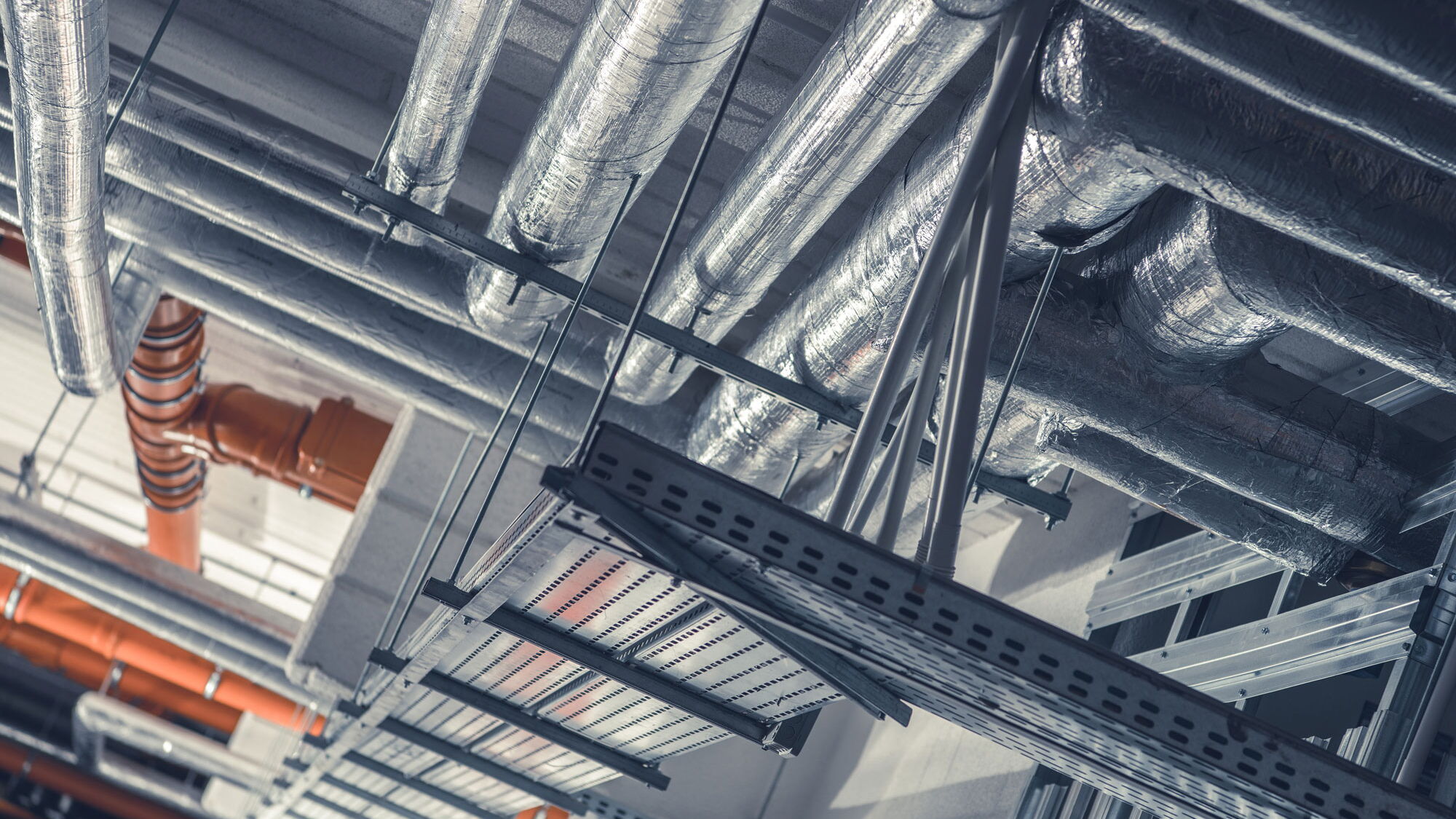

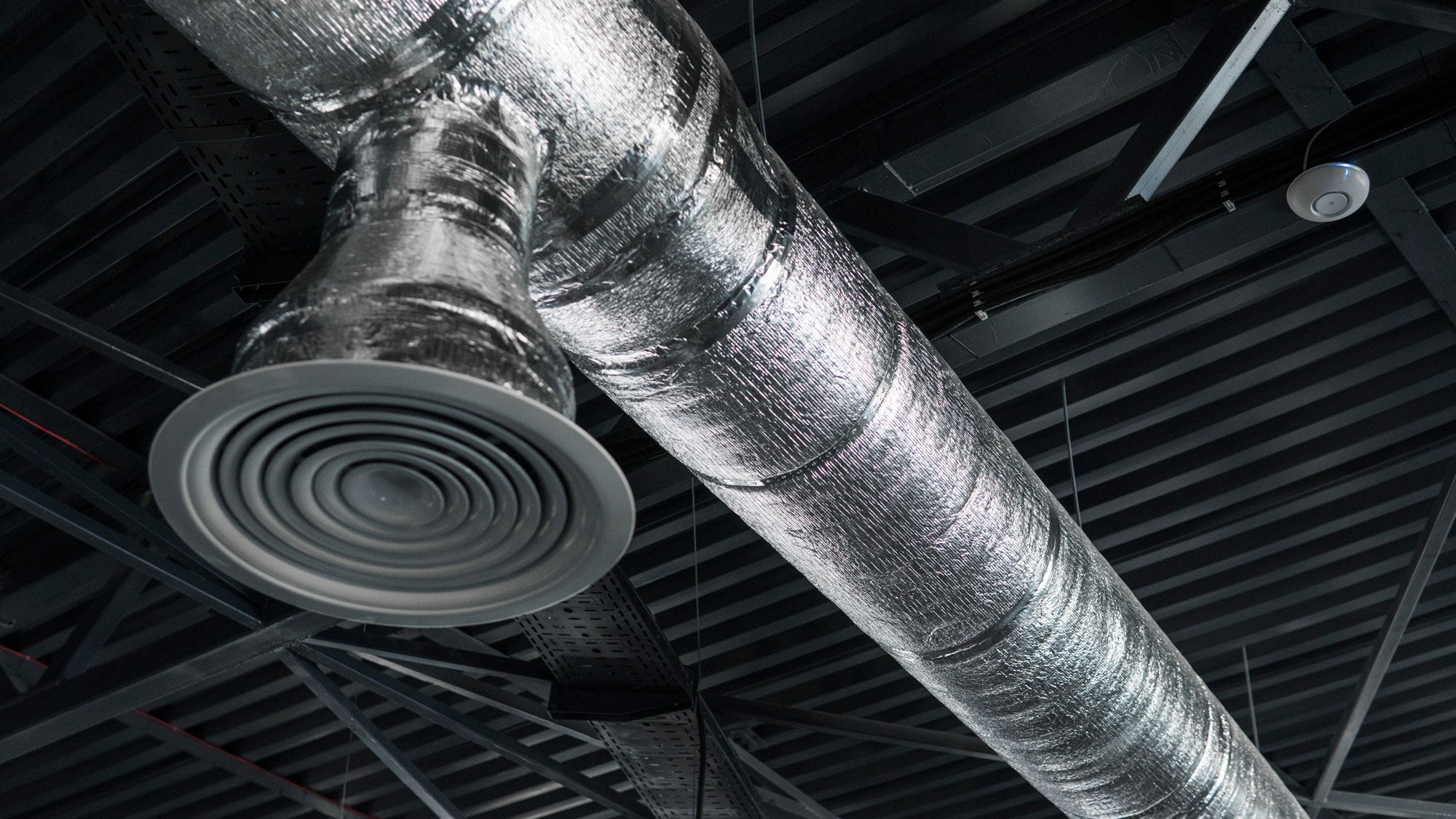

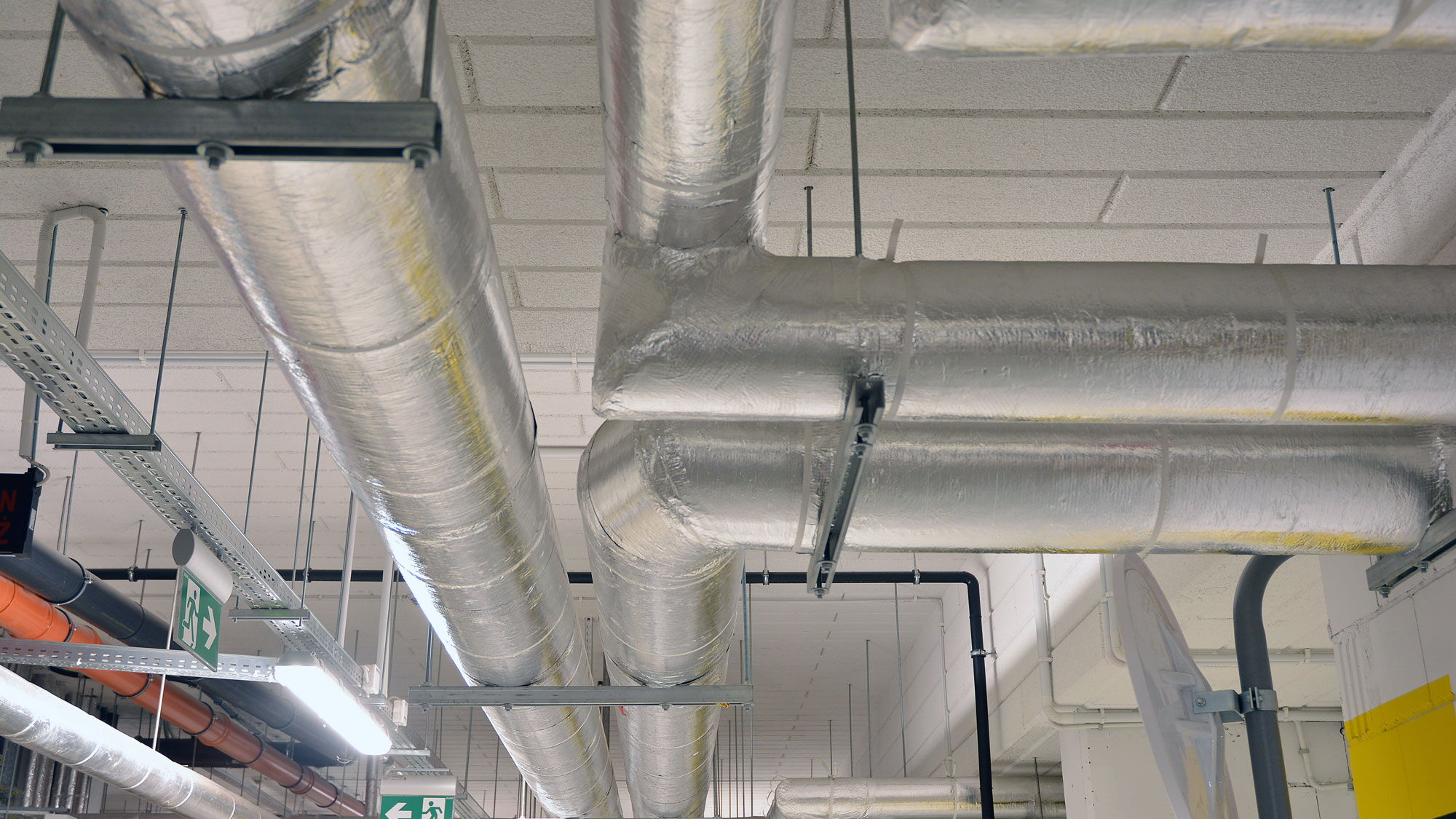

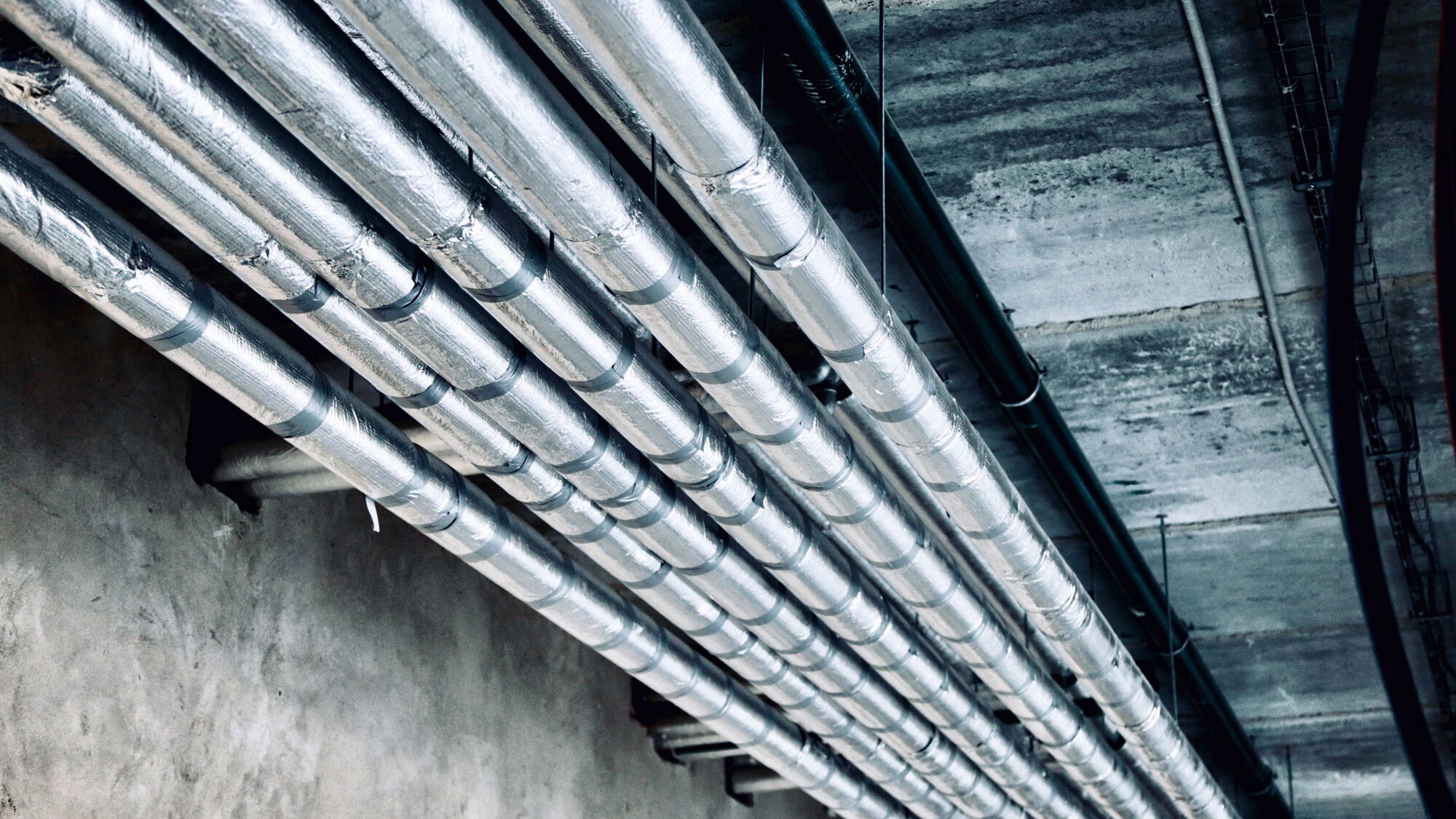

Used to wrap noisy pipes, ducts, valves and fan housings.

Sizing Icon

Sizing

Standard roll sizes measure 54” x 30’.

Easy Install Icon

Easy Install

Easy to cut, wrap and install with matching lag tape.

Contain Noise Icon

Acoustical Performance

Sound Seal’s LAG Pipe and Duct Wrap offers an STC of 29 or 34, helping to contain noise to its source and improving the overall acoustics of a space.

Available Products in the LAG Pipe and Duct Wrap Line

B-10 LAG

  • 1 lb. psf reinforced foil faced vinyl barrier
  • STC 27
  • Temperature range: -10° to +180° F
  • Flammability: UL 94: meets VO | FMVSS 302: Pass
  • Weight: 1.00 lb psf

Data Sheet     Installation Instructions

B-20 LAG

  • 2 lb. psf reinforced foil faced vinyl barrier
  • STC 31
  • Temperature range: -10° to +180° F
  • Flammability: UL 94: meets VO | FMVSS 302: Pass
  • Weight: 2.00 lb psf

Data Sheet     Installation Instructions

Available Products in the LAG Pipe and Duct Wrap with Acoustic Insulation Line

B-10 LAG/QFA 3

  • The quilted fiberglass acts as a decoupler in pipe or duct wrap. 
  • STC 29
  • Temperature range: -20° to +220° F
  • Smoke Density: 19.5 | Flame Spread: 12.5
  • Weight: 1.20 lb psf

Data Sheet     Installation Instructions

B-10 LAG/QFA 9

  • Suitable for indoor or outdoor applications. 
  • STC 30
  • Temperature range: -20° to +350° F
  • Smoke Density: 19.5 | Flame Spread: 12.5
  • Weight: 1.45 lb psf

Data Sheet     Installation Instructions

B-20 LAG/QFA 3

  • A heavier wrap option for industrial noise control. 
  • STC 22
  • Temperature range: -20° to +220° F
  • Smoke Density: 19.5 | Flame Spread: 12.5
  • Weight: 2.20 lb psf

Data Sheet     Installation Instructions

B-20 LAG/QFA 9

  • Our heaviest offering in the line. Suitable for indoor/outdoor use.
  • STC 34
  • Temperature range: -20° to +200° F
  • Smoke Density: 19.5 | Flame Spread: 12.5
  • Weight: 2.40 lb psf

Data Sheet     Installation Instructions

Decibel Examples

When trying to enclose a piece a machinery, most people will know they want it "quieter," but can't put into acoustical terms the end result (or decibel reduction) they want to achieve. With our audio examples, you can actually hear the decibel differences compared to static pink noise.

Decibel Icon

Pink Noise

An example of a randomized static pink noise. Pink noise uses deeper sounds and lower sound waves.

Decibel Icon

3 dB

Just perceptible. 3dB reduction has a 18% reduction in the perceived volume and yet is just barely perceptible to the human ear.

Decibel Icon

6 dB

Noticeable. 6dB reduction has a 34% reduction in the perceived volume and is very noticeable to the human ear.

Decibel Icon

10 dB

Double/Halving. 10dB reduction has a 50% reduction in the perceived volume and sounds half as loud to the human ear.

Decibel Icon

20 dB

Much more/less. 20dB reduction has a 75% reduction in the perceived volume and most noticeable to the human ear.
