Our Poly-Coustix line of PET products is the perfect combination of innovative design and quality acoustical performance. With multiple color and configuration options, there are endless creative solutions for your space.
Applications
Made from 100% PET, our Poly-Coustix products are as sustainable as they are beautiful.
Sizing
Choose standard or custom sizes for a unique aesthetic.
Easy Install
PET felt is extremely lightweight, making products in this line easy to maneuver, modify and install.
Acoustical Performance
An NRC of up to 1.30 can be achieved with Poly-Coustix.
Available Products in the Poly-Coustix Line

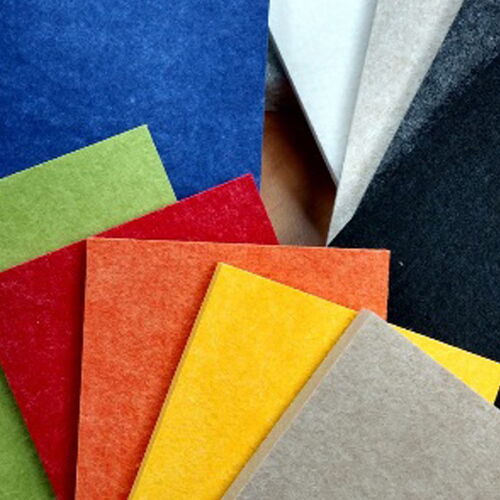

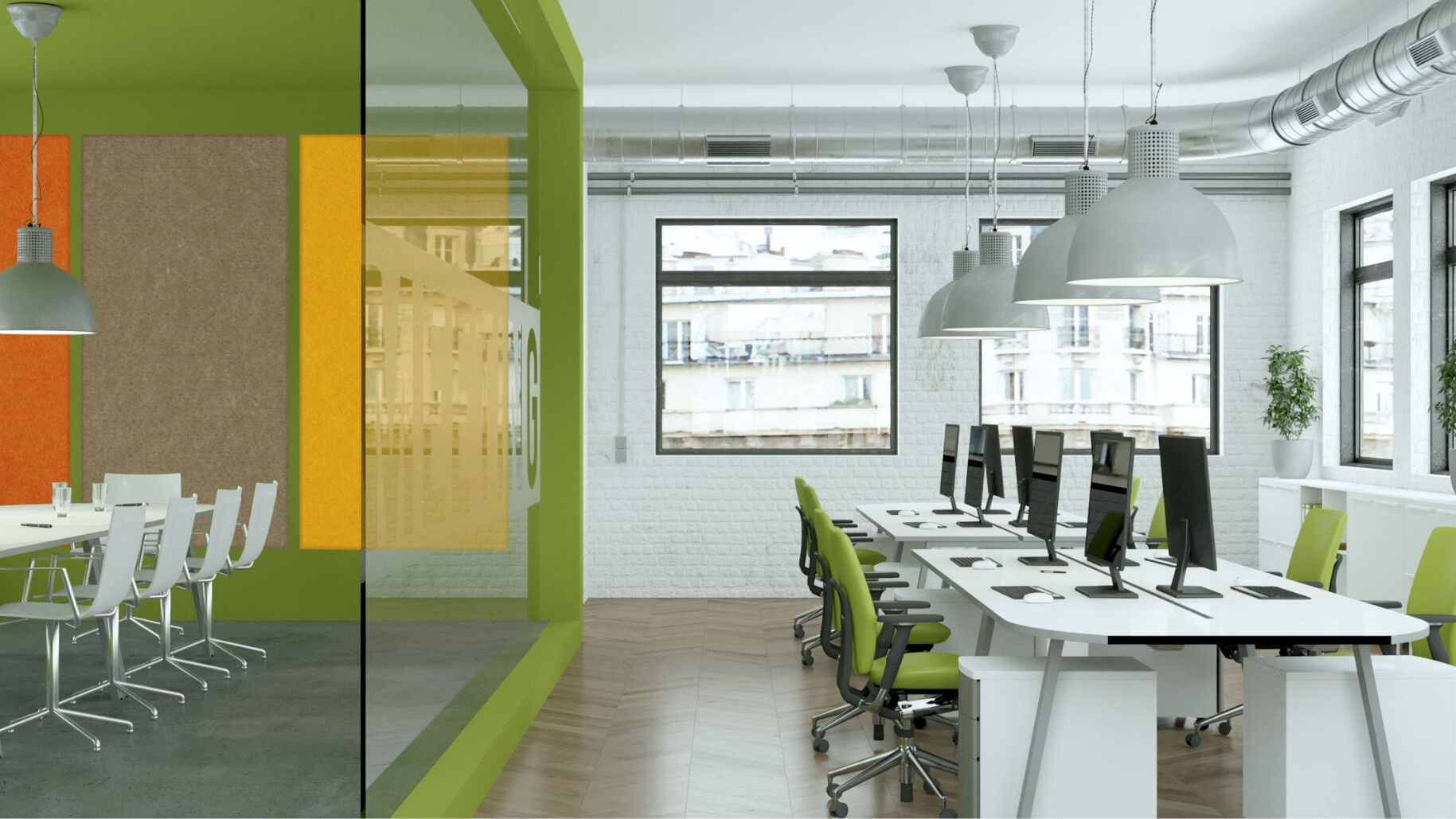

Plex Board® Info
- Recycled and recyclable; resistant to mold, mildew and bacteria.
- NRC rating: .30 – .55
- Fire Rating: Class A per ASTM E-84
- 9mm or 18mm thicknesses | 48" x 96"
- Square edges
- Mounting options: Construction panel adhesive, Carpet glue or Nail clips with adhesive
Vertex PET Baffles
- Constructed with two layers of 9mm PET and a center air space for sound absorption.
- NRC rating: 1.10
- Fire Rating: Class A per ASTM E-84
- Standard sizes: 48"x 12"; 48"x 16"; 48"x 24"; 96"x 12"; 96"x 16"; 96"x 24"
- Square edge
- Mounting options: Aircraft cable or threaded rod

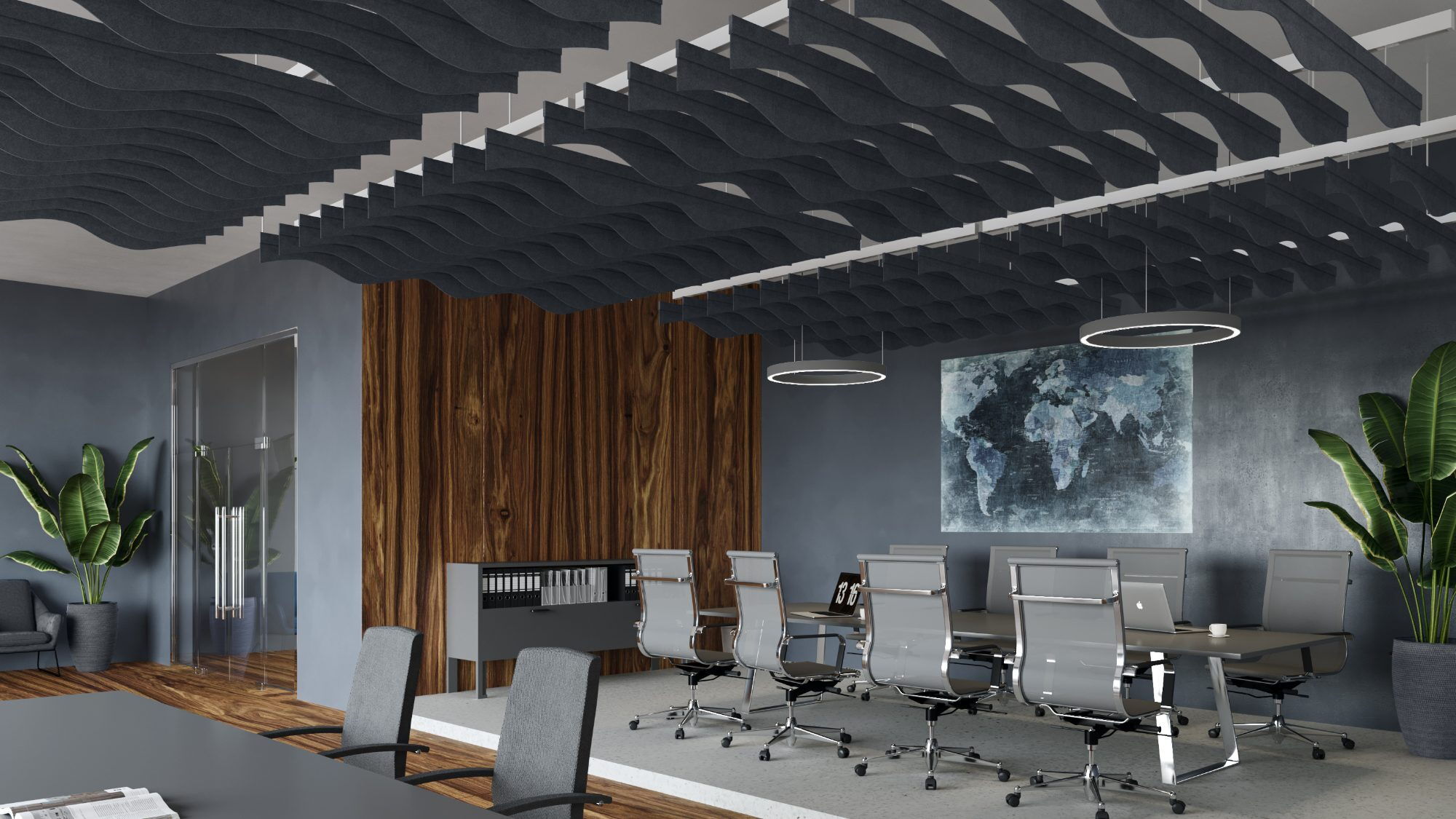

Vertex Slim PET Baffles
- A modern, elegant and sustainable baffle constructed from PET.
- NRC rating: .75
- Fire Rating: Class A per ASTM E-84
- Standard sizes: 48"x 12"; 48"x 16"; 48"x 24"; 96"x 12"; 96"x 16"; 96"x 24"
- Straight or wavy bottom edge
- Mounting options: Aircraft cable or threaded rod

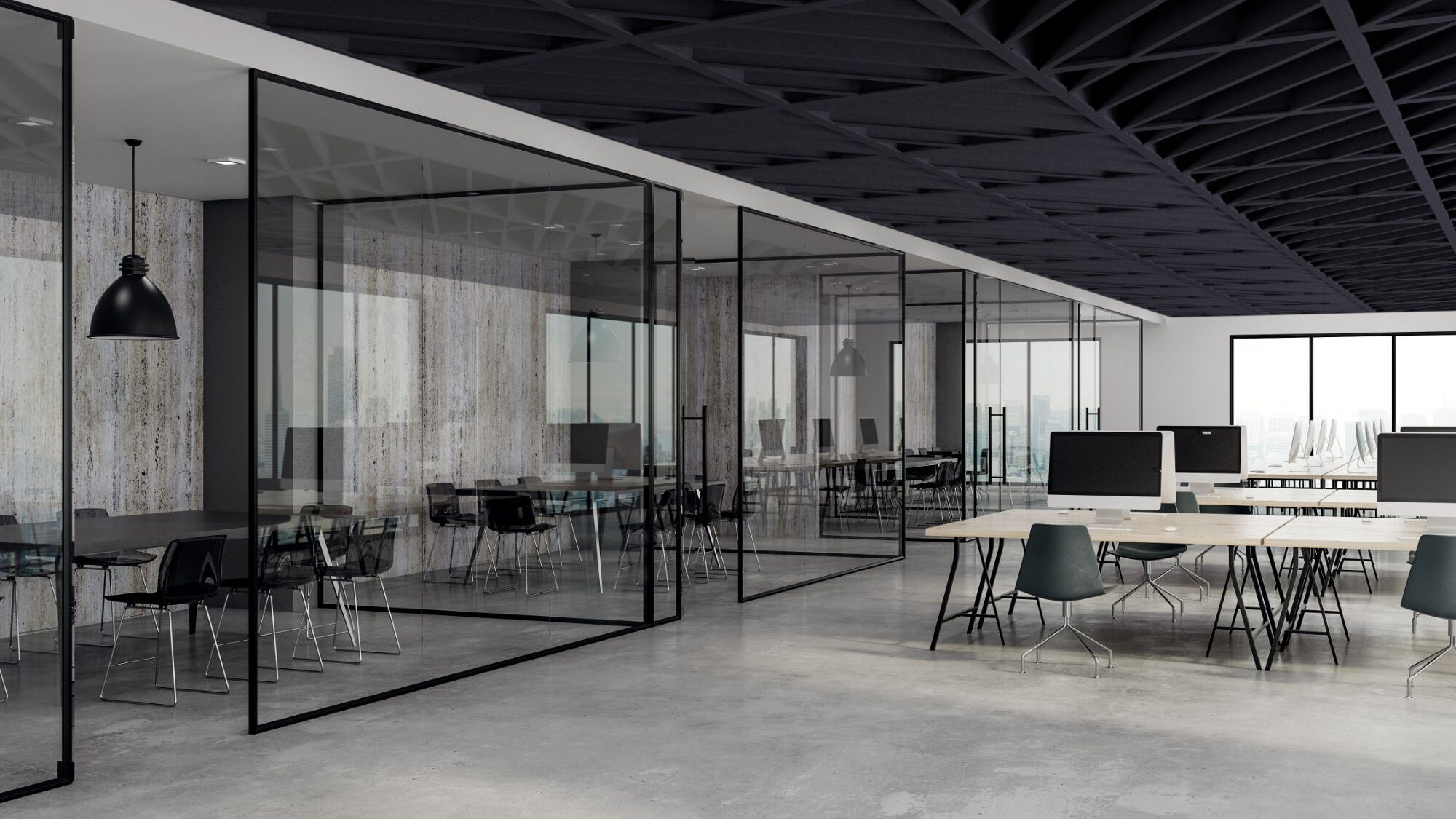

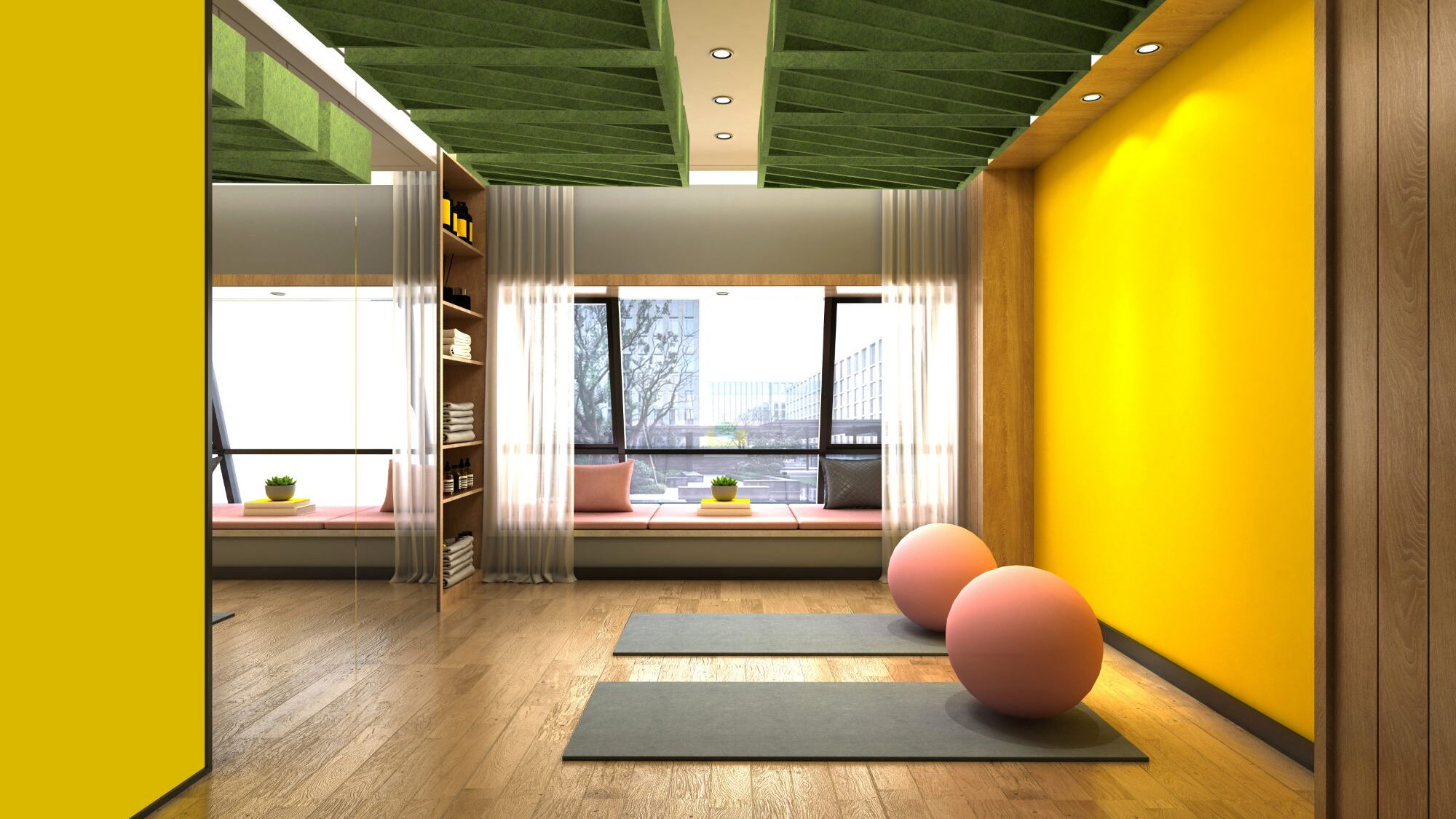

Oblix PET Baffles
- Distinctive lines create interesting simplicity.
- NRC rating: 1.25
- Fire Rating: Class A per ASTM E-84
- Standard size: 47" x 47" x 12"
- Square edges
- Mounting option: Aircraft cable

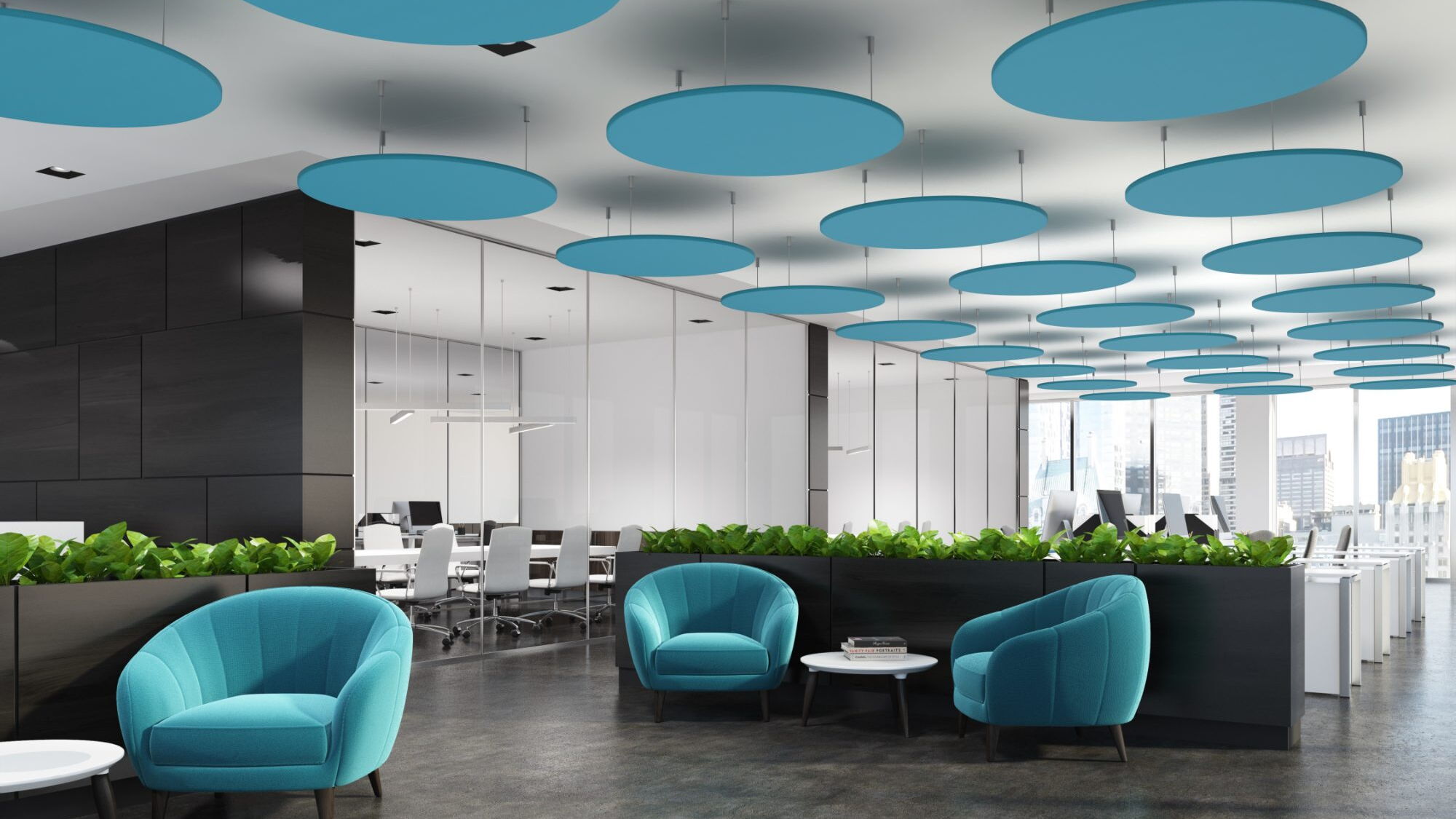

Stratux Cloud
- Round or Square shapes are manufactured from 9mm PET.
- NRC rating: 1.30
- Fire Rating: Class A per ASTM E-84
- Standard sizes: 47” diameter circle or 47” x 47” Square
- Beveled edges
- Mounting options: Aircraft cable or threaded rod

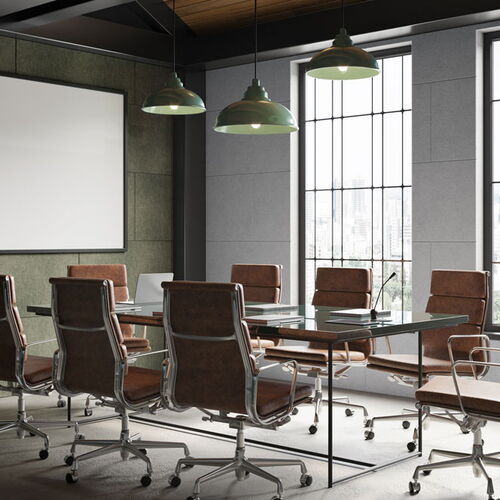

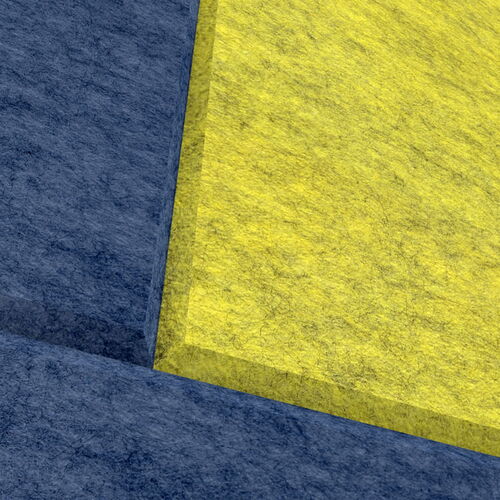

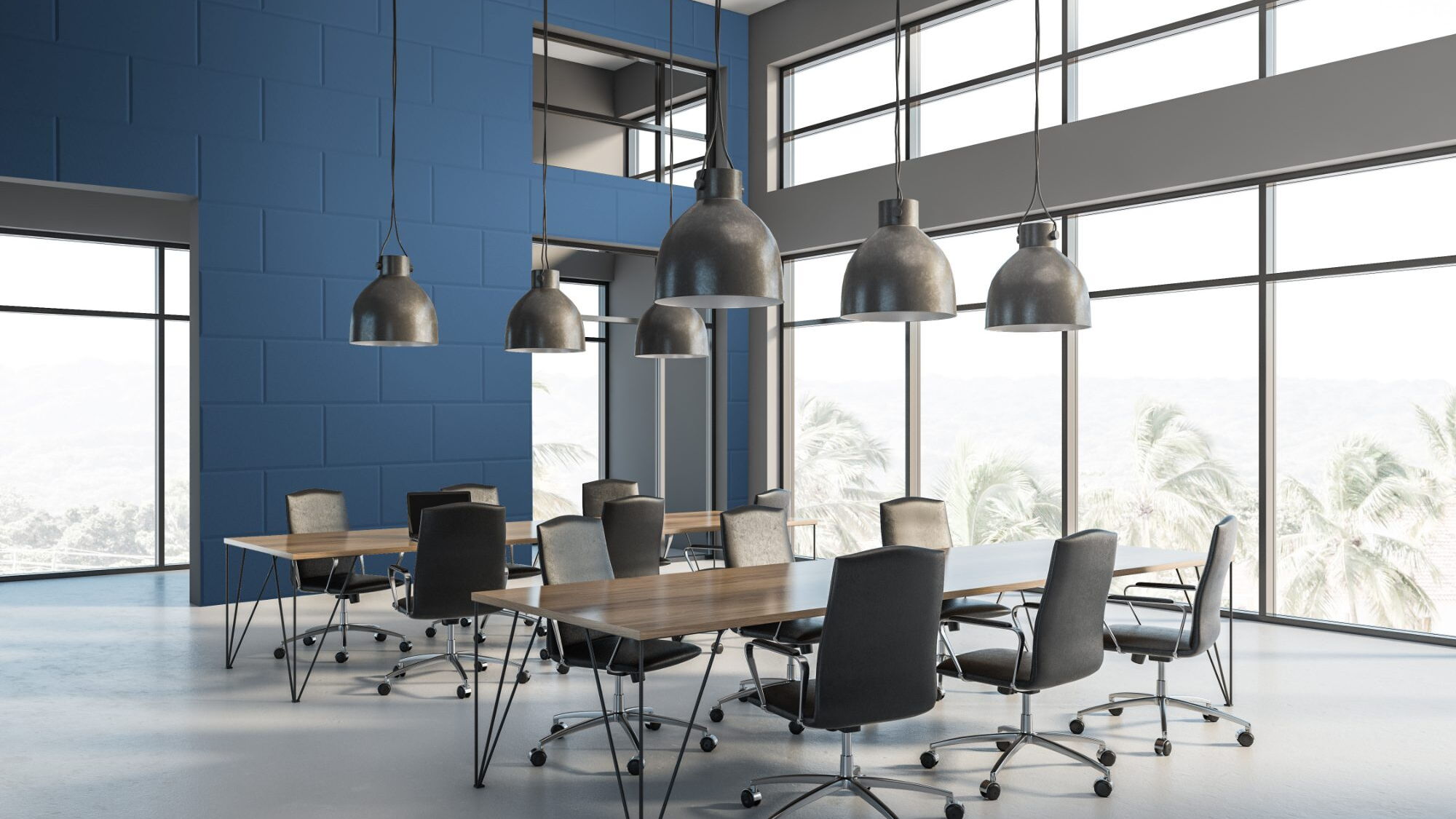

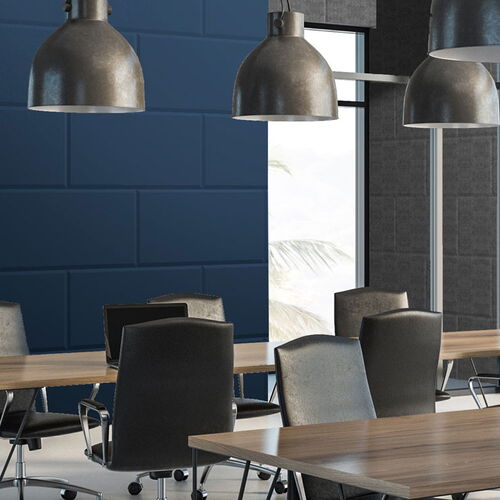

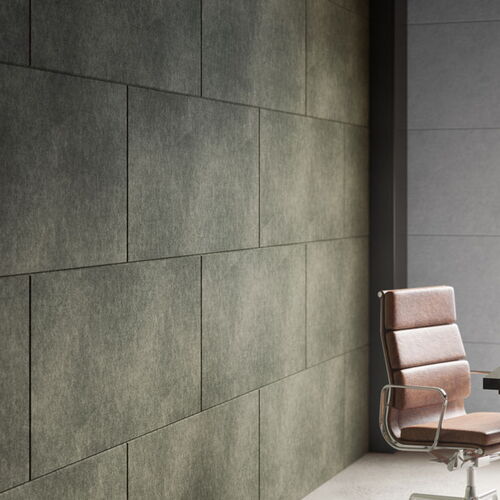

Tetrix™
- A beautifully crafted solution to meet any acoustical needs.
- NRC rating: .30
- Fire Rating: Class A per ASTM E-84
- 9mm thick | 23-1/2"x 23-1/2" or 23-1/2"x 47"
- Chamfered edges
- Mounting options: Construction panel adhesive, Carpet glue or Nail clips with adhesive

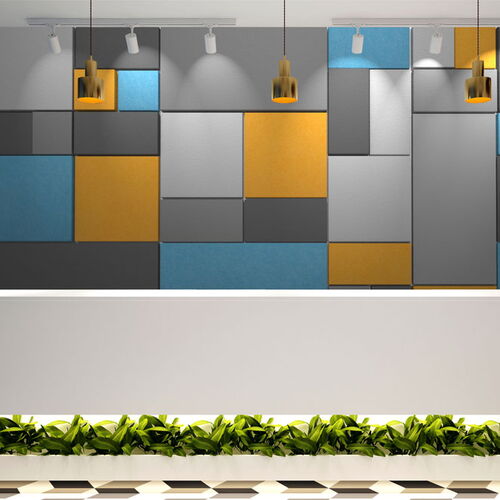

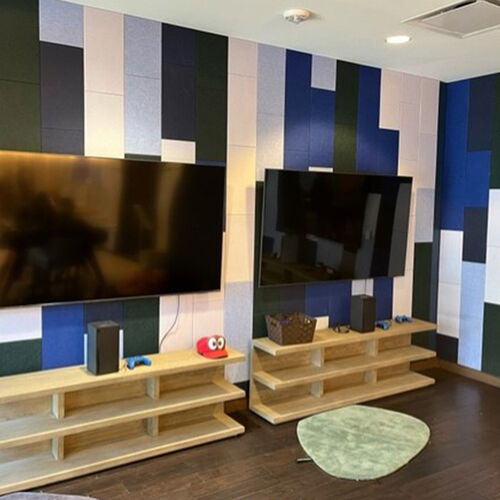

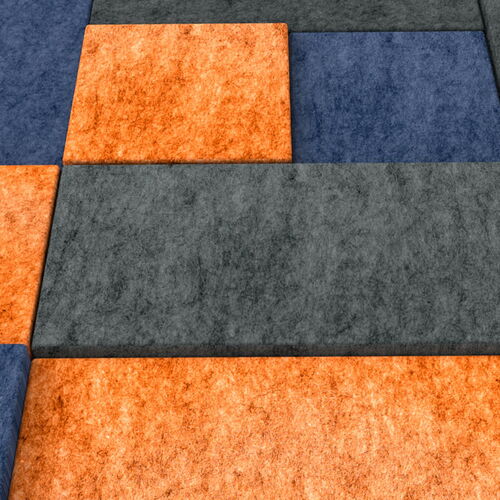

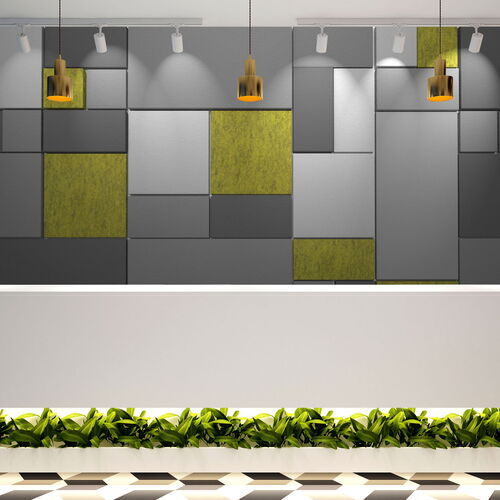

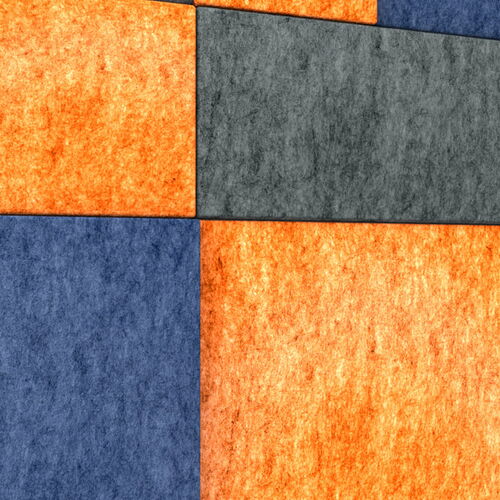

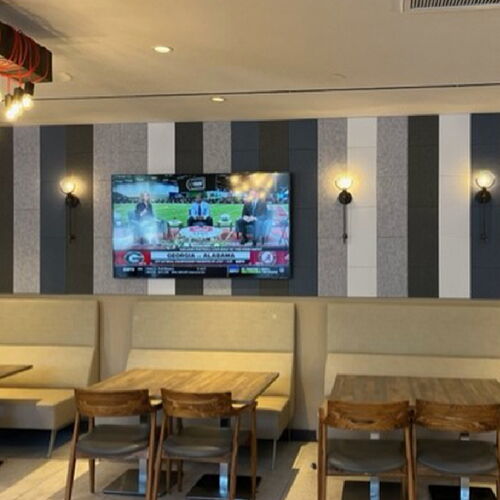

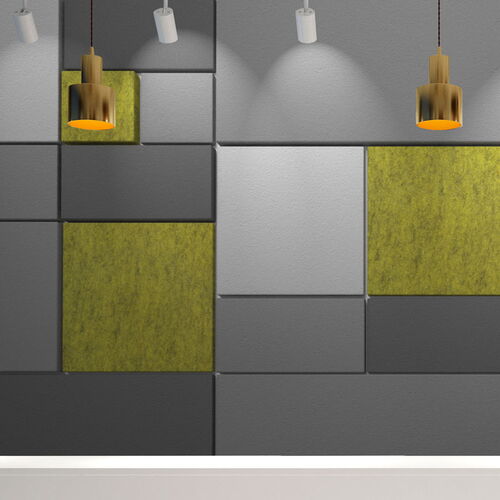

Tetrix Air™
- The concealable front access panel allows for easy and accurate installation.
- NRC rating: .50
- Fire Rating: Class A per ASTM E-84
- 27mm or 36mm thicknesses | 10-1/2"x 10-1/2", 21"x 10-1/2", 21"x 21", 42"x 21", 42"x 42"
- Square edges
- Mounting option: Standard screws

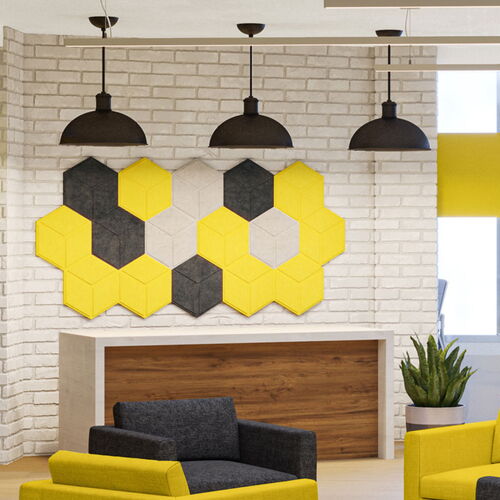

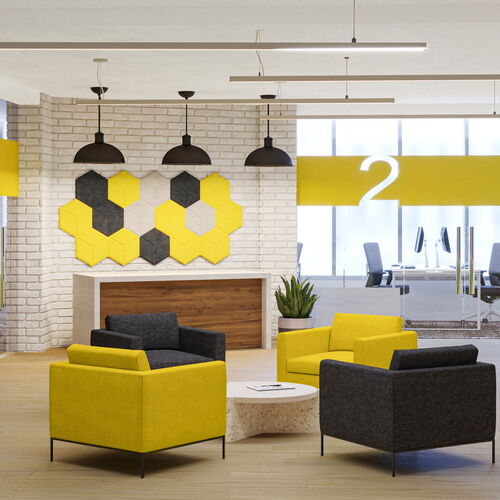

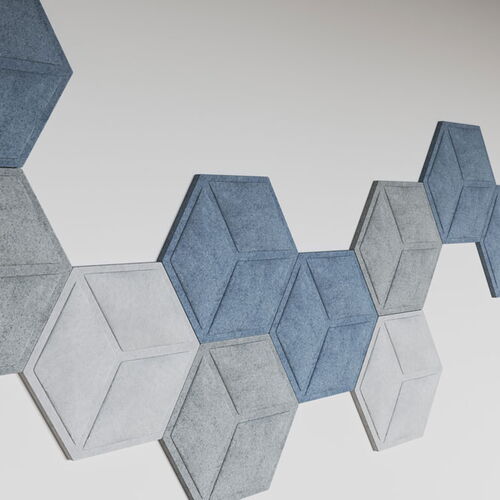

Tri-Hex™
- Designed to fit tightly together, making it easy to create geometric patterns.
- NRC rating: .45
- Fire Rating: Class A per ASTM E-84
- 5/8" thickness | 13" x 15"
- Square edges
- Mounting options: Construction panel adhesive or Carpet glue

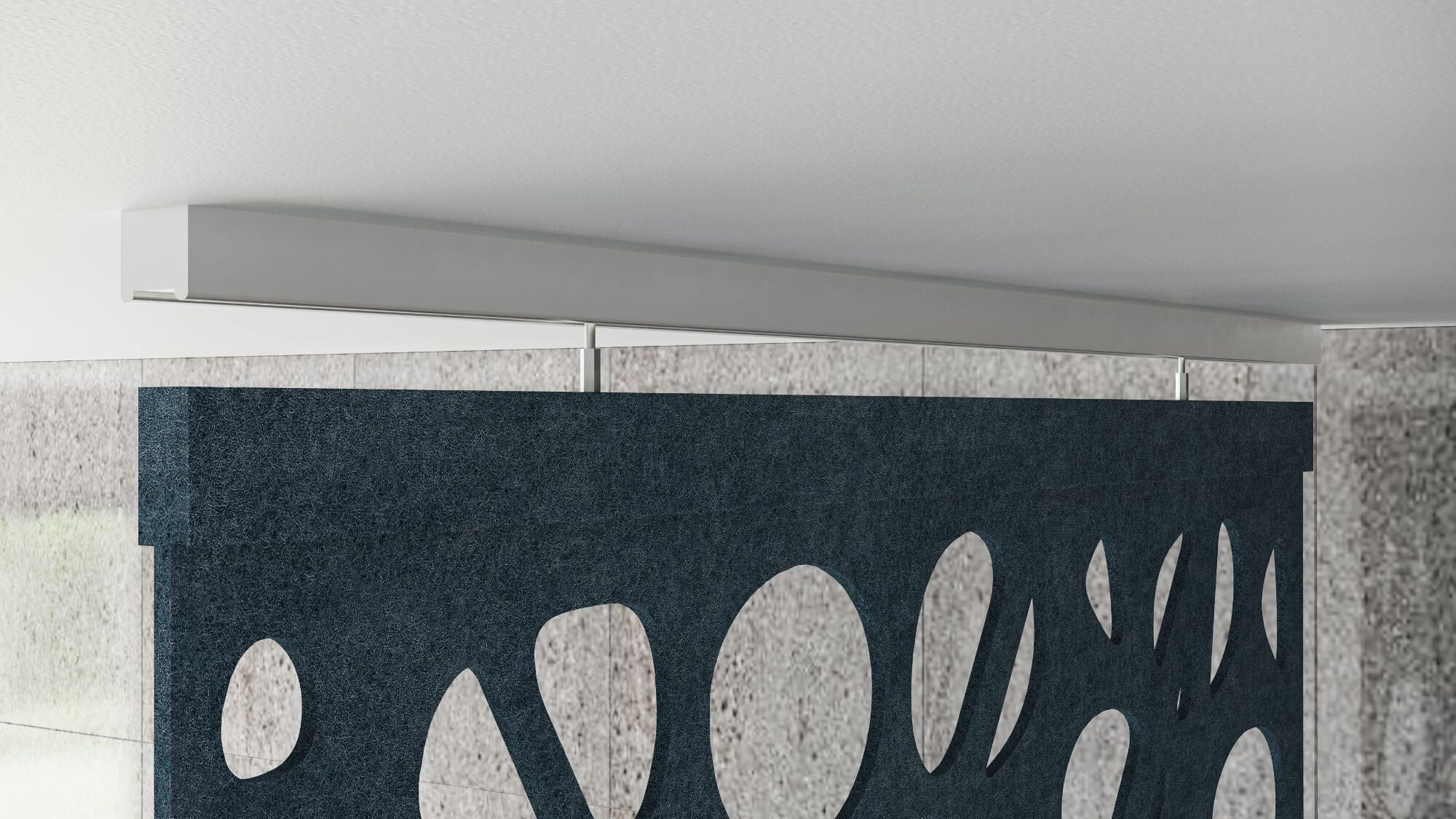

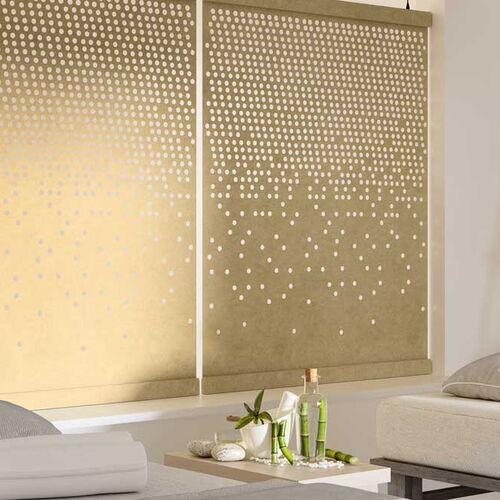

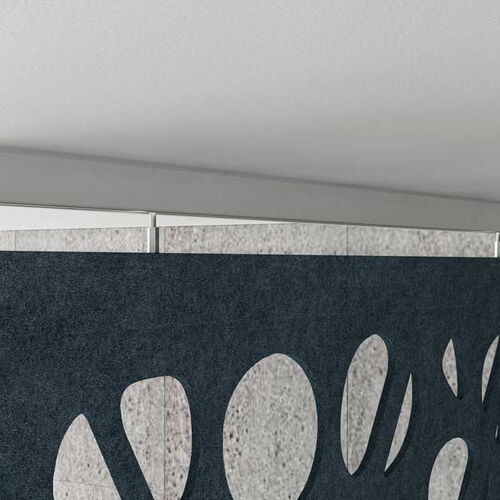

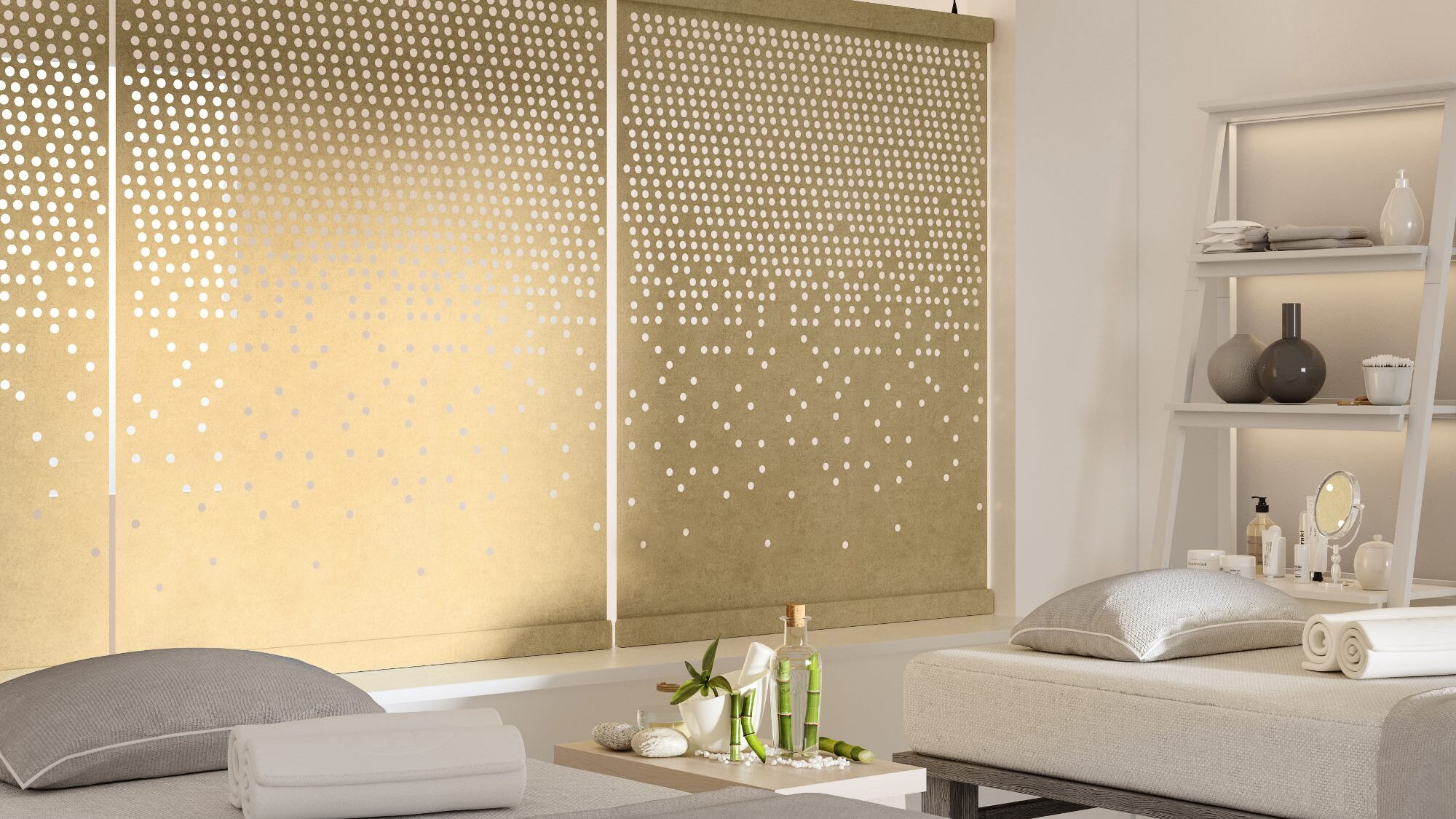

Dividex
- Designed to be suspended or placed within an interior space to act as a room divider.
- NRC rating: .75
- Standard panel size measures 47" x 95"
- Square edges

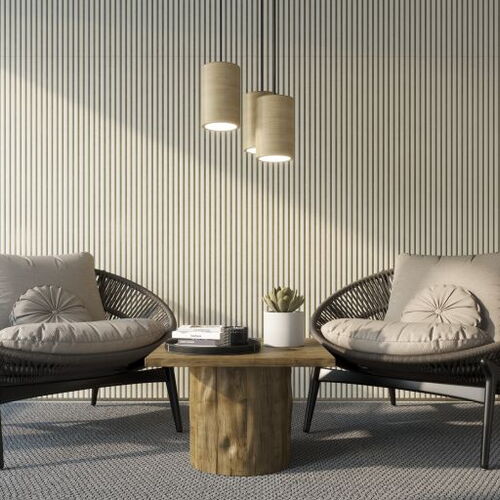

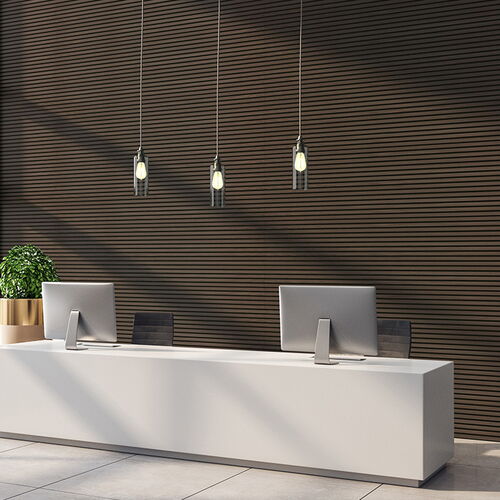

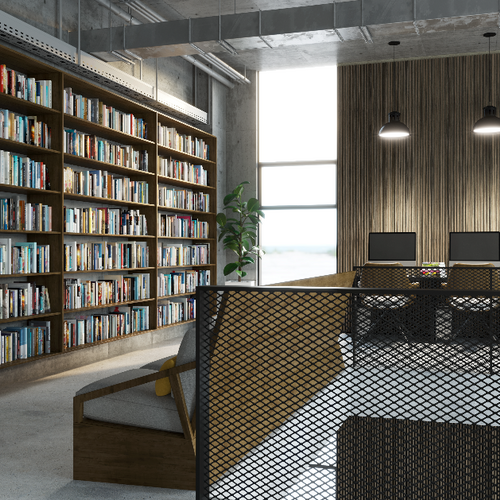

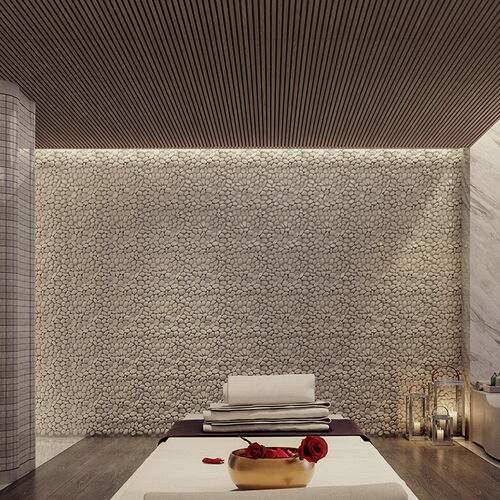

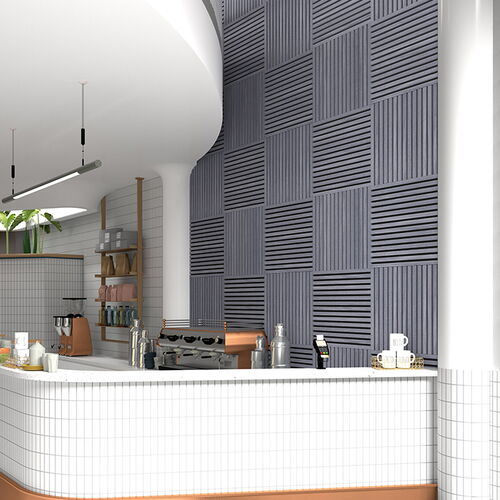

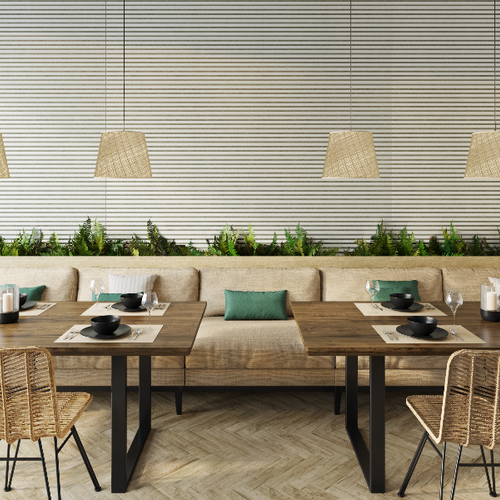

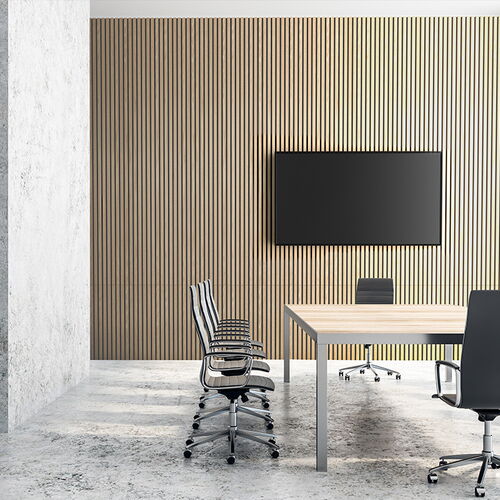

Timber-Stix Walls & Ceilings
- These Wood-veneered MDF boards are backed with PET felt.
- NRC rating: .55 to .80
- Fire Rating: Class B per ASTM E-84
- .87 mm thicknesses | 47” x 95” panels
- Linear design | Edge can end on a wood slat or PET felt
- Mounting options: Direct to wall with adhesive, or furring strip installation can be used on ceilings or walls
Decibel Examples
When trying to enclose a piece a machinery, most people will know they want it "quieter," but can't put into acoustical terms the end result (or decibel reduction) they want to achieve. With our audio examples, you can actually hear the decibel differences compared to static pink noise.
Pink Noise
An example of a randomized static pink noise. Pink noise uses deeper sounds and lower sound waves.
3 dB
Just perceptible. 3dB reduction has a 18% reduction in the perceived volume and yet is just barely perceptible to the human ear.
6 dB
Noticeable. 6dB reduction has a 34% reduction in the perceived volume and is very noticeable to the human ear.
10 dB
Double/Halving. 10dB reduction has a 50% reduction in the perceived volume and sounds half as loud to the human ear.
20 dB
Much more/less. 20dB reduction has a 75% reduction in the perceived volume and most noticeable to the human ear.
