You only get one chance to make a first impression. With Timber-Stix, it’s always a good one. These acoustical panels are comprised of a wood-veneered MDF board facing and a backing made from 100% Polyethylene Terephthalate (PET) a 100% recyclable material.
Applications

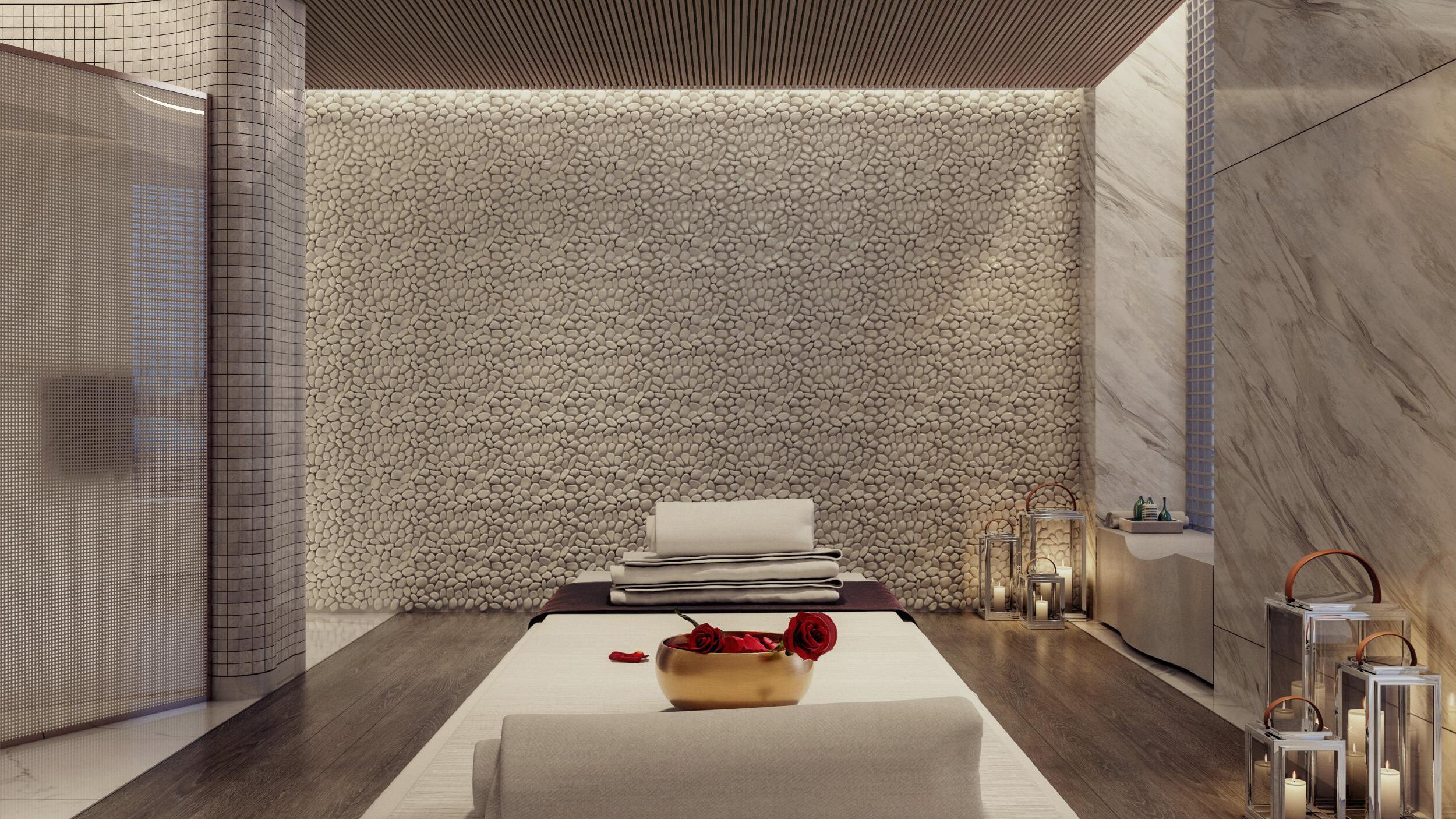

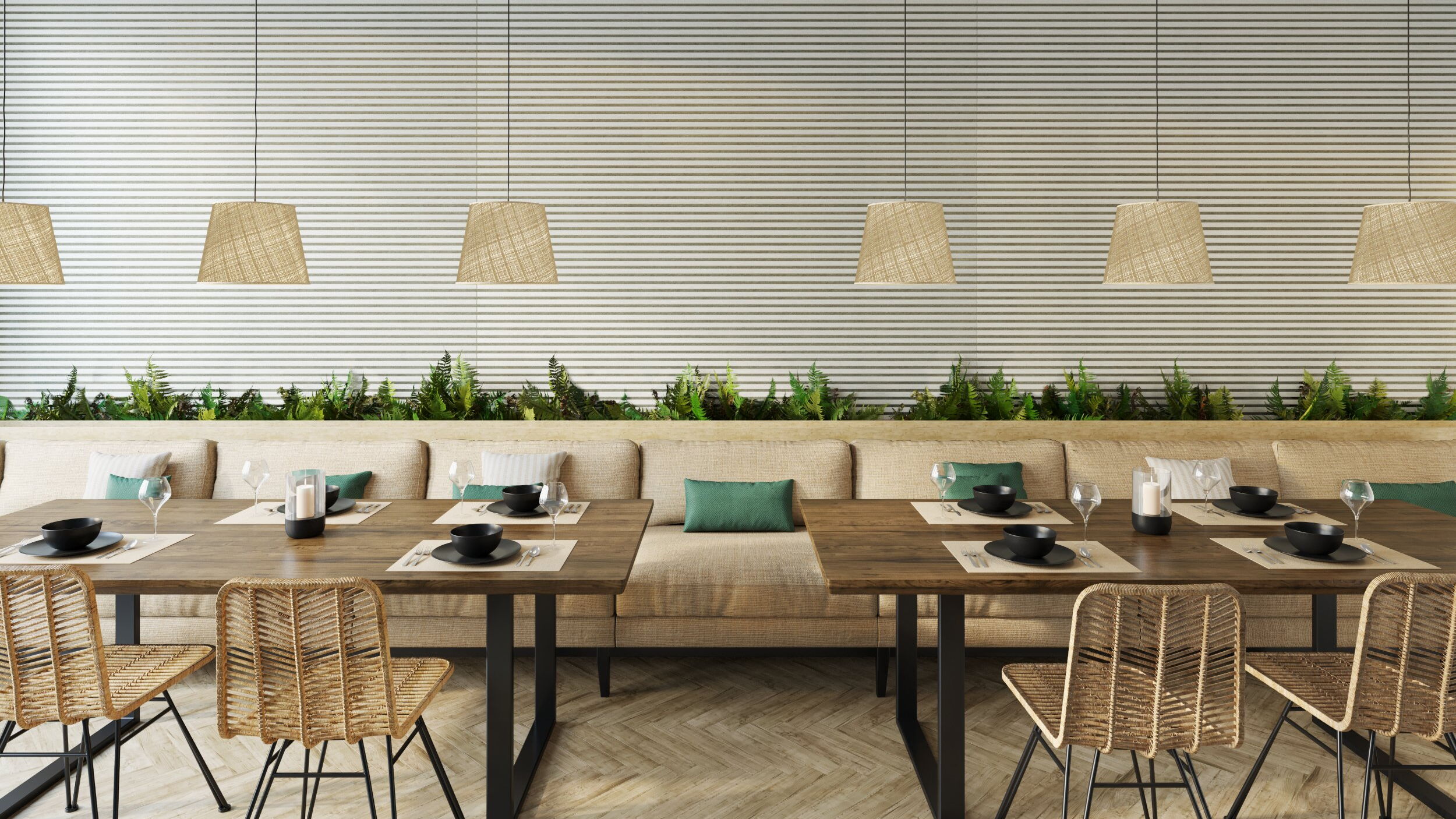

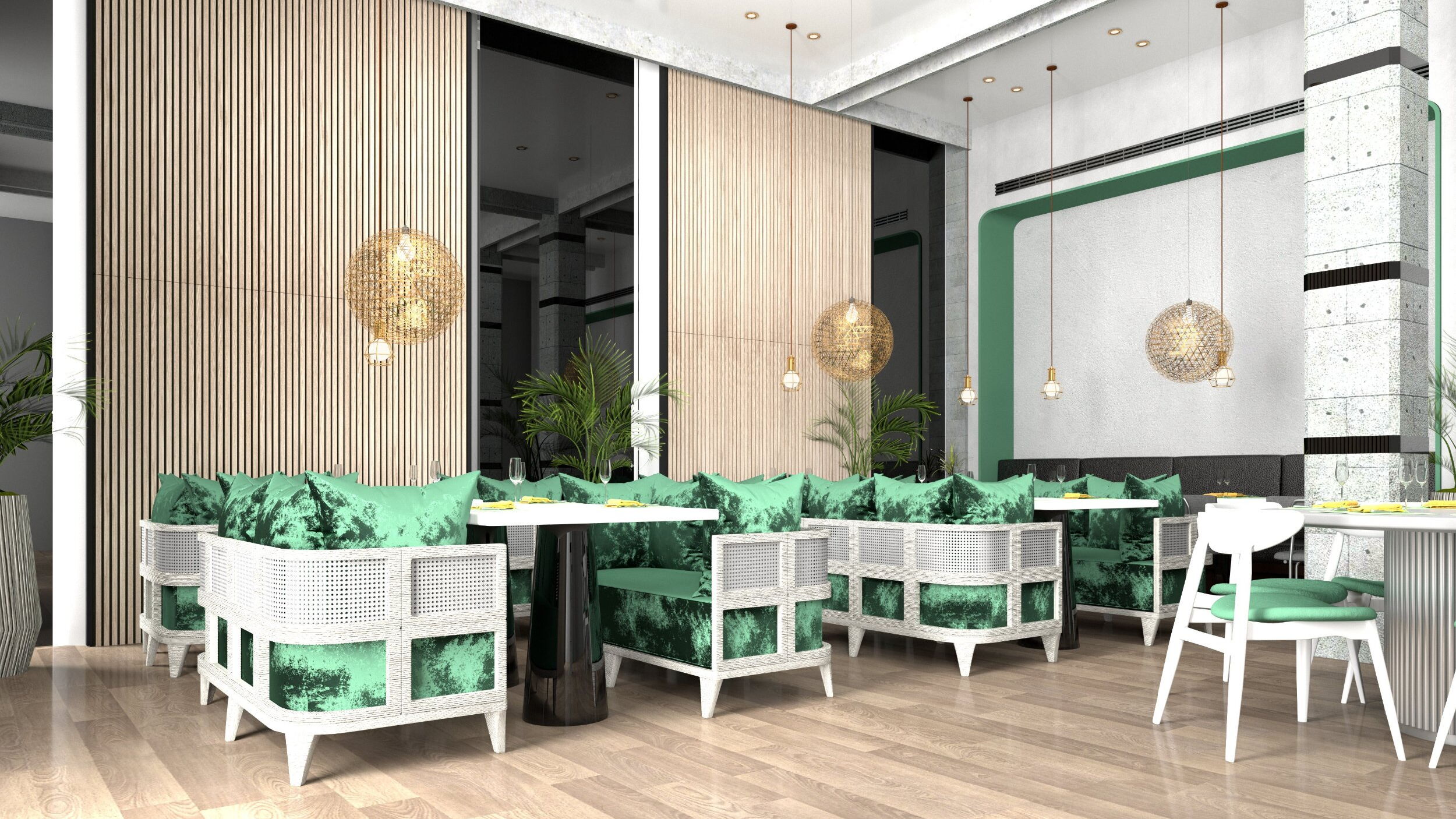

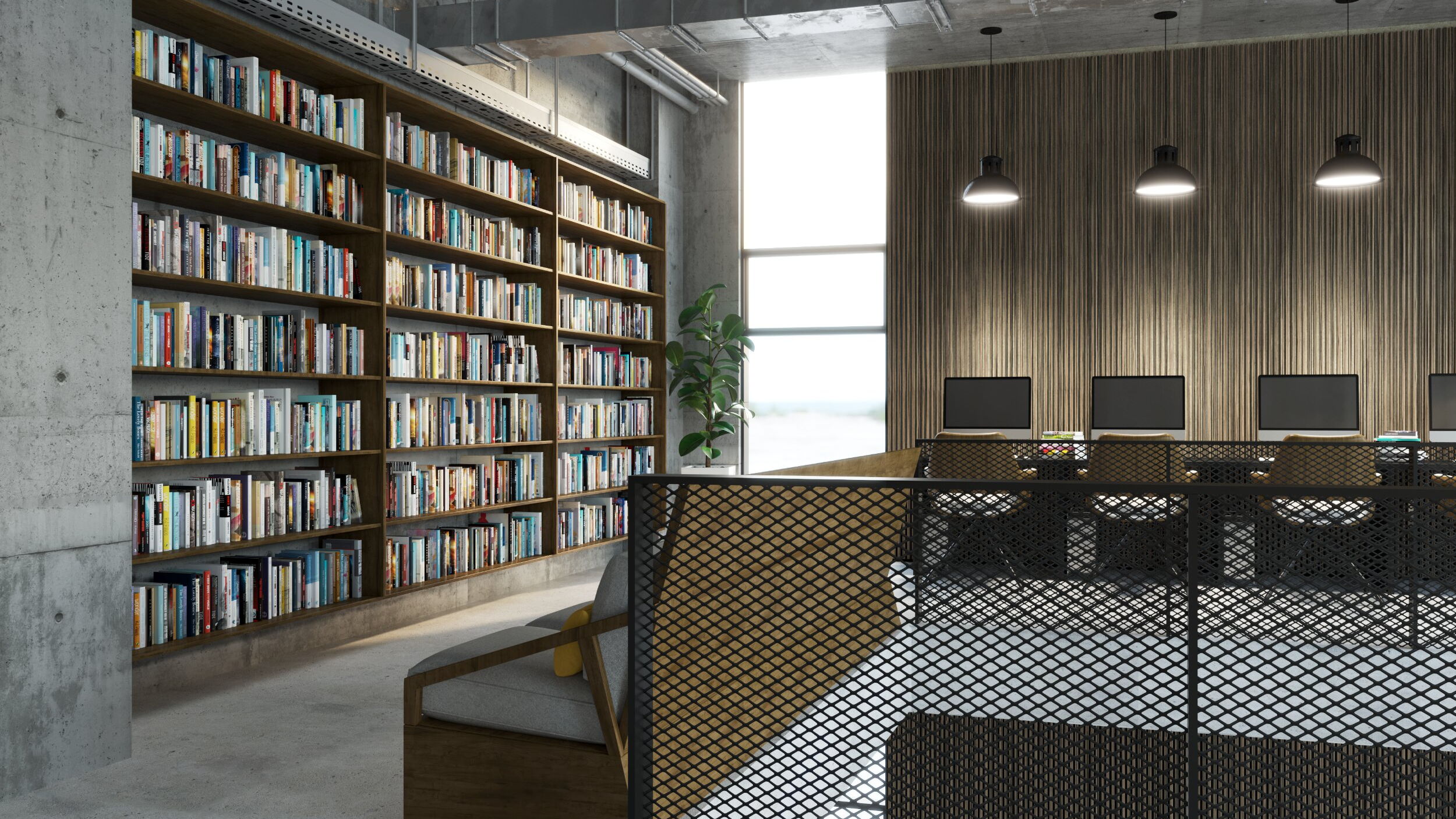

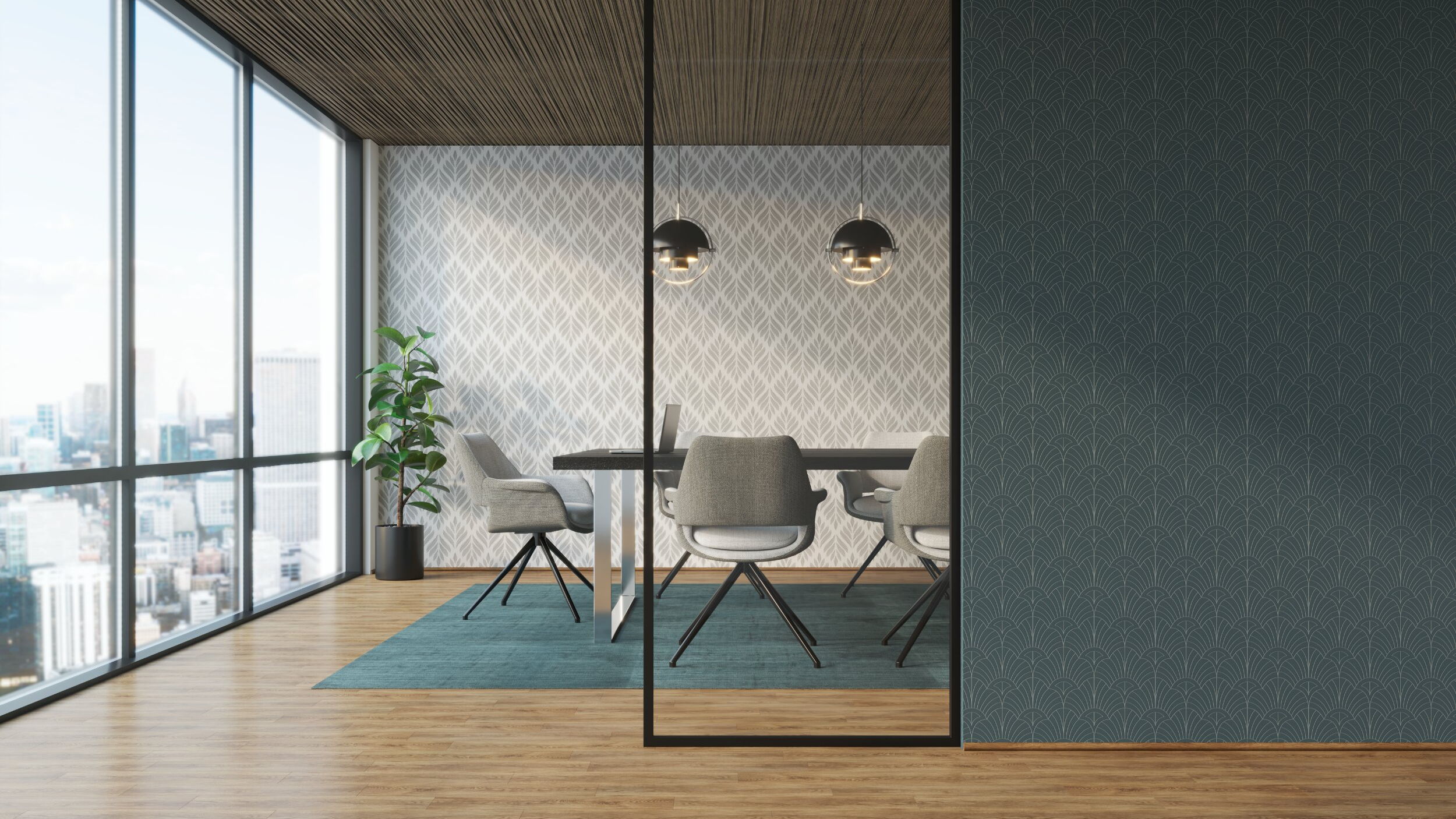

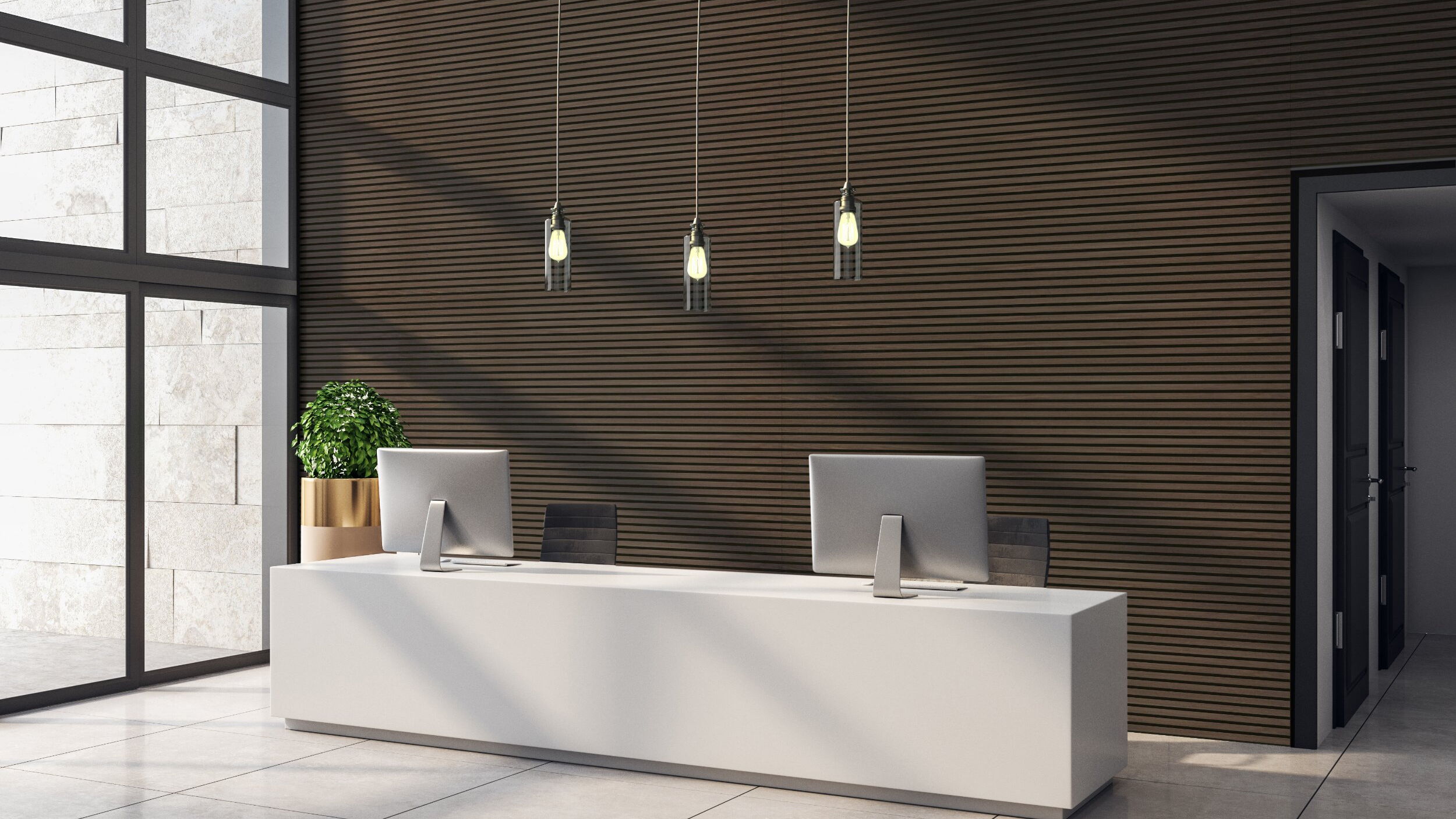

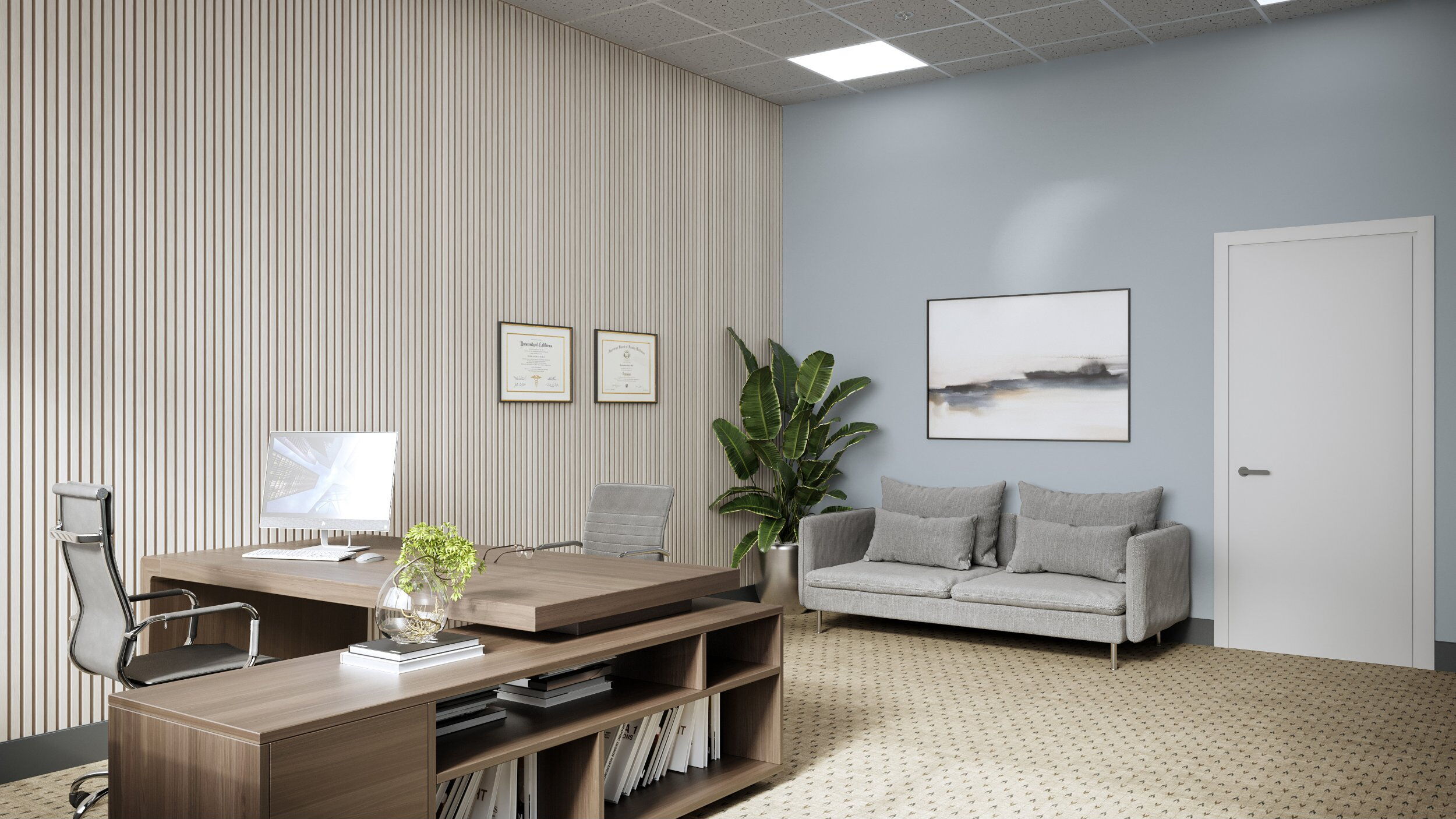

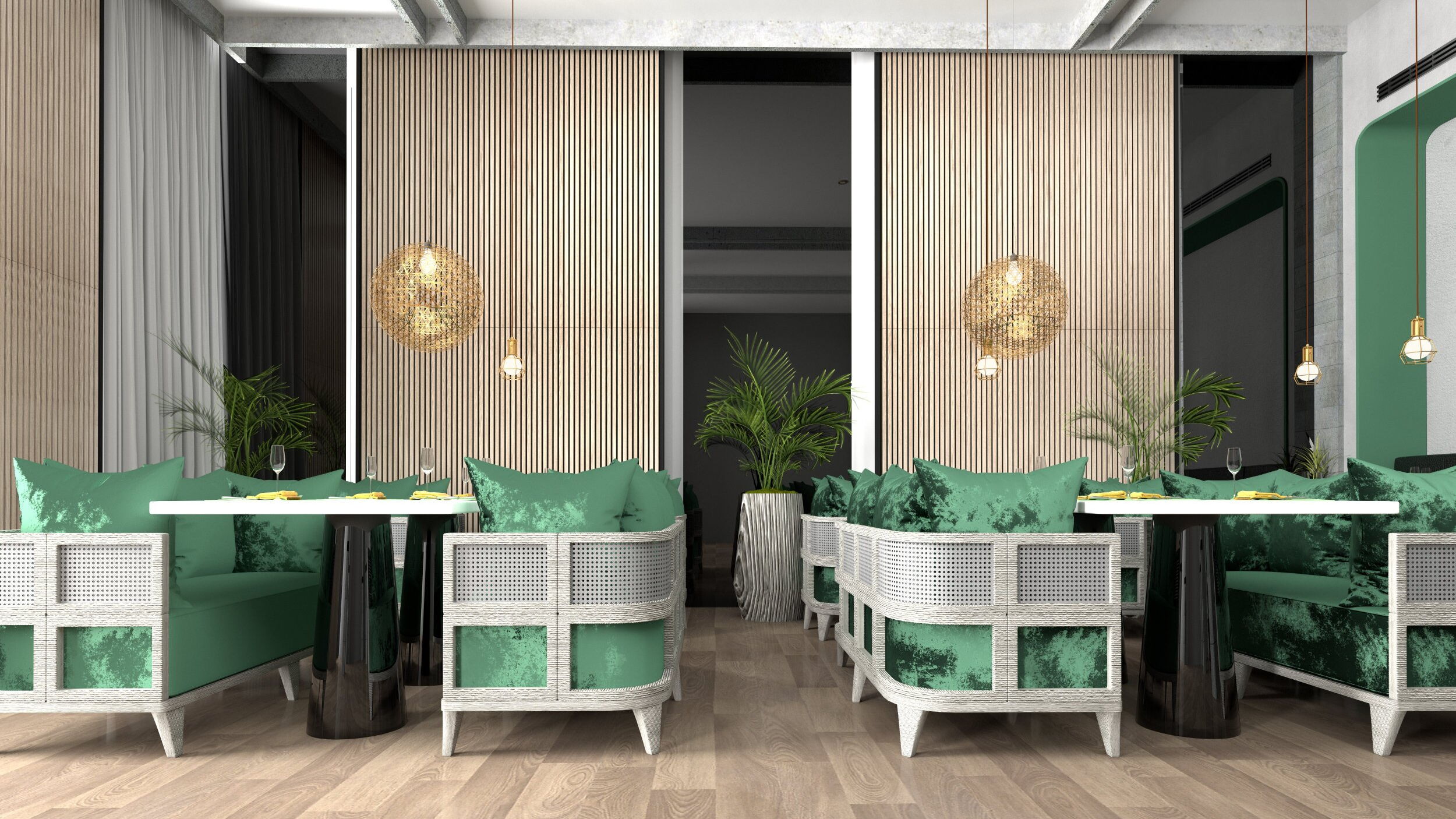

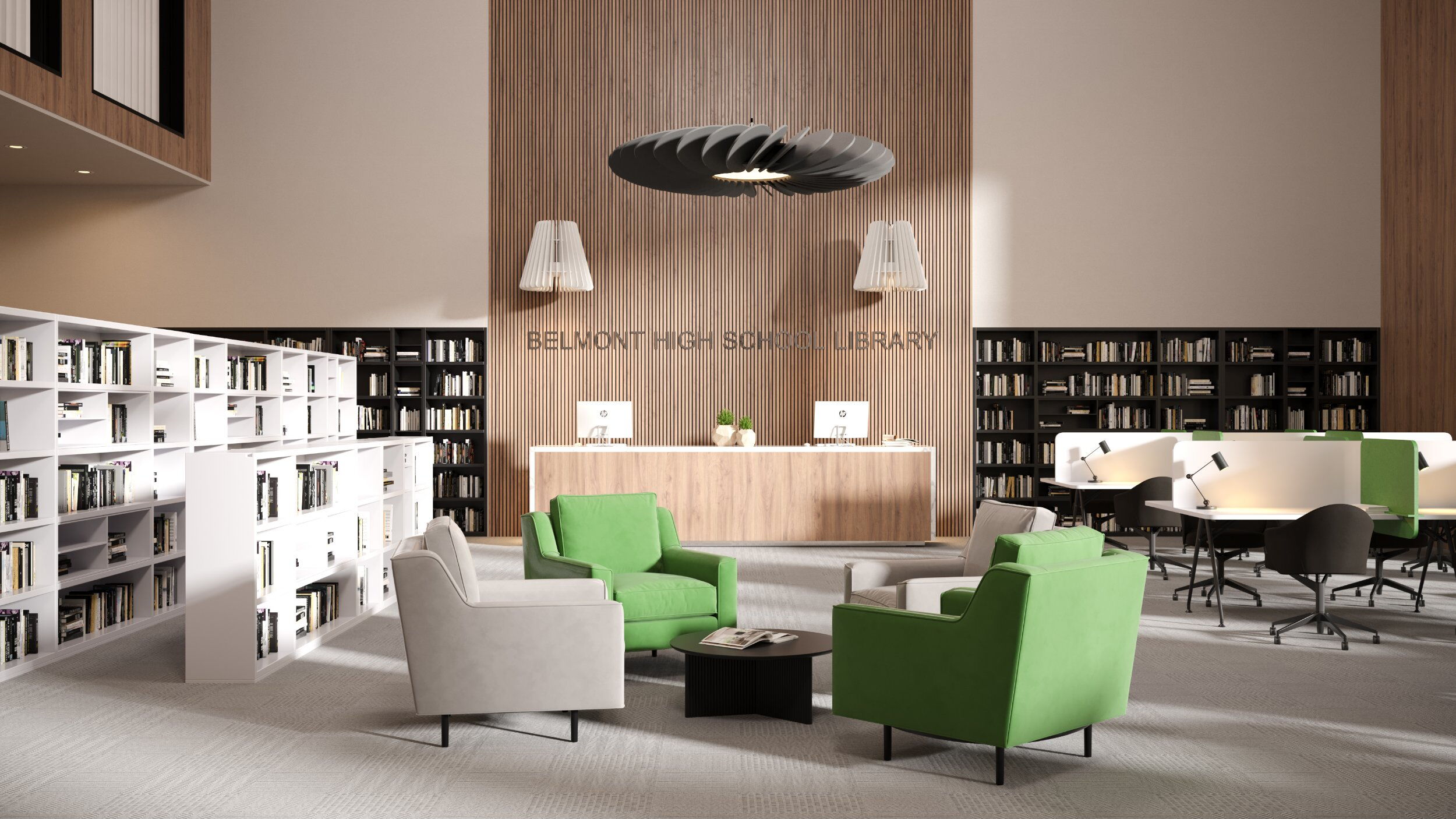

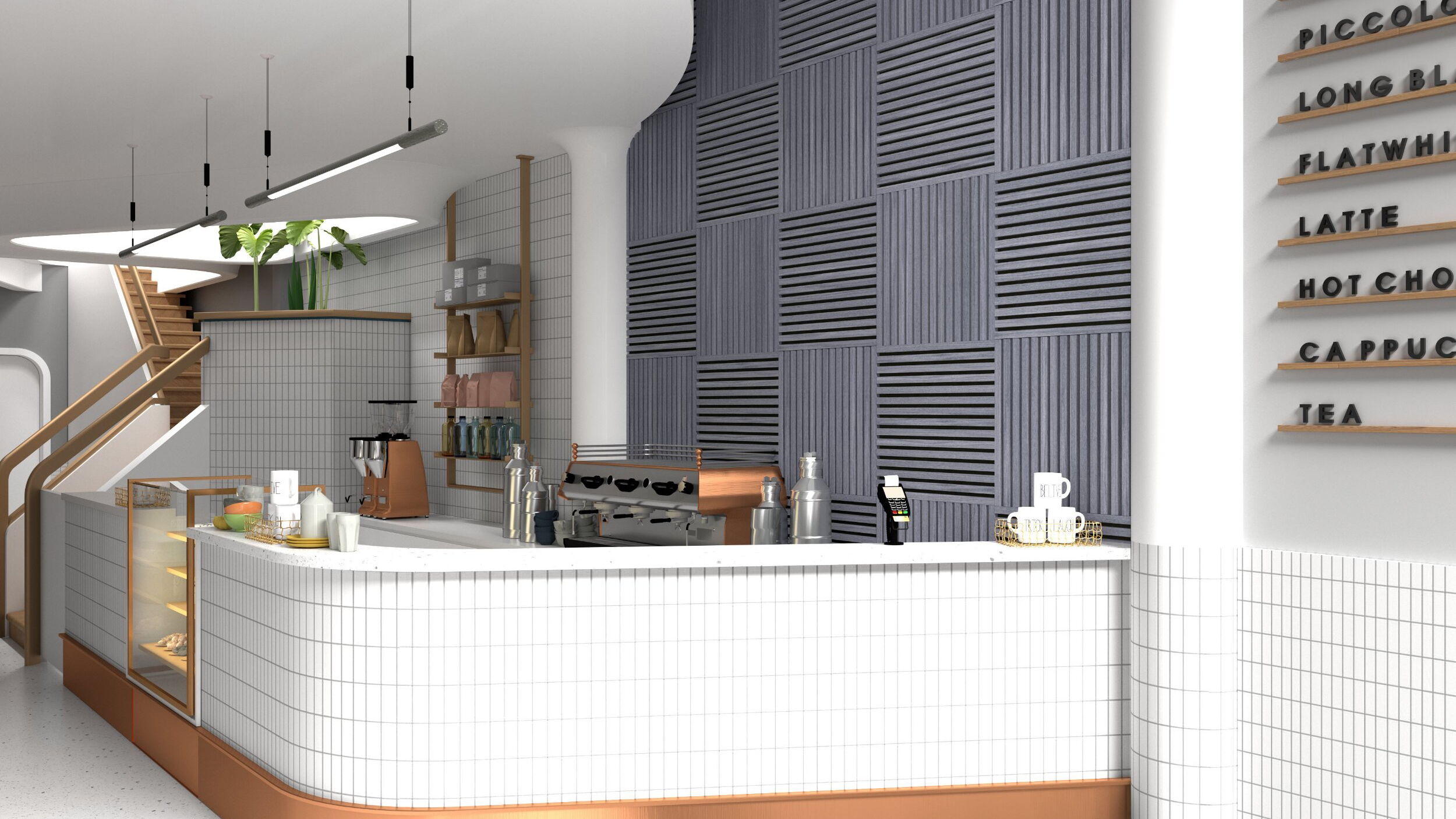

Our WoodTrends line of acoustical wood walls and ceilings products offer aesthetically pleasing finishes along with exceptional acoustic performance. Our WoodTrends products are offered a variety of perforation and veneer finishes.
Sizing
Timber-Stix arrives in 24" x 96" panels weighing 35 lbs each.
Easy Install
Timber-Stix can be installed to walls with adhesive or furring strips. Ceiling installation can be accomplished by attaching or inserting into a standard T-grid, or with furring strips.
Acoustical Performance
An NRC of up to .55 can be achieved with Timber-Stix.
Veneer Options

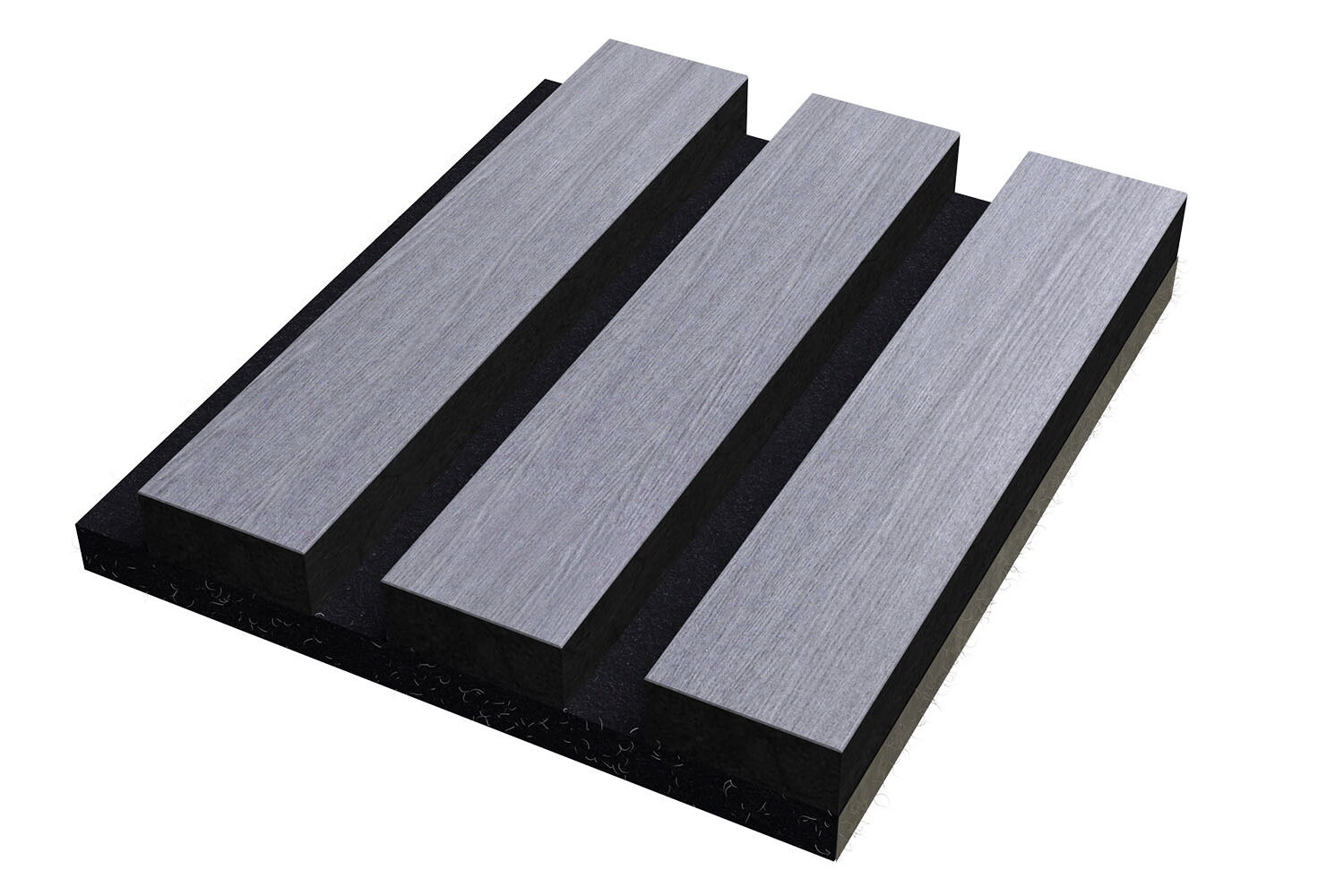

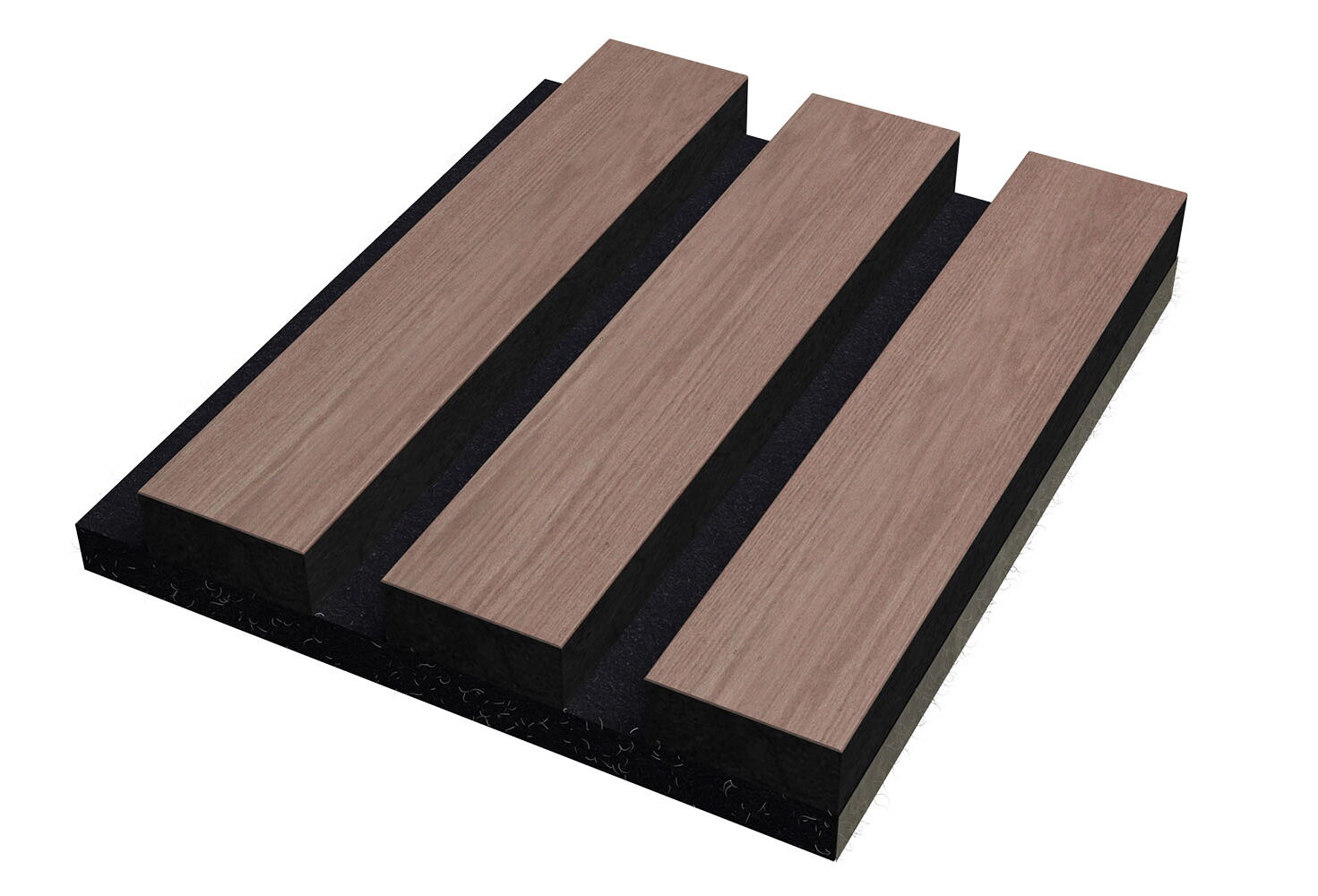

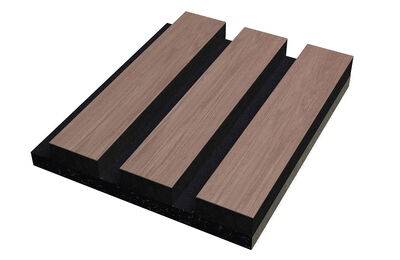

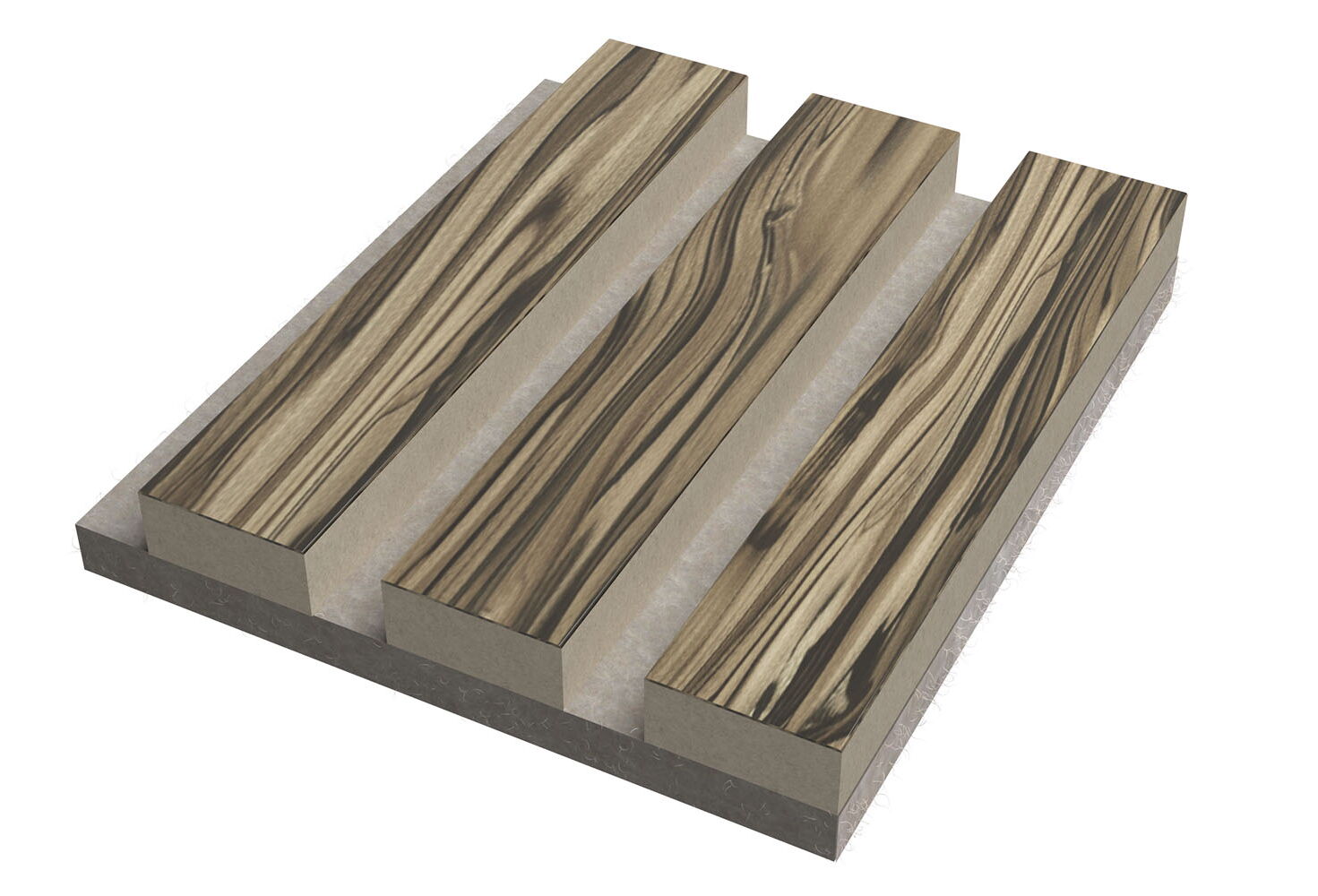

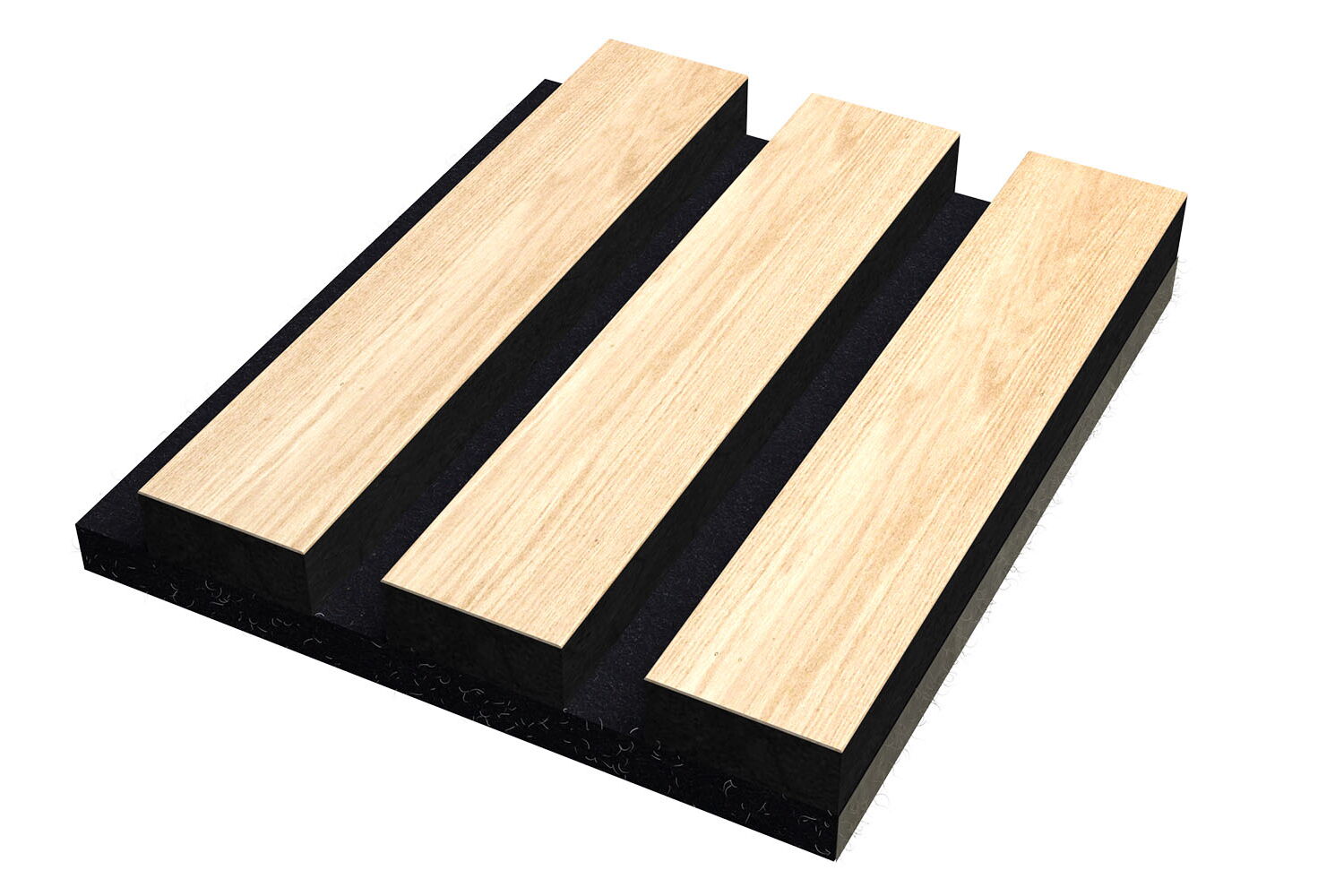

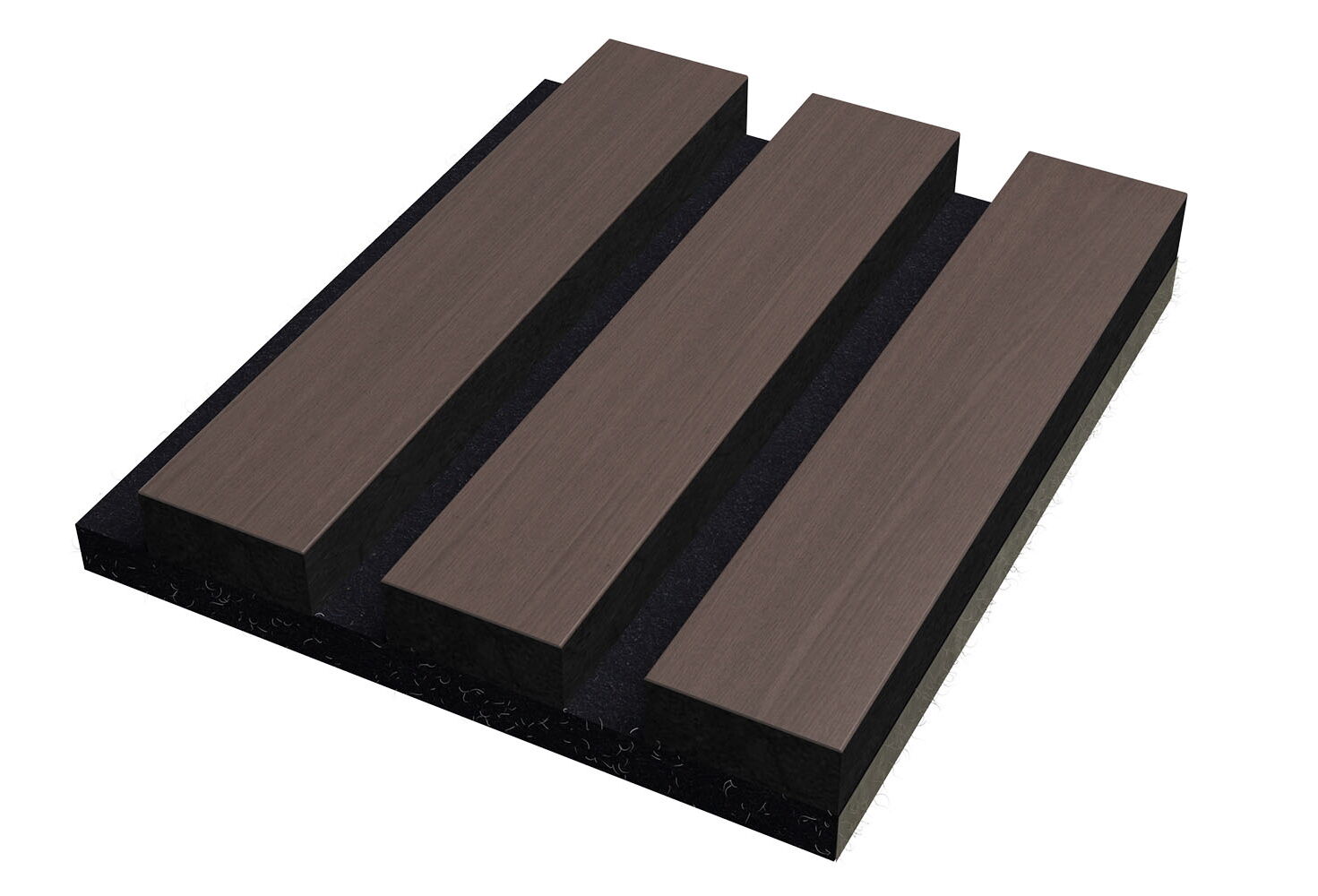

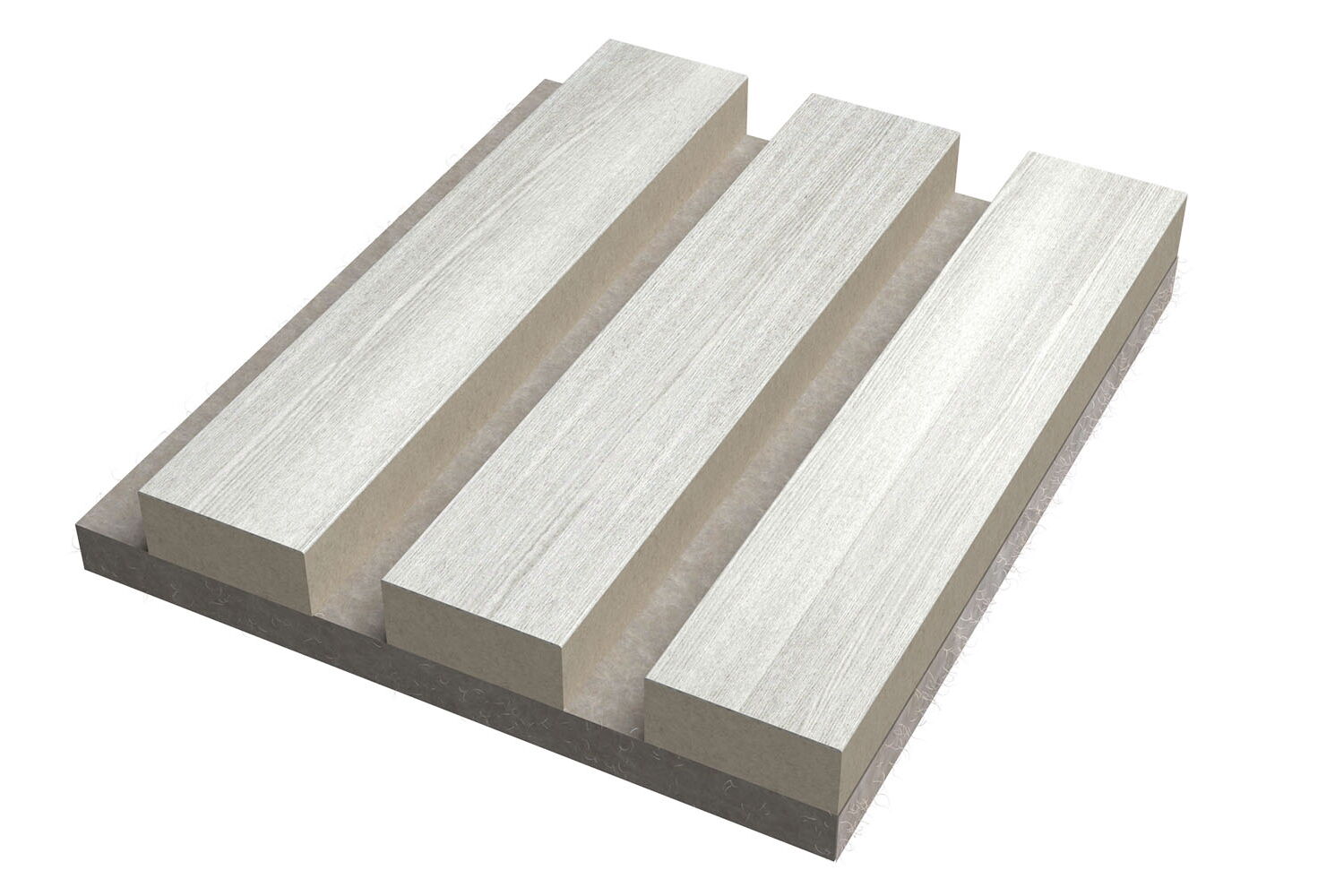

The standard finish is a natural clear lacquer that is applied to an array of standard and custom veneers. Click on the swatches below for a realistic representation of what the product will look like in the color selected.
Acoustical Data
1/3 Octave Sound Absorption Coefficients at the Octave Band Frequencies
| Frequency (Hz) | 125 | 250 | 500 | 1K | 2K | 4K | NRC |
| 0.08 | 0.08 | 0.29 | 0.70 | 1.07 | 0.83 | .55 |
Type "A" mount - flat
| Frequency (Hz) | 125 | 250 | 500 | 1K | 2K | 4K | NRC |
| 0.04 | 0.18 | 0.50 | 1.02 | 1.04 | 0.77 | .70 |
Modified Type D-20 mount - 1" airspace
| Frequency (Hz) | 125 | 250 | 500 | 1K | 2K | 4K | NRC |
| 0.17 | 0.39 | 0.87 | 1.10 | 0.81 | 0.84 | .80 |
Modified Type D-50 mount - 2" airspace
