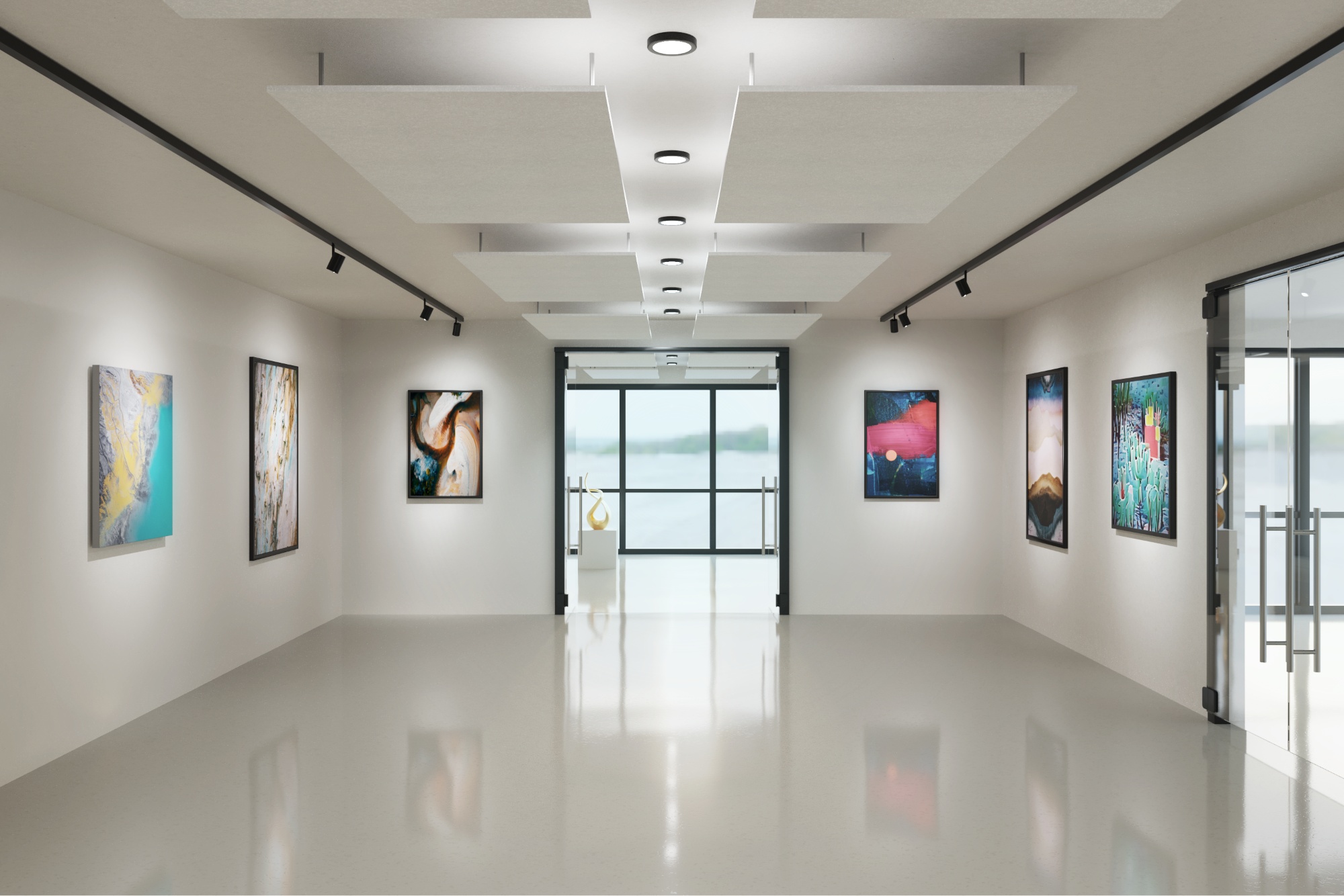

Sound Quality Baffles not only offer superior acoustical values, but are also lightweight, economical, and easy to install. All are custom made and available in a variety of sizes, finishes and colors. Explore your interior and exterior baffle options below.
Applications
- Ceiling or wall installations
- Interior or Exterior applications
Sizing
Choose standard sizes displayed below or work with one of our team members to create a custom size specific to your needs.
Easy Install
Our baffles are easy to hang, take down or move. Installation methods include aircraft cable, threaded rod or suspension from integrated stainless steel grommets or D-Rings, depending on the product selected or specified.
Acoustical Performance
Our Sound Quality Baffles can offer up to an NRC of 1.25.
Available Products in the Architectural Baffles Line

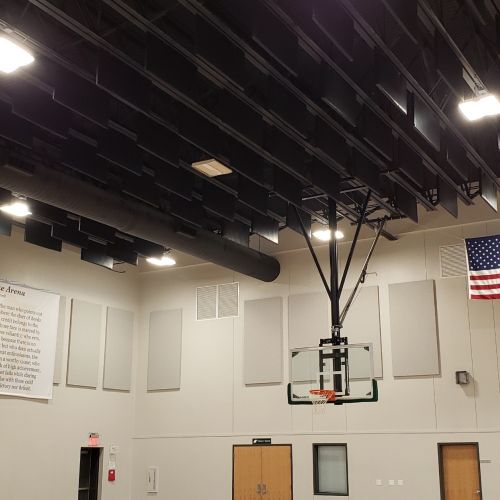

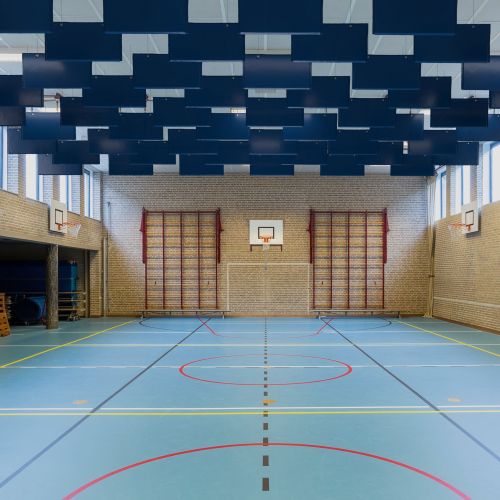

SR-100 Semi-Rigid Baffles
- An economical solution to reverberation issues in large spaces.
- Acoustical Performance: Variable, See Data Sheet
- Fire Rating: Class A per ASTM E-84
- 1.5" or 2” thicknesses | Custom sizes up to 4’ x 10’
- Stitched edges
- Mounting options: Nickel or stainless steel grommets

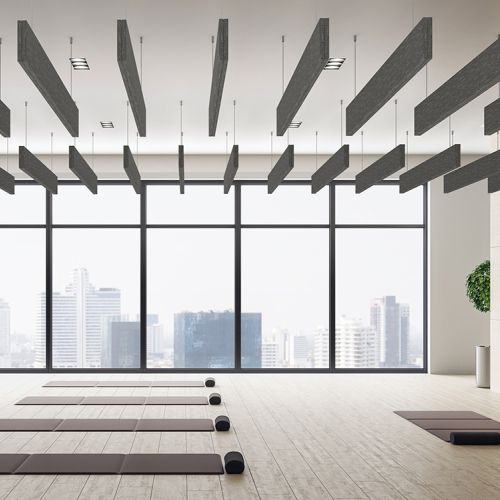

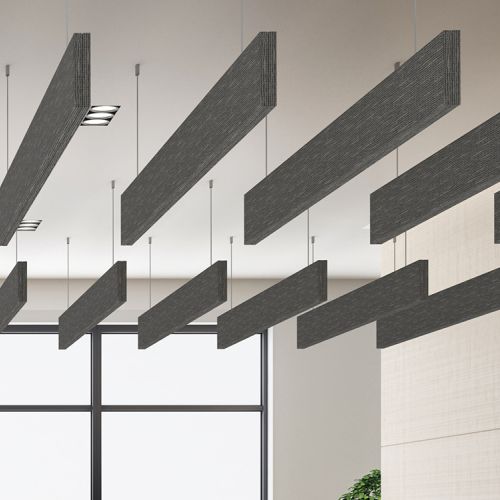

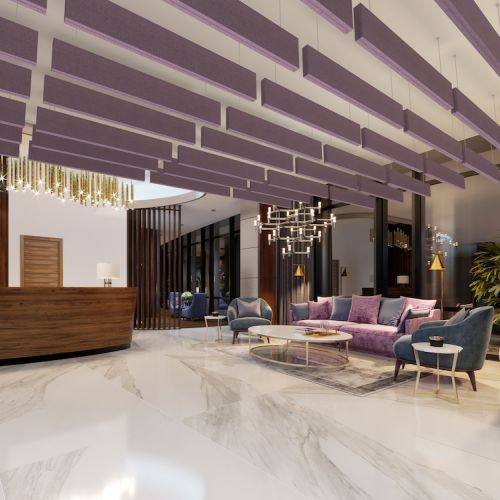

R-100 Rigid Baffles
- Ideal for applications requiring sharp details and high acoustical ratings.
- Acoustical Performance: Variable, See Data Sheet
- Fire Rating: Class A per ASTM E-84
- 1" or 2” thicknesses | Lengths up to 120” and heights up to 48”
- Chemically hardened edges
- Mounting option: Integrated D-rings

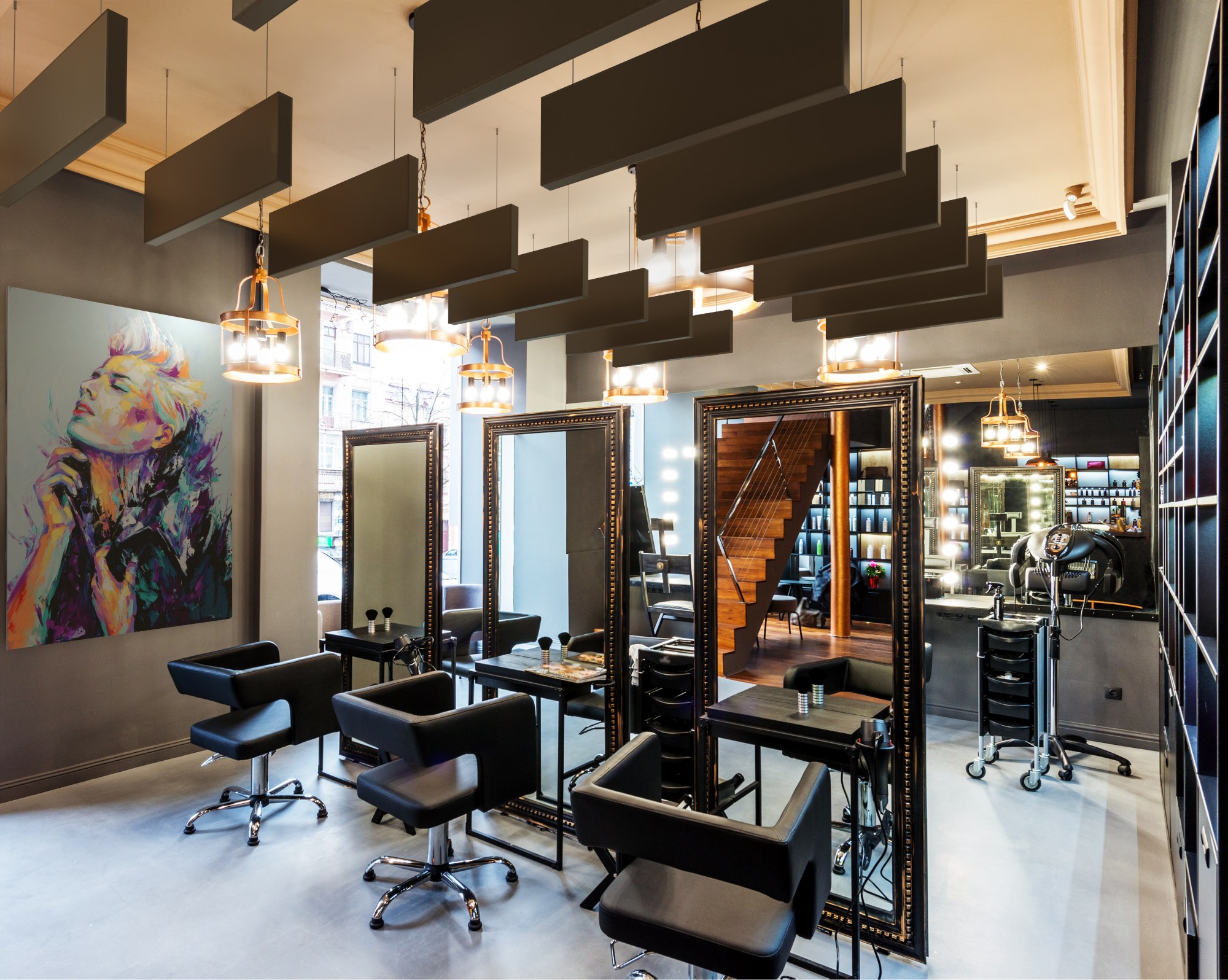

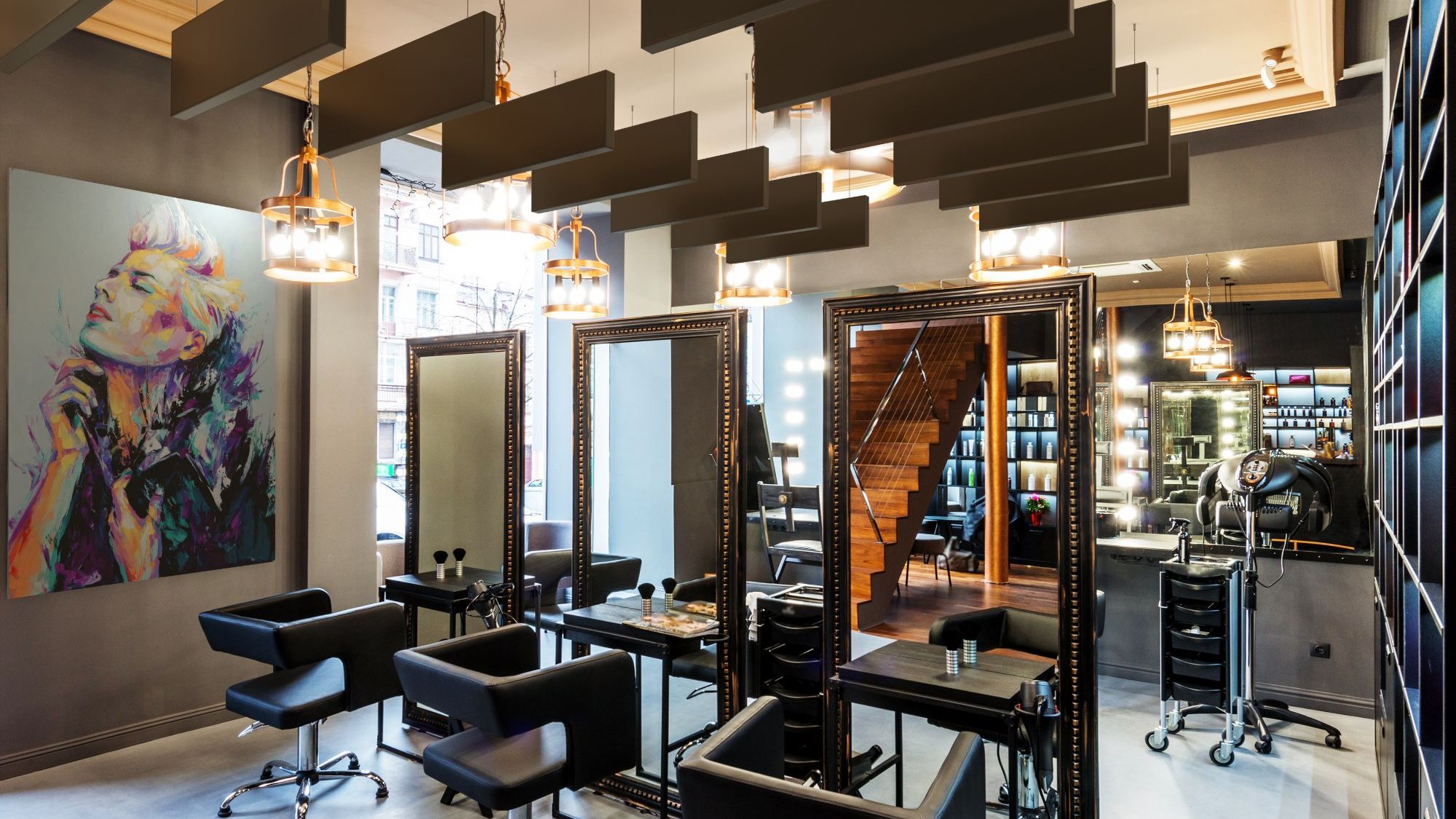

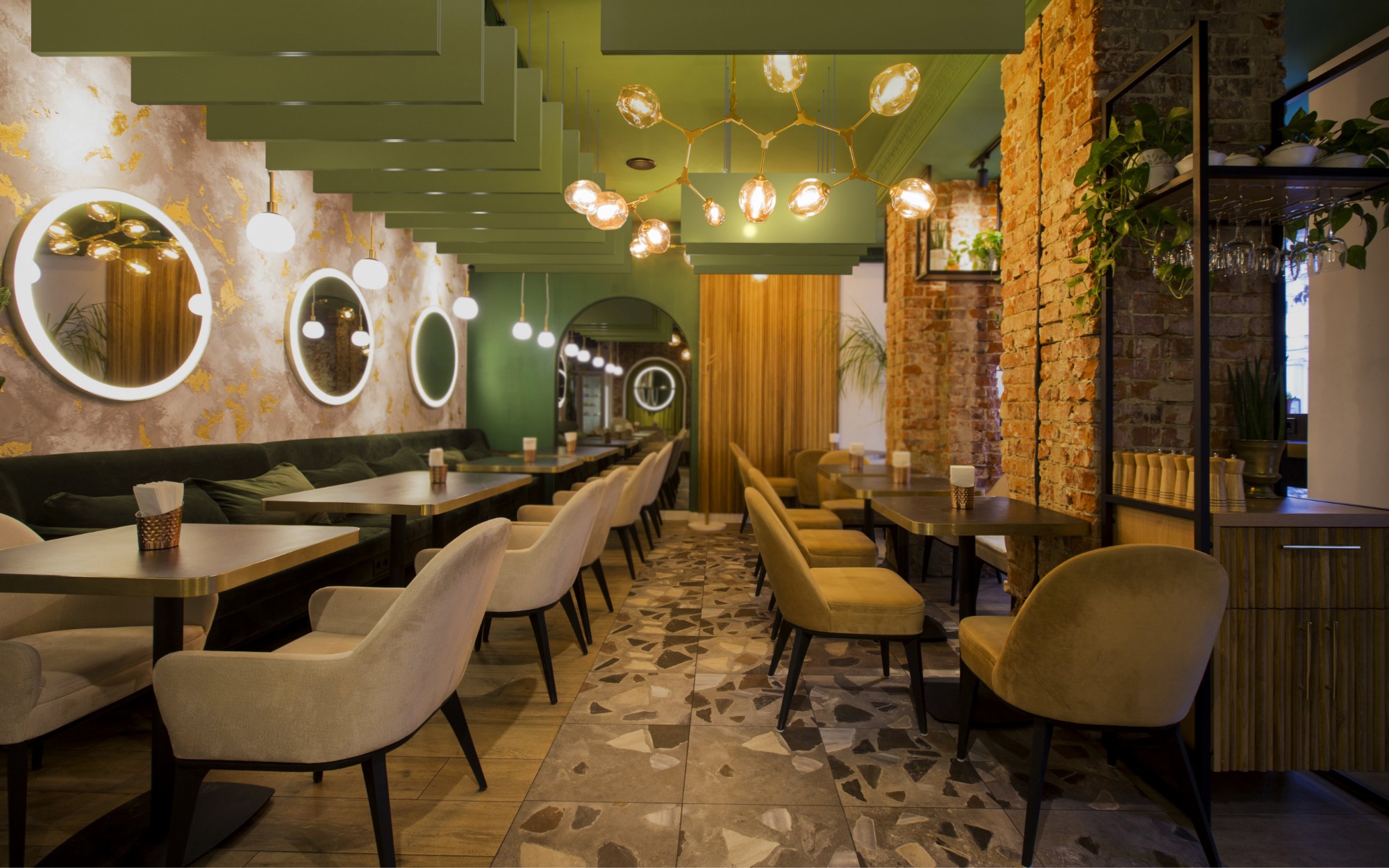

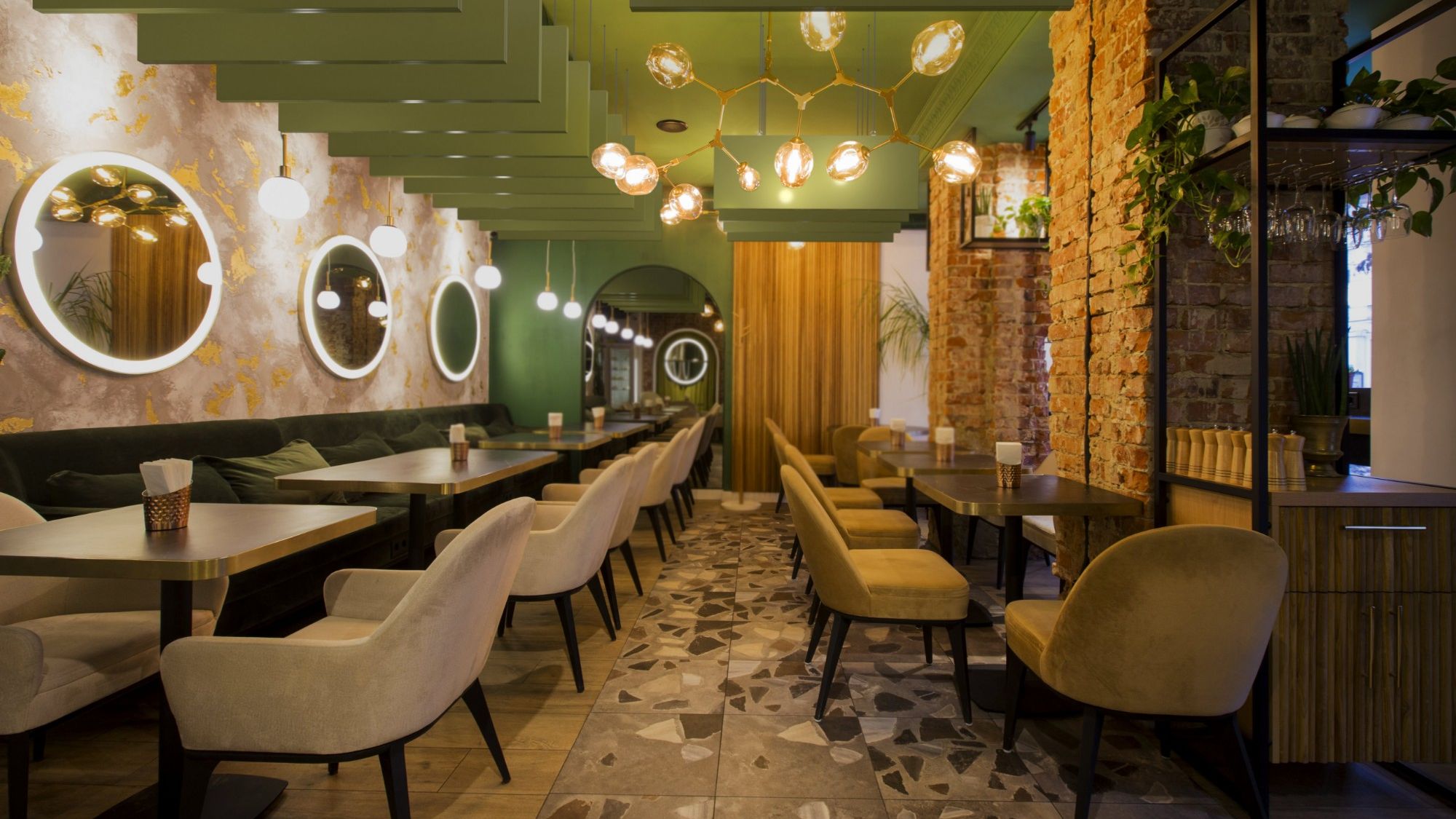

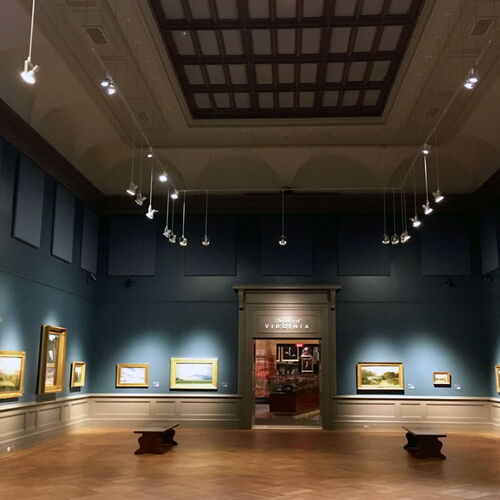

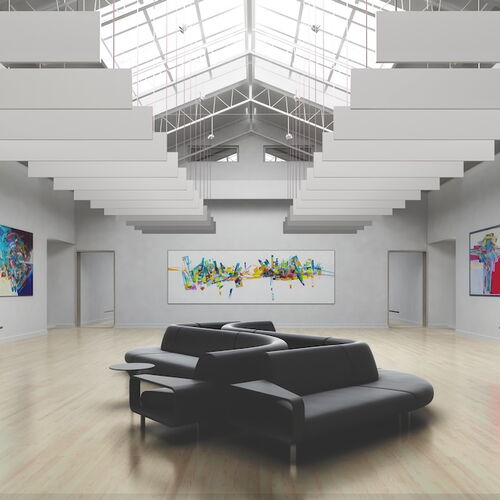

Chroma® Paintable Baffles
- Ideal for applications requiring sharp details and high acoustical ratings.
- Acoustical Performance: Variable, See Data Sheet
- Fire Rating: Class A per ASTM E-84
- 1" or 2” thicknesses | Lengths up to 120” and heights up to 48”
- Chemically hardened edges
- Mounting option: Integrated D-rings

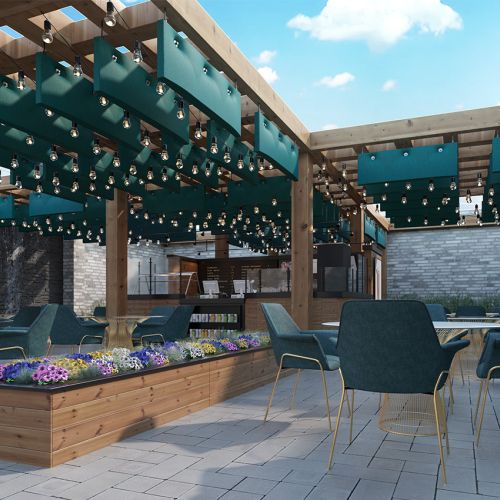

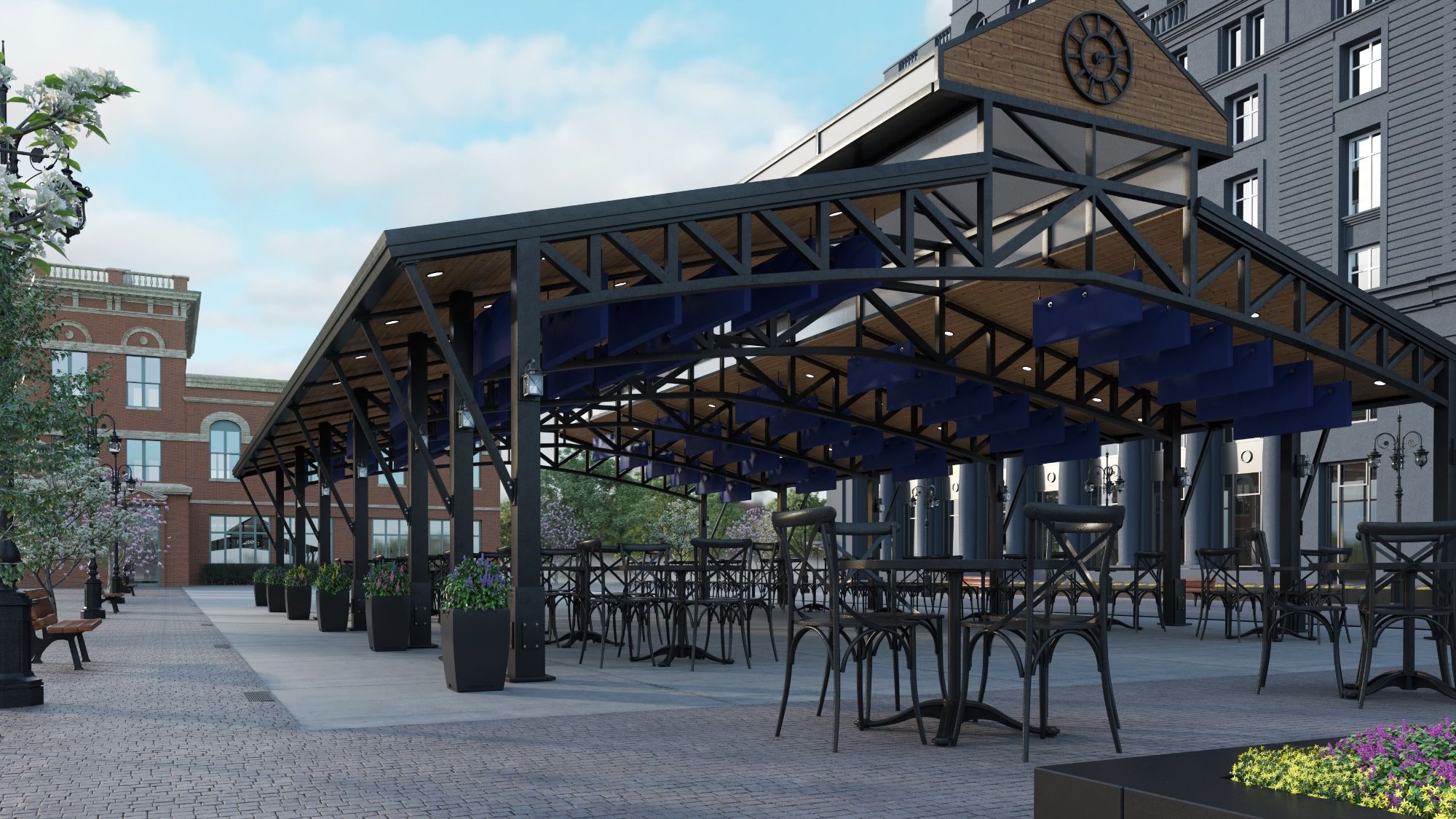

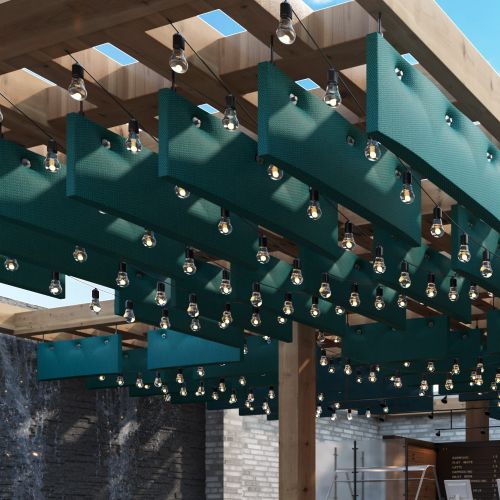

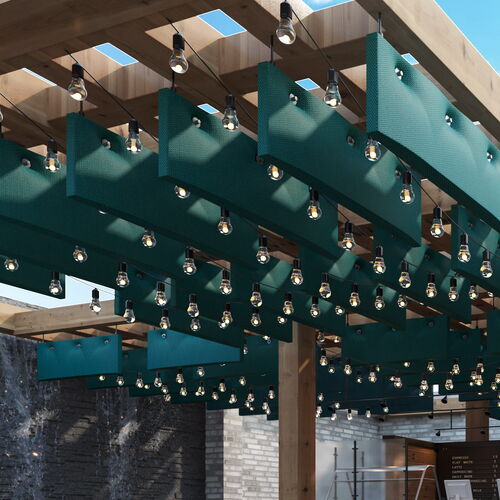

Aerial SR-100 Exterior-Grade Baffles
- Weather resistant, fade resistant and mildew resistant.
- NRC: .80
- Fire Rating: Class B
- Standard thickness: 2” | Available in custom sizes up to 4’ x 10’
- Stitched with TENARA® thread
- Mounting option: Stainless steel grommets

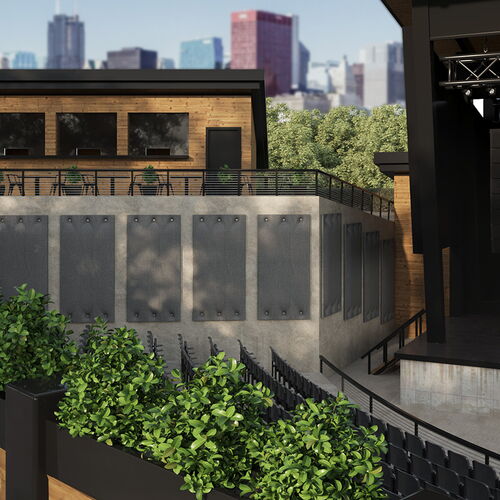

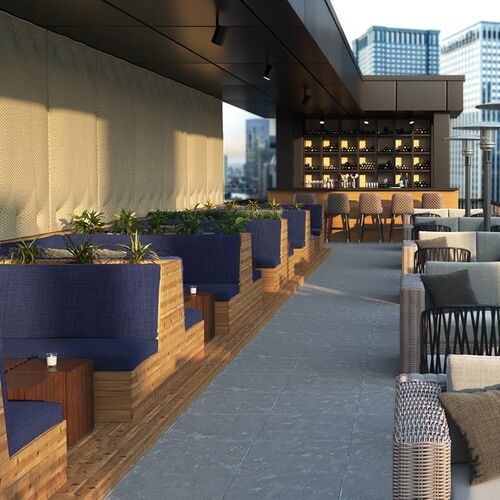

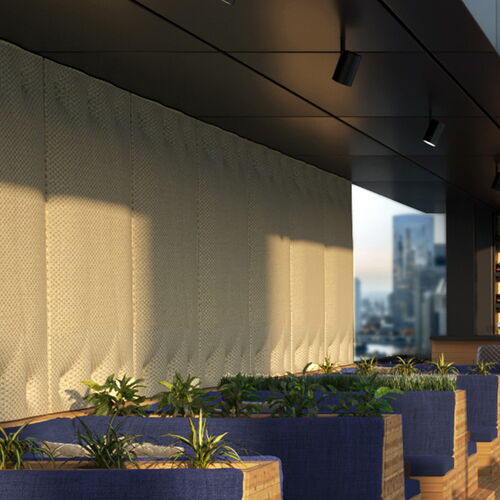

Aerial SR-100 Exterior-Grade Wall Baffles
- Weather resistant, fade resistant and mildew resistant.
- NRC: .70
- Fire Rating: Class B
- Standard thickness: 2” | Available in custom sizes up to 4’ x 10’
- Stitched with TENARA® thread
- Mounting option: Stainless steel grommets

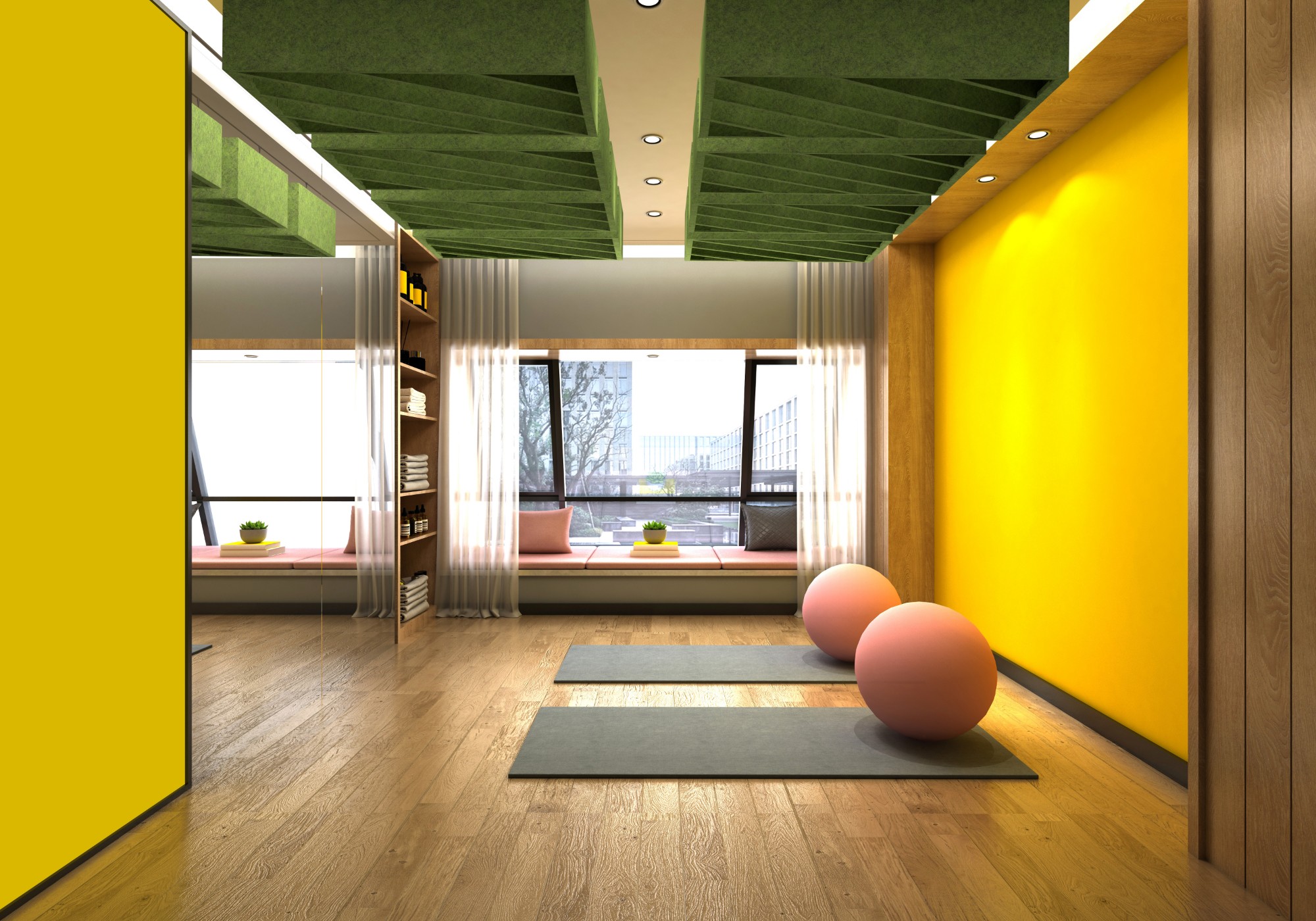

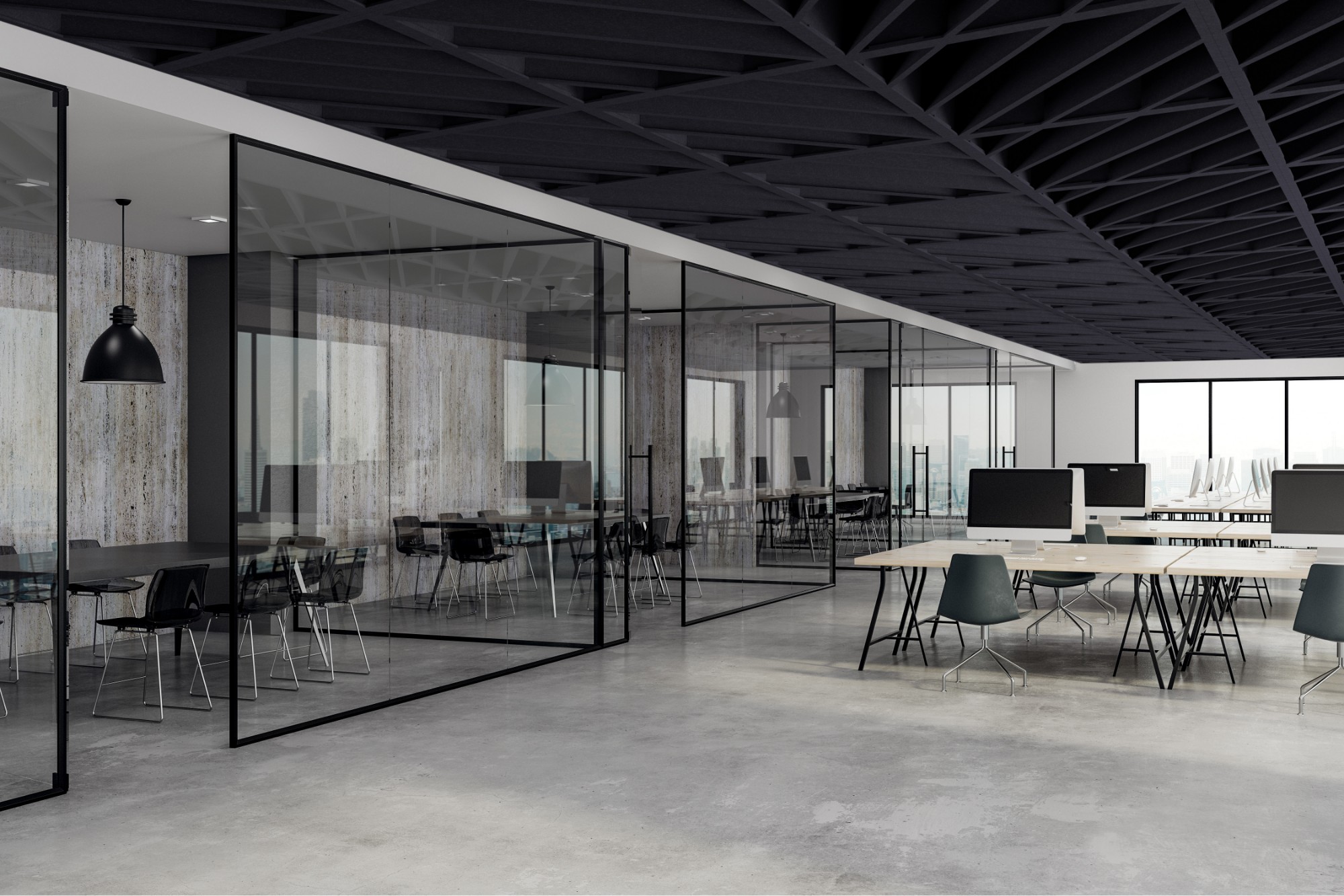

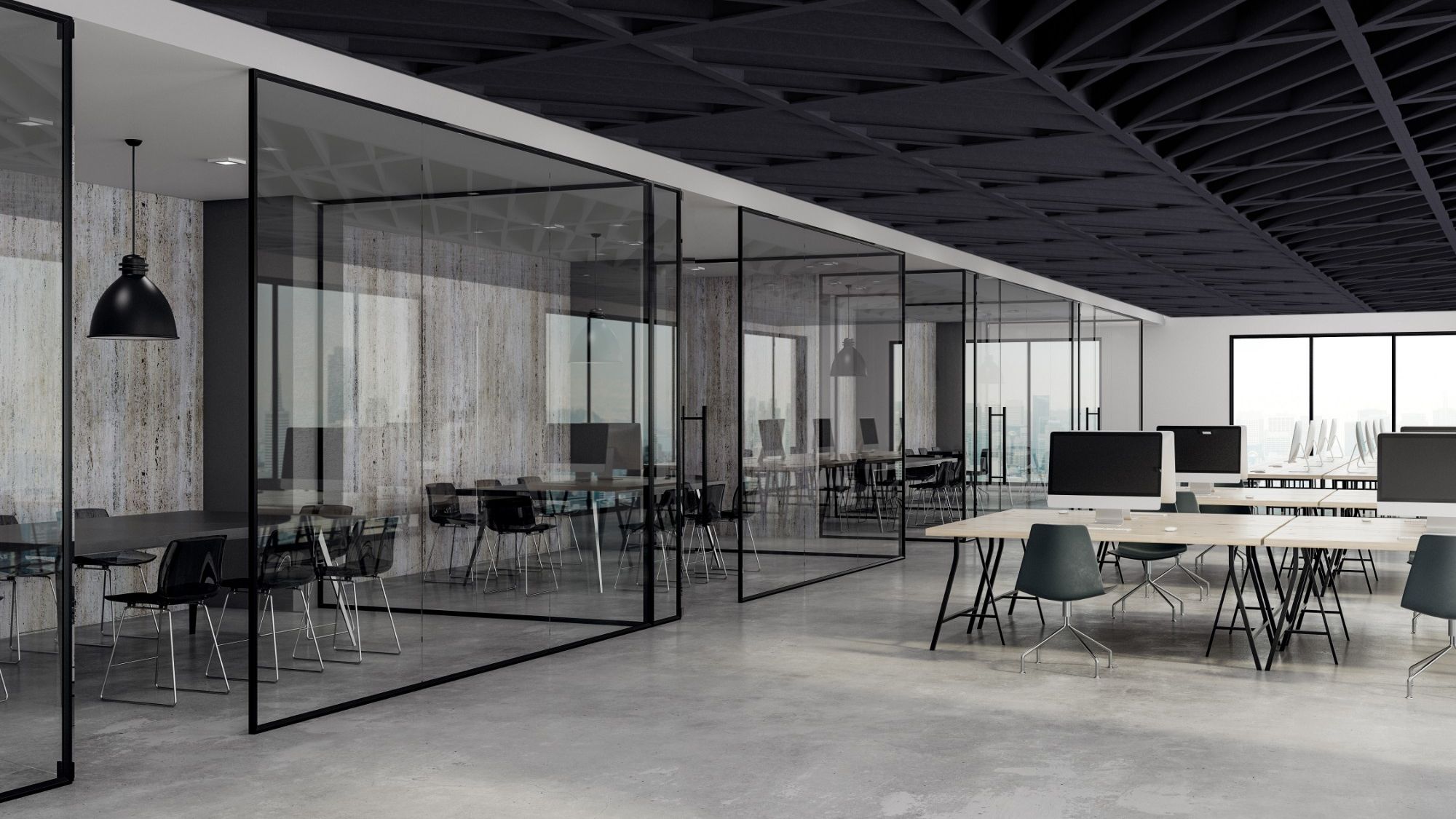

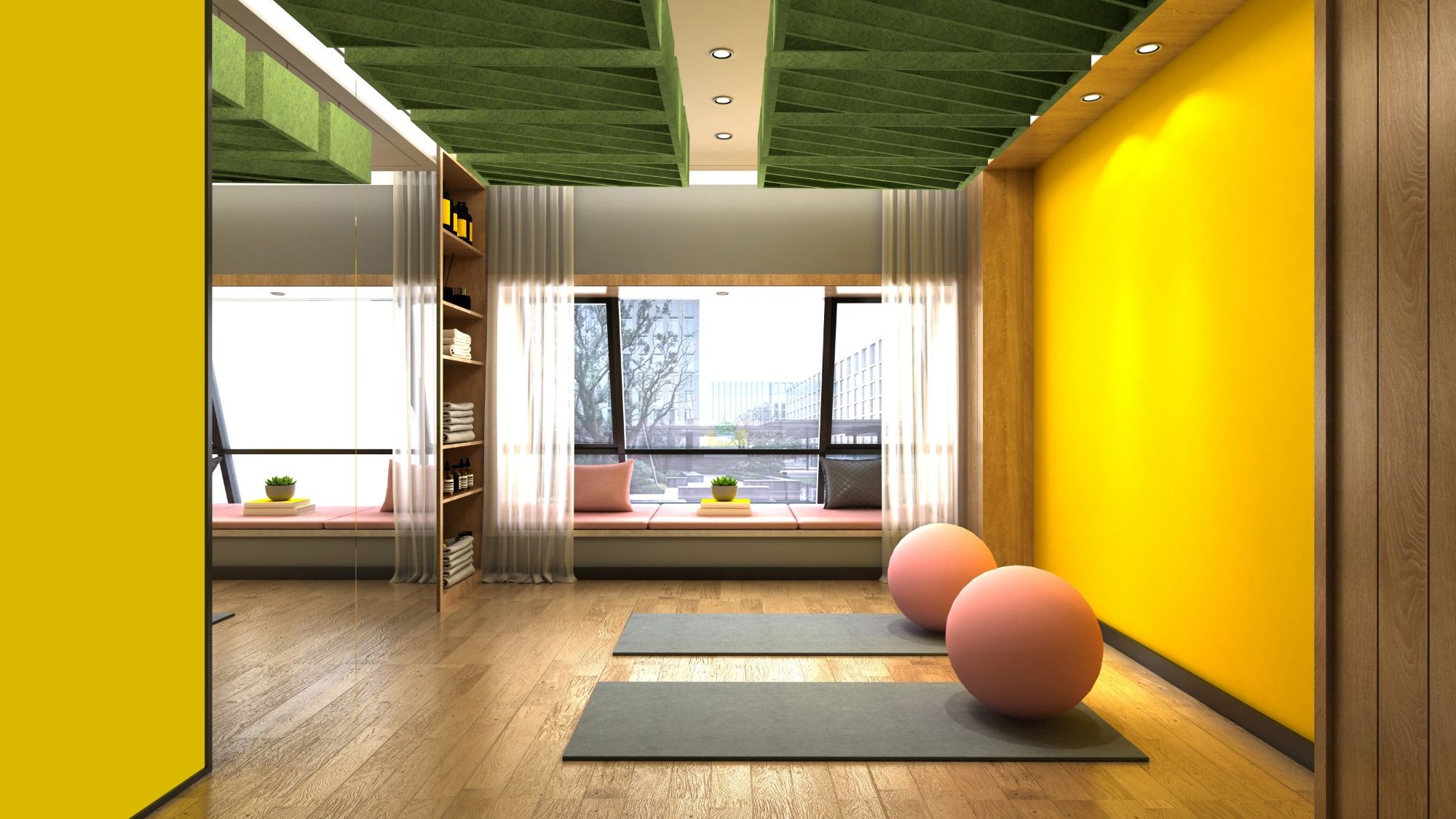

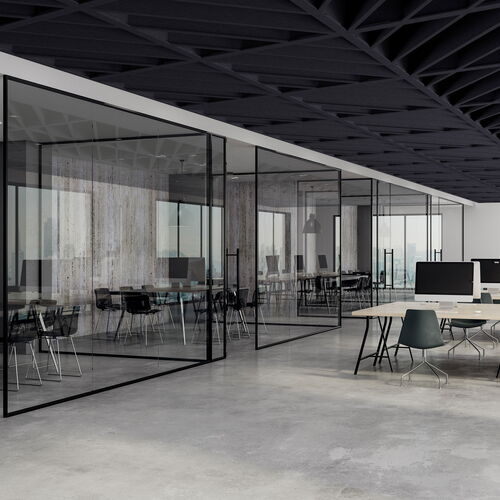

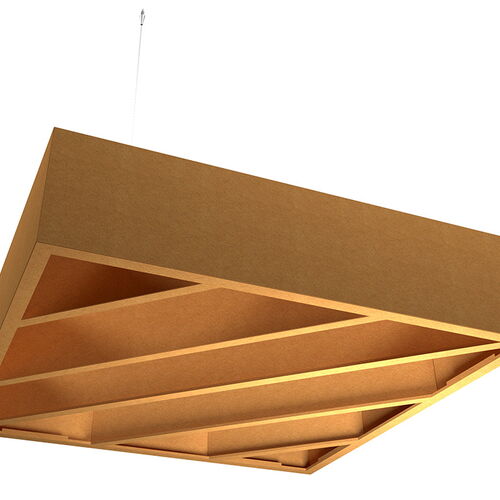

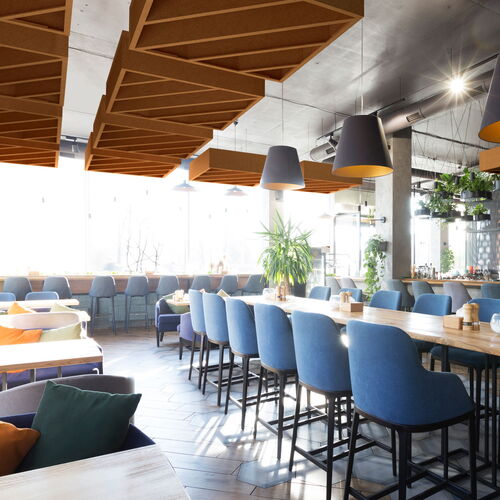

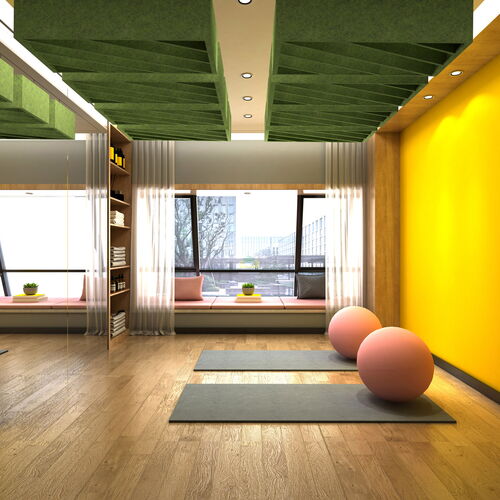

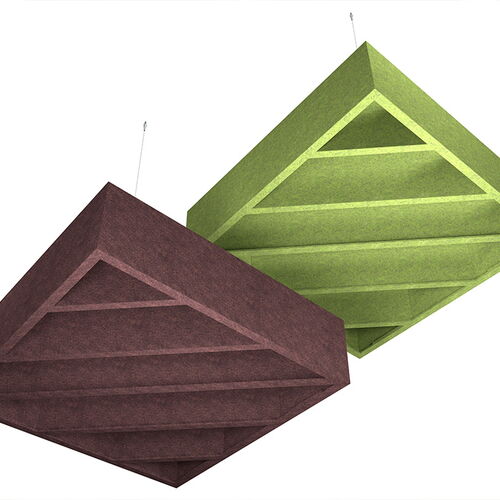

Oblix PET Baffles
- Distinctive lines create interesting simplicity.
- NRC: 1.25
- Fire Rating: Class A per ASTM E-84
- Standard size: 47” x 47” x 12”
- Square edges
- Mounting option: Aircraft cable

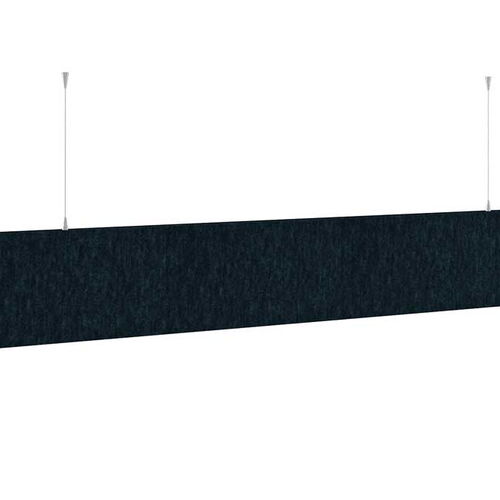

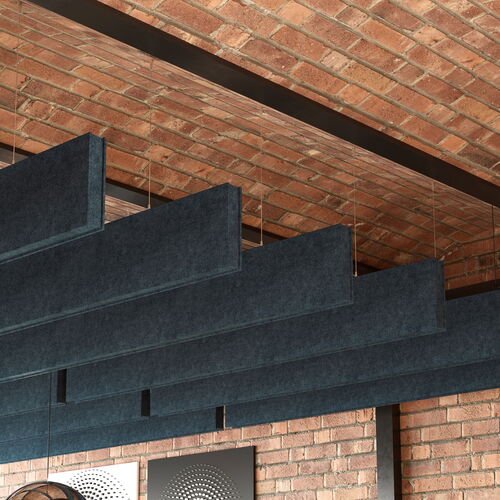

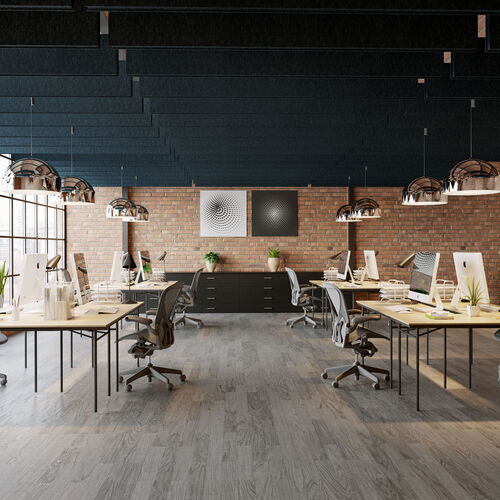

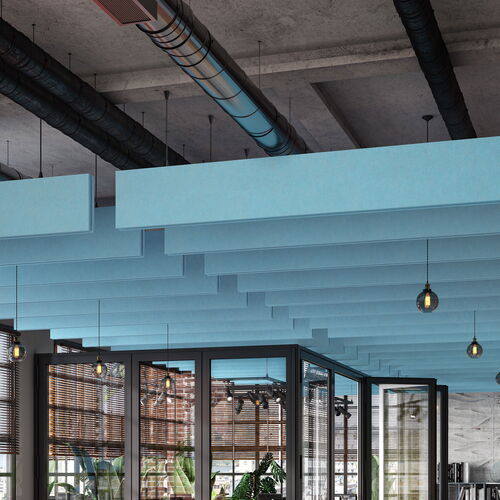

Vertex PET Baffles
- Constructed with two layers of 9mm PET and a center air space for sound absorption.
- NRC: 1.10
- Fire Rating: Class A per ASTM E-84
- Standard sizes: 48”x 12”; 48”x 16”; 48”x 24”; 96”x 12”; 96”x 16”; 96”x 24”
- Square edges
- Mounting options: Aircraft cable or threaded rod

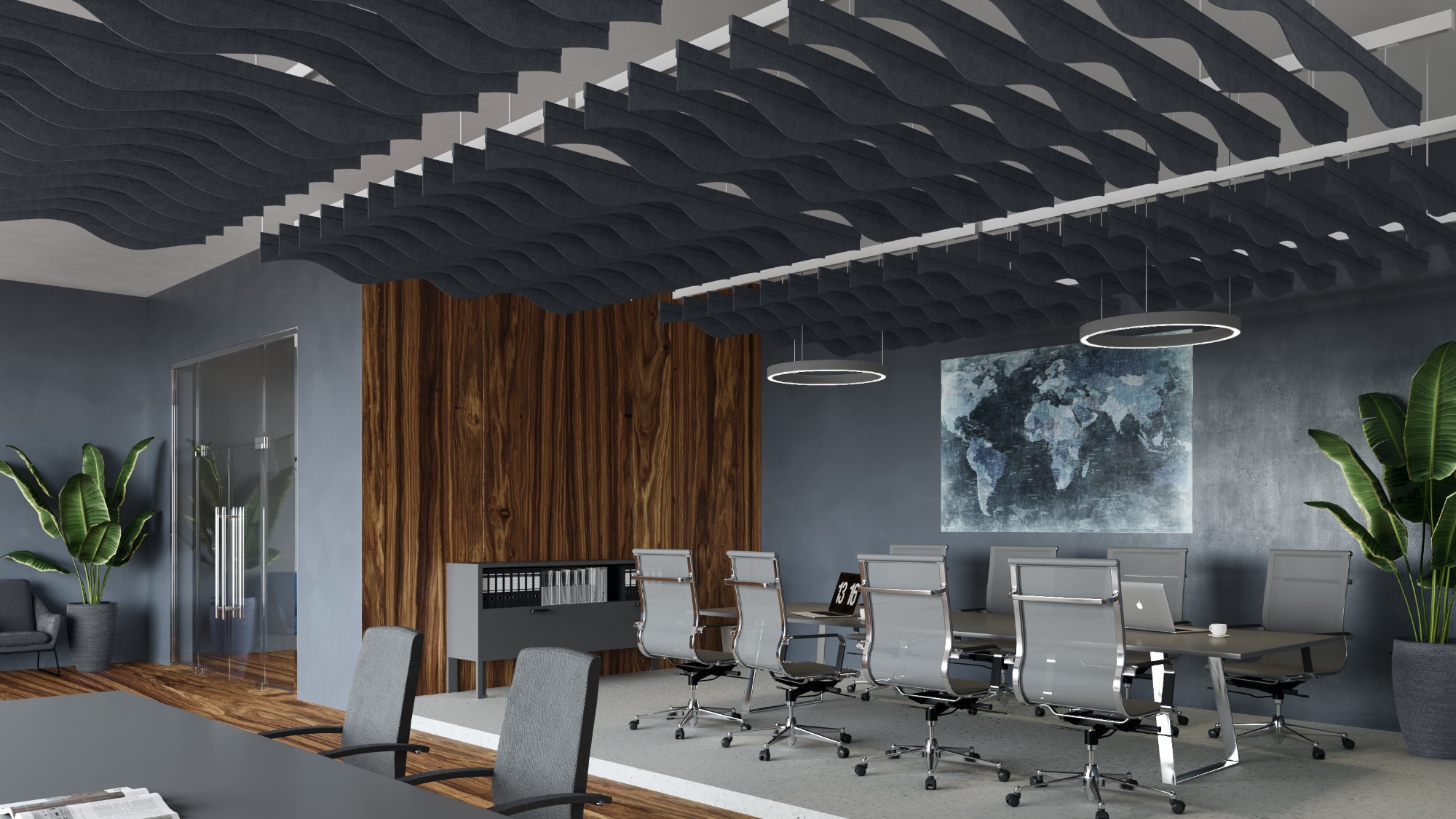

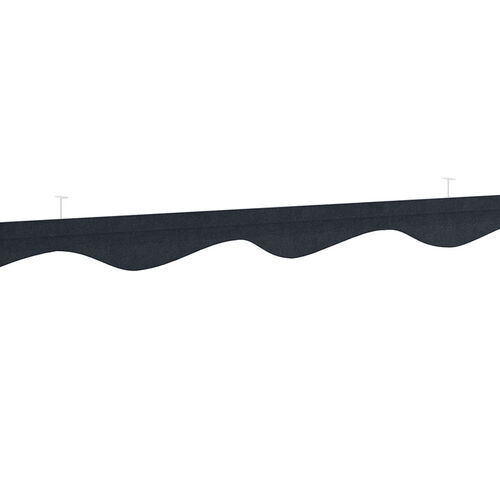

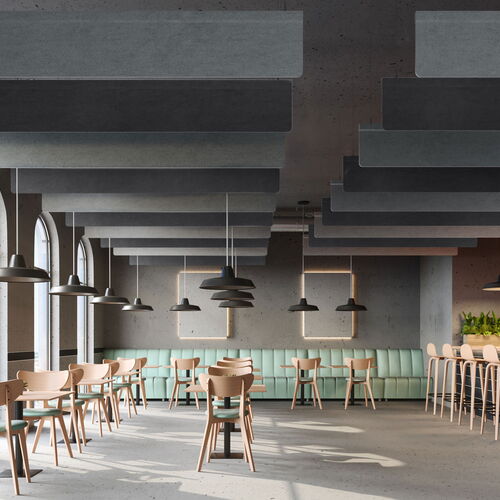

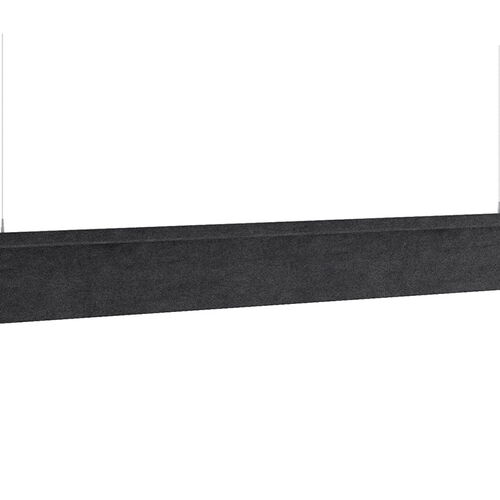

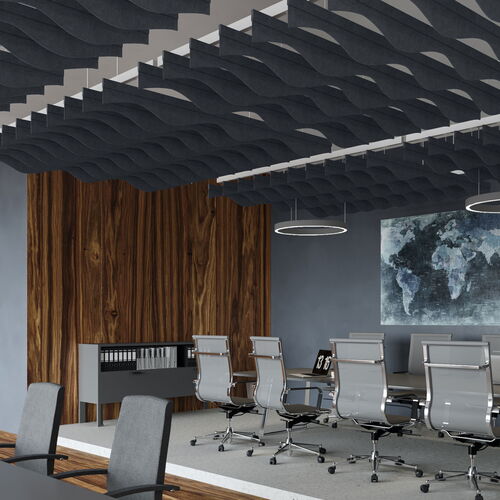

Vertex Slim PET Baffles
- A modern, elegant and sustainable baffle constructed from PET.
- NRC: .75
- Fire Rating: Class A per ASTM E-84
- Standard sizes: 48”x 12”; 48”x 16”; 48”x 24”; 96”x 12”; 96”x 16”; 96”x 24”
- Straight or wavy bottom edge
- Mounting options: Aircraft cable or threaded rod
Decibel Examples
When trying to enclose a piece a machinery, most people will know they want it "quieter," but can't put into acoustical terms the end result (or decibel reduction) they want to achieve. With our audio examples, you can actually hear the decibel differences compared to static pink noise.
Pink Noise
An example of a randomized static pink noise. Pink noise uses deeper sounds and lower sound waves.
3 dB
Just perceptible. 3dB reduction has a 18% reduction in the perceived volume and yet is just barely perceptible to the human ear.
6 dB
Noticeable. 6dB reduction has a 34% reduction in the perceived volume and is very noticeable to the human ear.
10 dB
Double/Halving. 10dB reduction has a 50% reduction in the perceived volume and sounds half as loud to the human ear.
20 dB
Much more/less. 20dB reduction has a 75% reduction in the perceived volume and most noticeable to the human ear.
